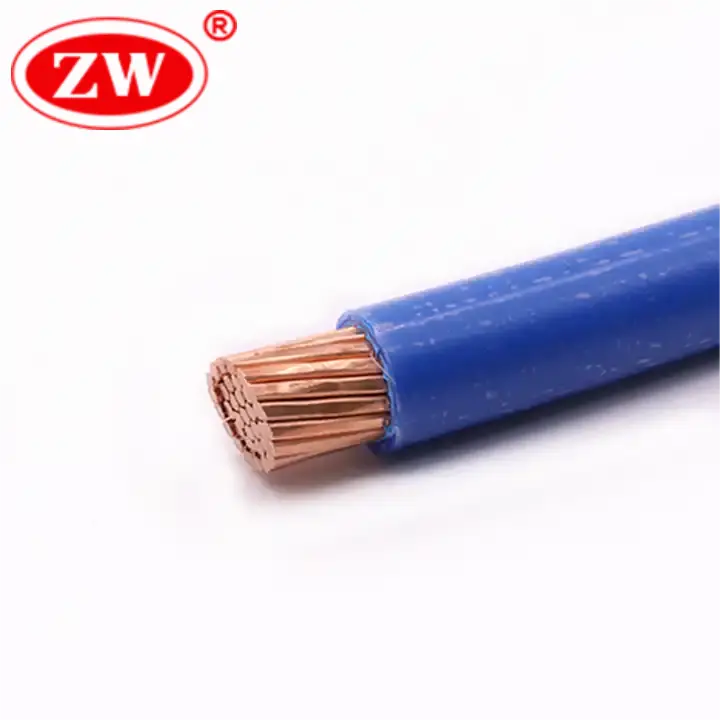

Stranded 100mm2 Thhn Wire

According to UL Standard
Approved by ISO, CE, SGS, UL
Place of Origin: Henan, China
Production Process: PVC+Nylon
HS Code: 8544492100
Color: red, black, green, blue, etc.
MOQ: 1000 Meters
Low Voltage

12.5 $ / Meter

5

100mm² THHN wire is a commonly used high-capacity building wire in commercial and industrial settings. Made of PVC-insulated copper conductors with nylon sheath, 100mm2 thhn wire is resistant to heat, moisture, and chemicals, and is ideal for use in conduits, cable trays for powering heavy-duty applications like services, feeders, and branch circuits. The outer jacket of thnn wire 100mm2 is available in various colors to aid in identification during installation and maintenance.

Conductor: 19 Strands
Insulation: PVC
Sheath: Nylon

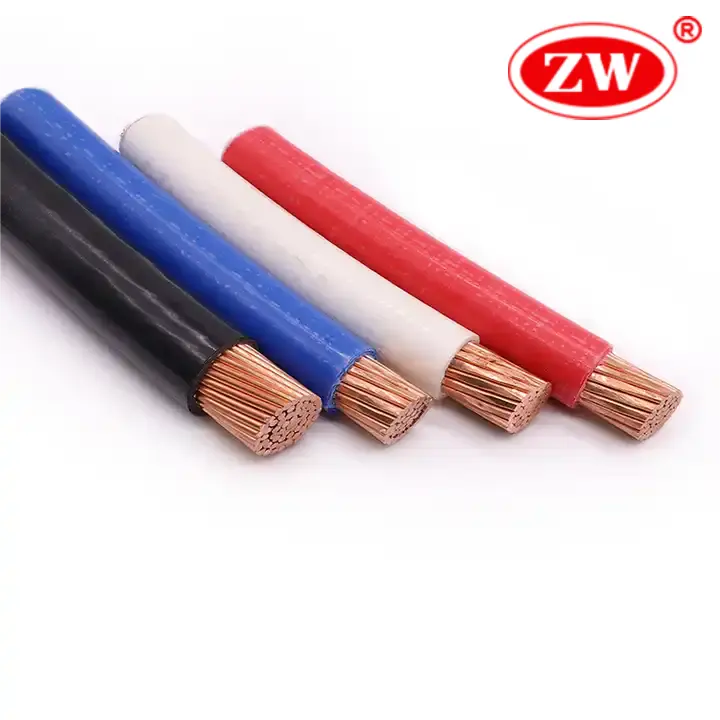

Sheath Color: Red, yellow, blue, green, black, and white, etc.
Temperature Range: -10°C – +90°C
Rated voltage: 600V
Weight: 1050 KG per KM

Nylon Jacket
PVC Insulation (color can be black, red, blue, green, white, orange, etc.)
Stranded Copper Conductor, conforms to ASTM B3, B8.

FAQ

What is the AWG equivalent of 100mm² THHN?

It falls between 3/0 AWG (85mm²) and 4/0 AWG (107mm²). In metric electrical designs, it is the standard specification used when the load exceeds the capacity of 80mm² (approx 3/0) but does not require the full bulk of 125mm² (approx 250 MCM).

What is the ampacity (current rating) of 100mm² THHN?

At 90°C in a raceway (conduit), 100mm² THHN is typically rated for 230 to 260 Amps (depending on local codes like PEC). It is most commonly paired with a 225 Amp or 250 Amp Main Circuit Breaker.

Is 100mm² THHN suitable for a residential service entrance?

Only for very large estates. Standard homes do not use this size. 100mm² is the standard service entrance wire for luxury mansions, small factories, or commercial buildings requiring a heavy-duty 200A to 250A service connection.
