High Flexible Trvv Cable
- According to IEC and BS Standard
- PVC Cable
- Approved by ISO, CE, SGS
- Place of Origin: Henan, China
- Number of Cores:2, 3, 4, 5
- HS Code: 8544492100
- Packing: 100 Meters
5
- Product Details

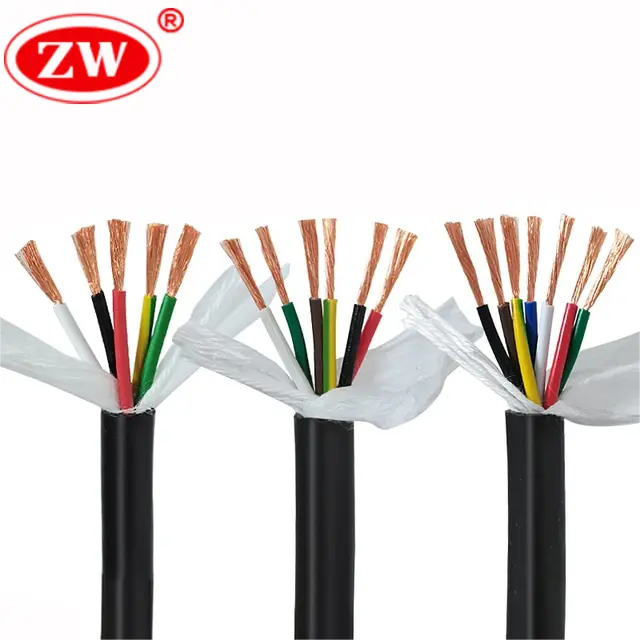

TRVV cable is a flexible drag chain cable. The ”T” in TRVV stands for ”Drag Chain,” indicating that it is highly flexible, can move back and forth with the drag chain, and is resistant to abrasion. ”RVV” indicates that trvv cables are multi-core, PVC-insulated, PVC-sheathed flexible cables. Trvv cables are typically used in industrial environments where durability and flexibility are required, such as automated production lines, cranes, CNC machine tools, warehousing equipment, and robots. Trvv cables can also be used in domestic and commercial environments and have a longer service life than RVV cables, the domestic power cords used in fixed installations. A smaller cross-sectional area of the conductors characterizes trvv electrical wire.
- Specification
- Rated voltage: 300/500V
- Test Voltage:2.5KV/5Min
- Temperature Range: Max 90°C, Min -20 °C

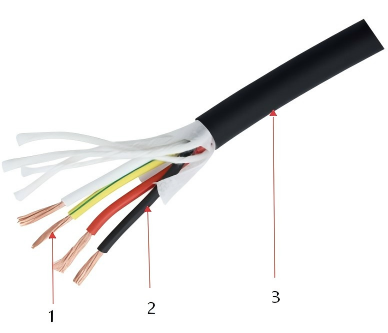

- Construction
- Conductor: Plain annealed copper Class 5
- Insulation: PVC
- Sheath Color: Black, Grey
- Parameter
|
Type
|
Specifications(mm2)
|
Standard weight 100m (kg)
|
external diameter(mm)
|
Conductor specification
|
|
TRVV
|
2*0.15mm2
|
1.43 KG
|
3.4mm
|
20/0.10AS
|
|
TRVV
|
3*0.15mm2
|
1.66 KG
|
3.6mm
|
20/0.10AS
|
|
TRVV
|
4*0.15mm2
|
2.07 KG
|
4mm
|
20/0.10AS
|
|
TRVV
|
2*0.2mm2
|
1.62 KG
|
3.6mm
|
26/0.10AS
|
|
TRVV
|
3*0.2mm2
|
1.92 KG
|
3.8mm
|
26/0.10AS
|
|
TRVV
|
4*0.2mm2
|
2.38 KG
|
4.2mm
|
26/0.10AS
|
|
TRVV
|
2*0.3mm2
|
2.04 KG
|
4mm
|
38/0.10AS
|
|
TRVV
|
3*0.3mm2
|
2.65 KG
|
4.3mm
|
38/0.10AS
|
|
TRVV
|
4*0.3mm2
|
3.3 KG
|
4.8mm
|
38/0.10AS
|
|
TRVV
|
2*0.5mm2
|
3.61 KG
|
5.5mm
|
45/0.12AS
|
|
TRVV
|
3*0.5mm2
|
4.54 KG
|
6mm
|
45/0.12AS
|
|
TRVV
|
4*0.5mm2
|
5.62 KG
|
6.6mm
|
45/0.12AS
|
|
TRVV
|
2*0.75mm2
|
4.6 KG
|
6.4mm
|
67/0.12AS
|
|
TRVV
|
3*0.75mm2
|
5.92 KG
|
7.2mm
|
67/0.12AS
|
|
TRVV
|
4*0.75mm2
|
7.91 KG
|
7.8mm
|
67/0.12AS
|
|
TRVV
|
2*1.0mm2
|
6.3 KG
|
7.2mm
|
89/0.12AS
|
|
TRVV
|
3*1.0mm2
|
7.79 KG
|
7.8mm
|
89/0.12AS
|
|
TRVV
|
4*1.0mm2
|
10.2 KG
|
8.6mm
|
89/0.12AS
|
|
TRVV
|
2*1.5mm2
|
8.06 KG
|
8mm
|
133/0.12AS
|
|
TRVV
|
3*1.5mm2
|
11.07 KG
|
9mm
|
133/0.12AS
|
|
TRVV
|
4*1.5mm2
|
13.51 KG
|
9.8mm
|
133/0.12AS
|
|
TRVV
|
2*2.5mm2
|
13.2 KG
|
10mm
|
222/0.12AS
|
|
TRVV
|
3*2.5mm2
|
16.9 KG
|
10.6mm
|
222/0.12AS
|
|
TRVV
|
4*2.5mm2
|
20.85 KG
|
11.3mm
|
222/0.12AS
|
