Best 10 Gauge Speaker Wire OFC
- According to IEC and BS Standard
- Approved by ISO, CE, SGS
- Place of Origin: Henan, China
- HS Code: 8544492100
- Packing: 100 Meters
- Number of Cores: 2
- MOQ: 1000 Meters
- Product Details

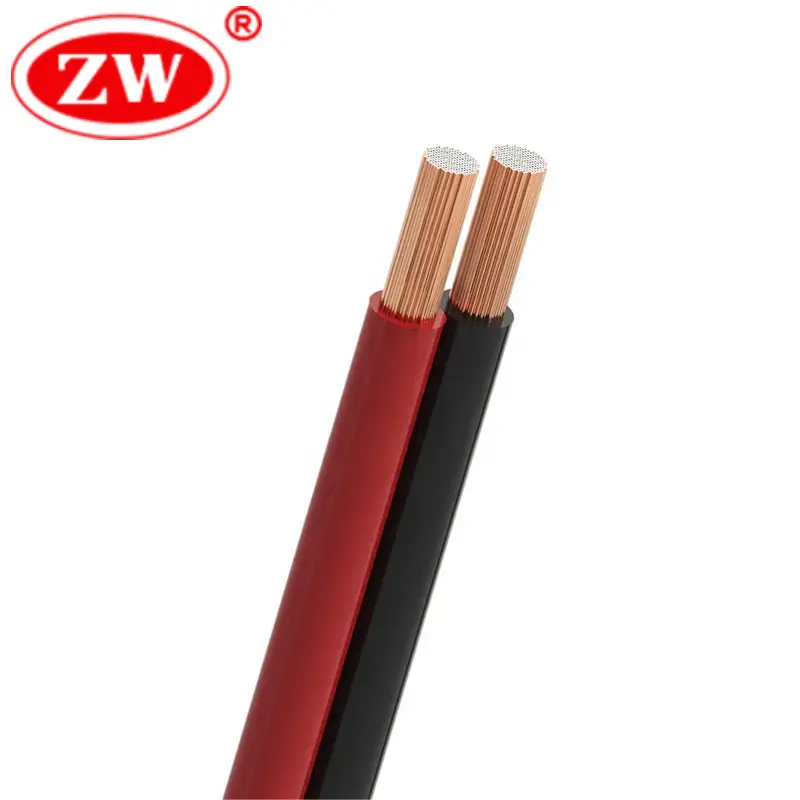

10 gauge speaker wire refers to a type of electrical wire that is used for the connection between the speaker and amplifier. 10 gauge ofc speaker wire in mm is 5.26mm². As a relatively thick and heavy-duty speaker wire consisting of stranded copper or copper-clad aluminum wrapped within PVC, the best 10 awg speaker wire has excellent electrical conductivity and signaling transmission capabilities over long distances, making it suitable for high-power speaker systems or high-end speakers than 12 gauge speaker wire and 14 gauge speaker wire.
- Specification
- Voltage Rating: 450/750V
- Test Voltage: 1.5kv /5Min
- Temperature Range: Min -20°C to Max 75 °C

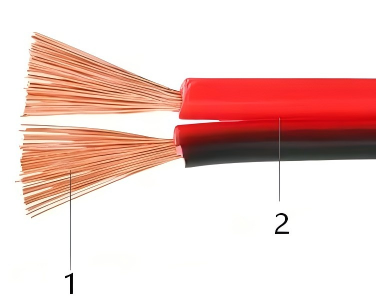

- Construction
- Conductor: Plain annealed copper Class 5
- Insulation Types: PVC
- Sheath Color: Black, Red, transparent
- Parameter
FAQ
When should I use 10 AWG speaker wire?
10 AWG is recommended for high-power systems (typically >200W RMS), long cable runs, or low-impedance speakers (4 Ohm). It minimizes resistance to ensure maximum power delivery to subwoofers or large tower speakers.
How does 10 AWG compare to 12 AWG?
10 AWG is thicker (lower gauge number) than 12 AWG. It has approximately 60% more cross-sectional copper area, resulting in lower electrical resistance and better damping factor, which controls the woofer movement more precisely.
What are the physical dimensions of 10 AWG speaker wire?
According to standard specifications, the nominal overall dimension for a parallel twin 10 AWG cable is approximately 5.5mm x 11.0mm. This is a thick cable that may require careful routing.
