PVC Insulation 36 Core Cable

According to IEC and BS Standard
PVC Cable
Approved by ISO, CE, SGS
Place of Origin: Henan, China
HS Code: 8544492100
Packing: 100 Meters

8.5 $ / Meter

5

36 core cable individually insulated conductors, typically made of copper, enclosed within a robust outer sheath. This design facilitates the simultaneous transmission of multiple signals or power currents, essential for intricate electrical wiring systems. 36 core control cables can be customized for flexibility and durability.

Voltage Rating: 300/500V
Test Voltage: 3KV/5Min
Temperature Range: Max 80°C, Min -20 °C

Conductor: Plain annealed copper Class 5
Insulation: PVC
Sheath: PVC

FAQ

How flexible is a 36-core control cable?

Despite its thickness, it is designed to be flexible. It typically uses Class 5 stranded copper conductors. However, due to the large overall diameter and the layers of bedding/insulation, the minimum bending radius is usually 10x to 15x the cable diameter, which is larger than cables with fewer cores.

Should I use shielded (CY) or unshielded (YY) 36-core cable?

Use CY (Shielded) if the cable is installed near power lines, VFDs, or sensitive data cables. With 36 cores, the risk of "crosstalk" or picking up external EMI is higher. Use YY (Unshielded) only in low-noise environments where mechanical flexibility is the priority.

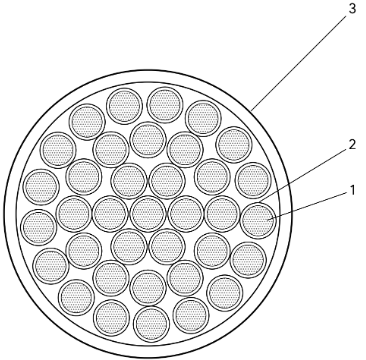

How are the cores arranged inside the cable?

The cores are stranded in concentric layers (layers of wires twisted around a center).
