Twinflex Battery Cable For Sale
- According to IEC and BS Standard
- PVC Cable
- Approved by ISO, CE, SGS
- Place of Origin: Henan, China
- Number of Cores:2
- HS Code: 8544492100
- Packing: 100 Meters
- MOQ: 500 Meters
3.2 $ / Meter
5
- Product Details

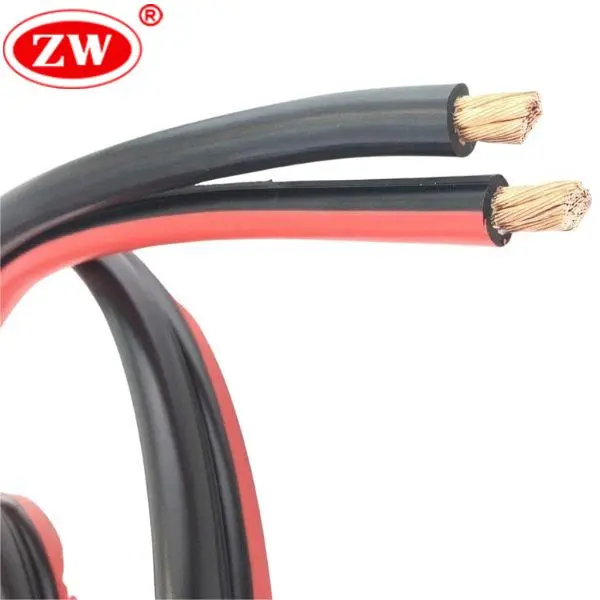

Twin battery cable, also known as twin-core battery cable or twinflex battery cable, is a type of electrical cable that consists of two conductors, typically used for connecting two batteries in a system, allowing them to charge or discharge simultaneously. The two conductors of twin core battery cable are made of finely stranded copper, each of which is individually insulated by PVC and then covered by an outer sheath. Twin battery cables are suitable for vehicles where multiple batteries need to be connected in parallel or series to provide higher power, and can increase the standby time of devices during power shortages.
- Specification
- Test Voltage:2.5KV/5Min
- Temperature Range: Max 90°C, Min -10 °C
- Nominal Voltage: 450/750V
- Construction
- Conductor: Plain annealed copper Class 5
- Insulation: PVC
- Sheath Color: Black, Red
- Parameter
FAQ
How flexible is the cable for routing around corners?
Our cable uses Class 6 (or Class 5) fine stranded copper, which offers high flexibility. This allows for tight bending radii, making it easy to route through firewalls and interior panels.
Can I run twin battery cable under a vehicle chassis?
Yes, specifically the Twin Sheathed variety. The outer jacket provides the necessary mechanical protection against road debris and vibration. It is recommended to further protect the cable using split loom tubing.
Is the outer sheath resistant to automotive fluids?
Yes, the outer PVC sheath is engineered to be resistant to oil, grease, diesel, acids, and UV radiation, ensuring longevity when exposed to harsh automotive environments.
