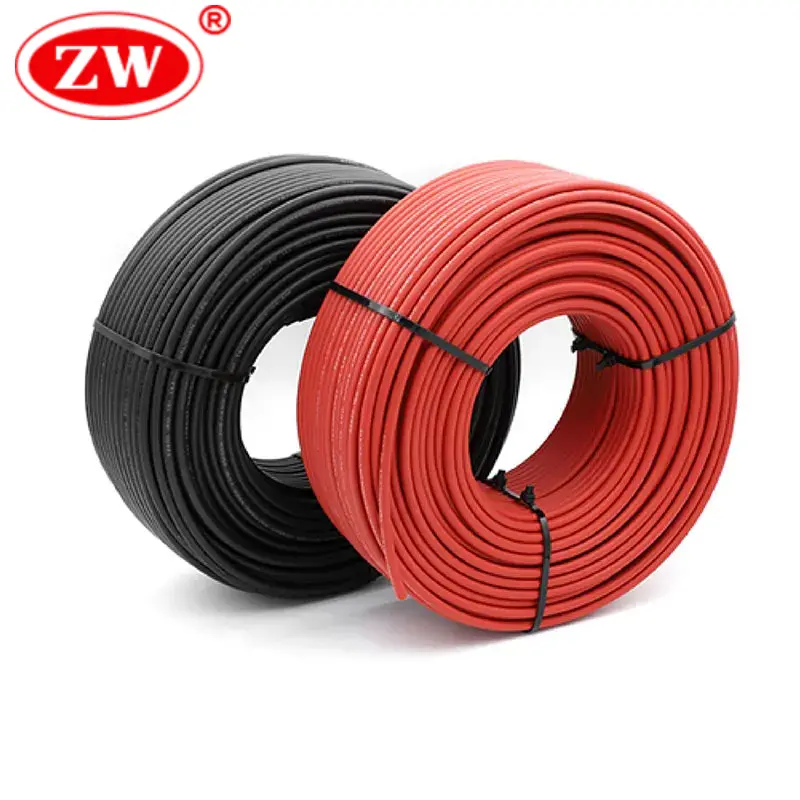

16mm TUV Solar PV Cable
- According to TUV Standard
- XLPO & XLPO Cable
- Approved by ISO, CE, TUV
- Place of Origin: Henan, China
- HS Code: 8544492100
- Packing: 100 Meters, 200 Meters, 500 Meters, 1000 Meters
- MOQ: 100 Meters
- Low Voltage
2.8 $ / Meter
5
- Product Details
16mm Solar Cable is designed for use in solar power systems, particularly for the cabling between solar modules and as an extension cable between the molded strings and the DC/AC inverter. It’s suitable for photovoltaic plants and solar parks, including gable and flat roof PV systems. ZW‘s 16 sq mm dc cable, typically made of dual XLPO insulated tinned copper with superior conductivity and corrosion, sun, aging, and flame resistance, making it a safe and high-grade option.
- Specification
- Nominal Voltage: 0.6/1KV
- Ambient Temperature Range: -20ºC to 90ºC
- Maximum Temperature at Conductor: 125ºC
- Service Life: 25 Years

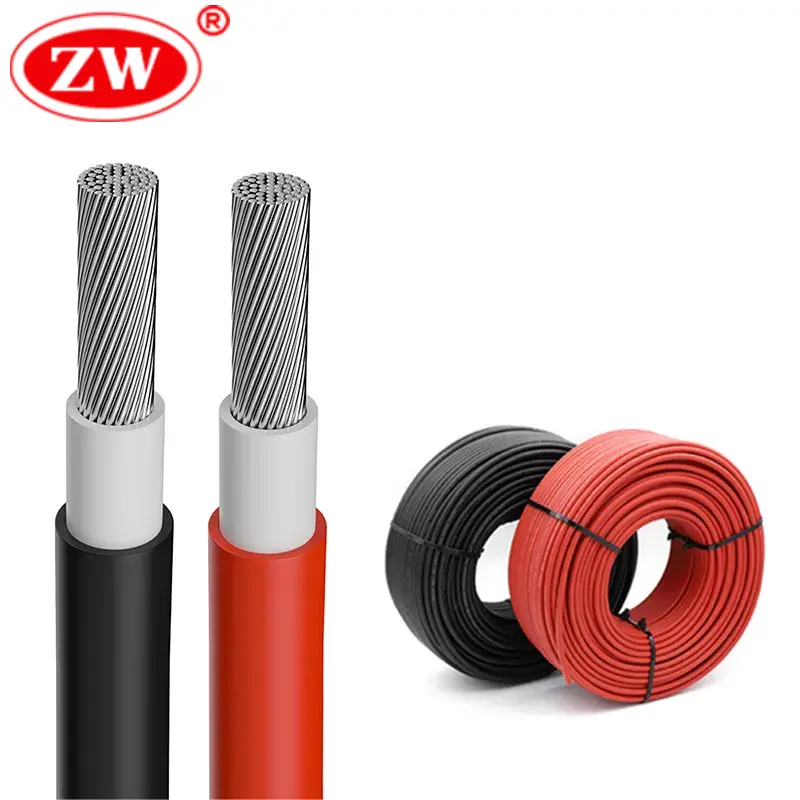

- Construction
- Conductor: Tinned Copper Class 5
- Insulation: XLPO
- Sheath: XLPO
- Parameter
| Construction | Conductor Construction | Insulation OD | Outer OD | Resistance Max | Current Carring Capacity |
|---|---|---|---|---|---|
| n×mm2 | n×mm | mm | mm | Ω/Km | A |
| 1×1.5 | 30×0.25 | 3.05 | 4.7 | 13.7 | 30 |
| 1×2.5 | 49×0.25 | 3.5 | 5.2 | 8.21 | 41 |
| 1×4.0 | 56×0.285 | 3.58 | 5.5 | 5.09 | 55 |
| 1×6 | 84×0.285 | 4.45 | 6.2 | 3.39 | 70 |
| 1×10 | 142×0.3 | 5.5 | 7.2 | 1.85 | 98 |
| 1×16 | 228×0.3 | 6.0 | 8.8 | 1.24 | 132 |
| 1×25 | 361×0.3 | 8.7 | 10.8 | 0.795 | 176 |
| 1×35 | 494×0.3 | 10 | 12.4 | 0.565 | 218 |
FAQ
What is a 16 mm² solar cable used for?
A 16 mm² solar cable is used to connect PV modules, combiner boxes, and inverters in medium- to high-current DC solar installations.
What is the current-carrying capacity of a 16 mm² solar cable?
Typically 70–95 A, depending on installation method, ambient temperature, and standard applied.
Is 16 mm² solar cable UV resistant?
Yes. It is UV-, ozone-, and weather-resistant, suitable for outdoor rooftop and ground-mounted PV systems.
