Medium Voltage (MV) Power Cable – 3.6/6kV, 6/10 kV,8.7/15 kV, 26/35 kV

Medium Voltage Cable Specifications & Categorization

1. Voltage Ratings

2. Construction Parameters

Conductor: Class 2 Compact Circular Stranded Copper (Cu) or Aluminum (Al). Compacting reduces the diameter and ensures a smooth surface for the semi-conductive screen.

Insulation

• XLPE (Cross-linked Polyethylene): Standard. Operating temp 90°C.
• TR-XLPE (Tree-Retardant): For wet environments to inhibit water tree growth.
• EPR (Ethylene Propylene Rubber): For applications requiring high flexibility.

Decision Help: Not sure which insulation fits your environment? Read our technical comparison: EPR vs. XLPE: Which is Right for Your Project?

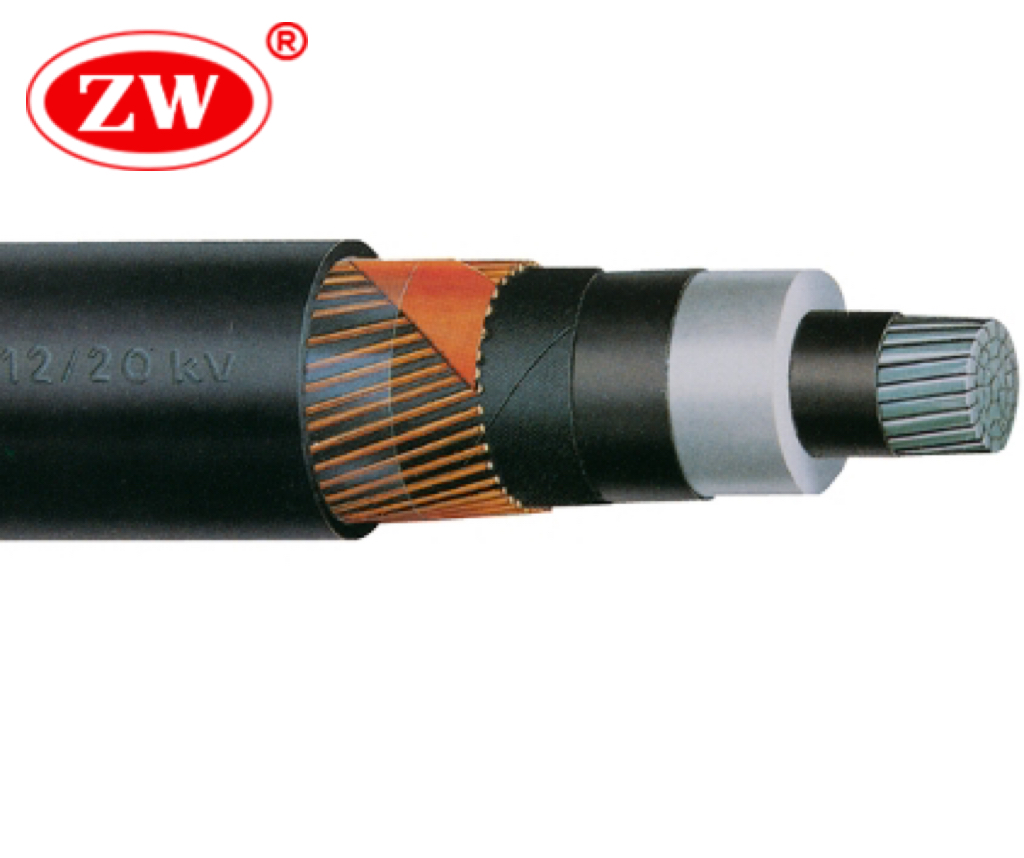

Screening: Extruded semi-conductive layers (Internal/External) + Metallic Screen (Copper Tape or Copper Wire).

Armoring:

• SWA (Steel Wire Armor): For Multi-core cables.
• AWA (Aluminum Wire Armor): For Single-core cables.
• STA (Steel Tape Armor): For lighter duty, non-tensile loads.

Sheath:

• PVC (Standard)
• PE (Water/Abrasion Resistant)
• LSZH (Low Smoke Zero Halogen)

Expert Insight: Single Core vs. Three Core

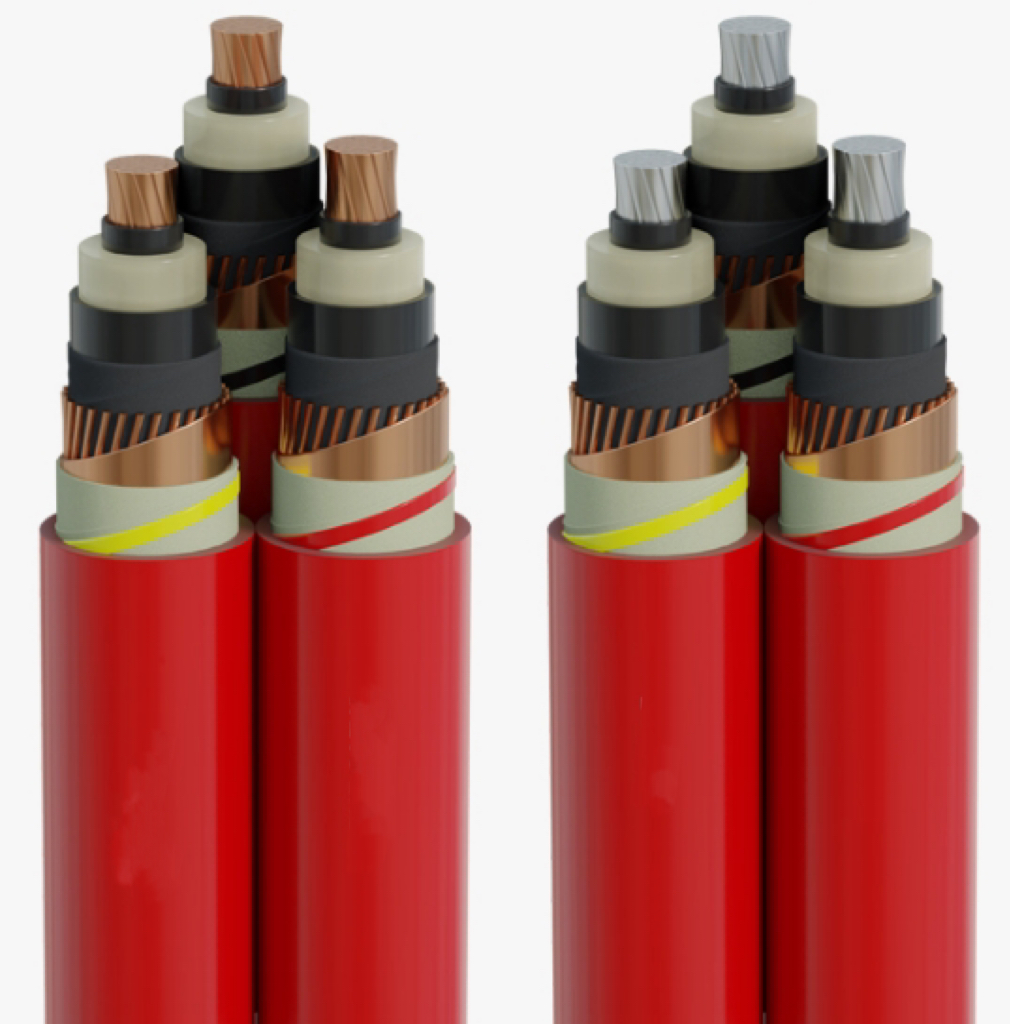

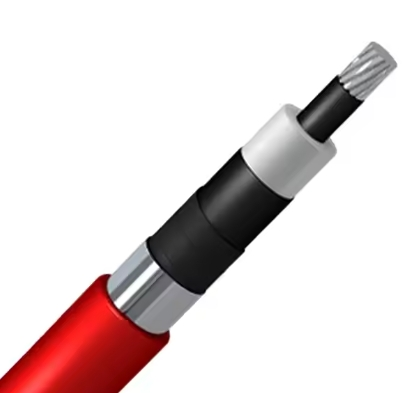

Single-core MV cable is typically used as three separate runs. It is preferred for higher currents, larger sizes, and longer routes due to better heat dissipation.

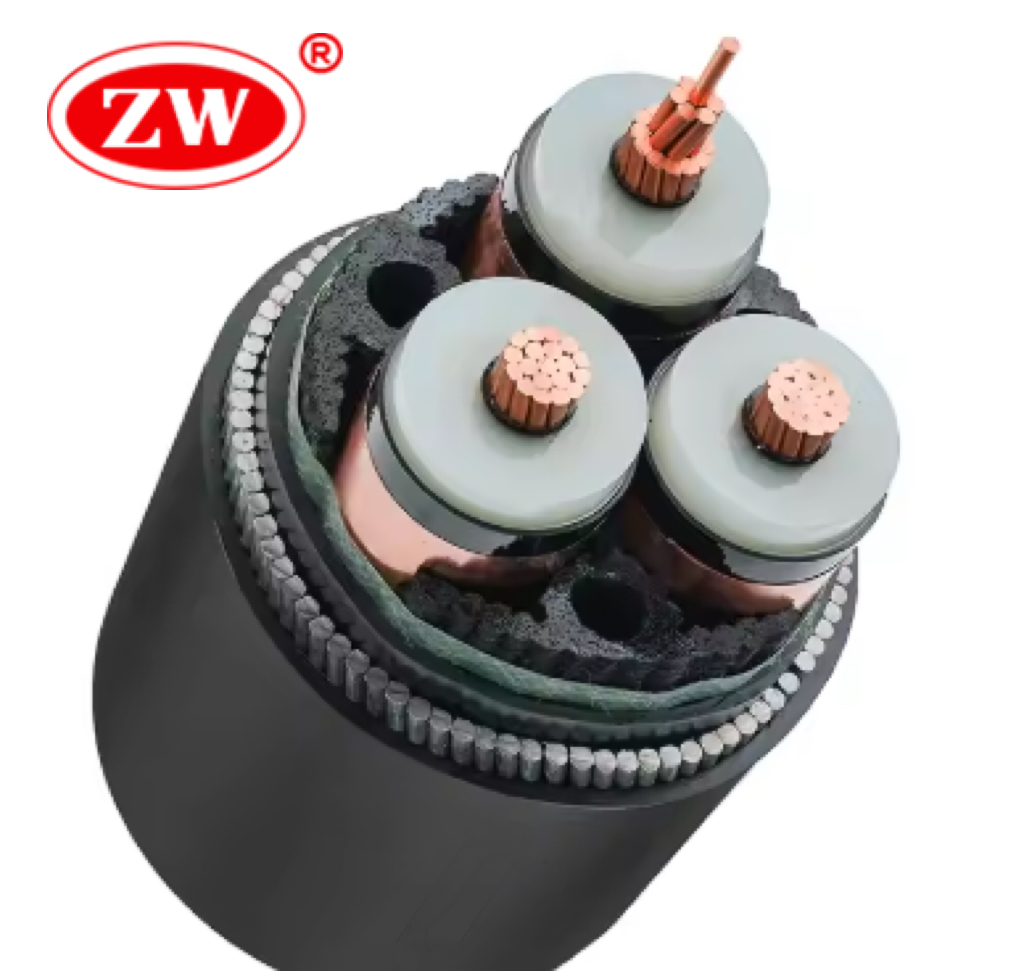

Three-core MV cable bundles all phases, making routing neater and faster. However, it is heavier and stiffer. Confirm limits early to prevent installation issues.

ZW Cable Technical Superiority

We understand that most premature cable failures originate from microscopic impurities or process inconsistencies during extrusion. To secure the dielectric integrity of every drum we ship, we enforce strict protocols. You can review our full quality assurance process in our Medium Voltage Cable Testing & Certification overview.Central Wires utilizes Triple Co-extrusion (CCV Line) technology. This process ensures that the three layers are applied simultaneously, eliminating voids and contaminants that cause electrical treeing, thereby extending the cable’s service life to over 30 years.

1. Manufacturing Precision: Triple-Layer Co-extrusion

Inconsistent insulation thickness or microscopic gaps between layers can distort the electric field, creating stress points that lead to premature failure.

One-Pass Process: We employ a Catenary Continuous Vulcanization line to extrude the conductor screen, insulation, and insulation screen simultaneously in a single crosshead.

Dry Curing: Unlike older steam-curing methods that introduce moisture, our dry nitrogen curing process ensures a void-free insulation structure with perfect concentricity. This guarantees a mathematically perfect bond between layers and maximizes the breakdown voltage margin.

2. Material Purity: Combating Water Trees

“Water Trees” are microscopic channels that grow in XLPE in the presence of moisture and electric stress, eventually leading to electrical trees and breakdown.

Source Control: We utilize 100% virgin XLPE compounds from tier-one chemical suppliers like Borouge and Dow.

Zero Recycling: We strictly forbid the use of recycled fillers or “reground” XLPE in our medium voltage lines. This purity ensures the dielectric strength remains consistent for the cable’s 30+ year lifespan.

3. Advanced Water Blocking Technology

For underground cables located in high water tables or flood-prone zones, standard PVC sheaths are not enough.

Longitudinal Blocking: Semi-conductive water-swellable tapes under the metallic screen absorb moisture and seal the cable instantly if the sheath is breached.

Radial Blocking: Aluminum-Copolymer Laminate (APL) tapes bonded to the sheath create a hermetic seal, making the cable totally impervious to moisture.

MV Cable Solutions

Our MV cables are engineered to meet the specific environmental demands of distinct sectors.

Renewable Energy (Wind & Solar):

• Combating environmental extremes, our 33kV collector cables feature high-grade UV and Ozone resistant sheathing for prolonged outdoor exposure. For wind turbines, we utilize torsion-tested conductors that absorb constant nacelle rotation without structural fatigue.

Petrochemical & Mining:

• In these sectors, chemical aggression and physical abuse are the norms. We integrate Hydrocarbon Resistant (MUD) sheaths and heavy-duty double-armoring to neutralize the impact of rock fall and prevent degradation from aggressive chemical agents.

Utility & Urban Distribution:

• Our 11kV and 33kV distinct grid solutions focus on installation efficiency. The insulation layers allow for rapid stripping and preparation, ensuring compatibility with standard accessories and reducing site labor during critical maintenance windows.

Railway & Metro:

• Tunnel environments require strict fire performance. Our cables utilize LSZH (Low Smoke Zero Halogen) compounds to minimize smoke density and toxicity while maintaining circuit integrity.

How to Size MV Cables in Real Projects

1. The “Environment” Defines the Rating

• The ampacity values in our catalogue assume ideal conditions. The Trap is assuming a 100A load equals a 100A cable. You must apply derating factors for Grouping, Soil Thermal Resistivity, and Burial Depth.
• Our Advice: If you are laying cables in ducts or dry, sandy soil, the heat dissipation is poor. You may need to upsize the conductor simply to compensate for the “thermal bottleneck,” even if the load current is low.

2. Short Circuit Capacity: The Real Minimum

• In MV networks, the minimum conductor size is often dictated by the Short Circuit Current rating (Adiabatic limit), not the continuous load. During a fault, temps spike instantly. If the copper cross-section is too small, insulation melts before the breaker trips.
• Our Advice: Always calculate the minimum cross-section using the adiabatic equa (S =I· √t/K). We frequently see clients requesting 35mm² cables for low-load feeds, which we must reject because they cannot physically withstand the network’s fault level.

3. Don’t Forget the Metallic Screen (Shield) Sizing

• This is the most overlooked aspect of MV cable sizing. The metallic screen must be capable of carrying the Earth Fault Current for the duration of a fault. The risk with standard “off-the-shelf” cables is that they often feature a nominal screen (e.g., 16mm²). If your network has a high earth fault level or slow protection relays, a standard screen will vaporize or burn through the outer sheath before the fault is cleared.
• Our Solution: We do not force you into standard sizes. We can customize the Copper Wire Screen (CWS) cross-section to match your specific earth fault requirements, ensuring the screen survives the fault without damaging the rest of the cable.

Installation Reality Check

The most accident-prone aspects of medium-voltage projects lie in construction details. While we engineer durability, poor handling causes 80% of failures. For a comprehensive site guide beyond these highlights, refer to our Medium Voltage Cable Installation guide.

1. Minimum Bend Radius (The “Kink” Risk)

Violating radius limits causes internal screen wrinkling and insulation stress, creating immediate Partial Discharge risks. Crews must prohibit “temporary hard bends” and strictly utilize guide rollers to mechanically enforce the radius at every turn to prevent invisible internal damage.

2. Pulling Tension & Sidewall Pressure

Excessive force or sharp duct edges will strip the sheath and deform the conductor. Tension must be applied to the conductors (via pulling eyes), not the sheath, while carefully managing sidewall pressure at bends to avoid crushing the cable structure against conduit walls.

3. End Sealing & Moisture Control

Moisture migrates rapidly through open cable ends via capillary action, permanently compromising the insulation. The “Cut and Cap” rule is mandatory: immediately seal all cut ends with heat-shrink mastic caps to prevent irreversible water ingress during storage or installation.

Critical Note: Poor sealing often leads to failures at the connection point later. Learn how to prevent this in our guide: Medium Voltage Termination: 10 Critical Errors to Avoid.

4. Direct Burial Backfill Raw backfill

containing stones or debris causes “point loading” that punctures the outer sheath over time. To ensure physical protection and thermal stability, cables must be bedded in distinct layers of sand or sieved soil, strictly avoiding direct contact with sharp aggregates.
