Wholesale 185mm Cable
- According to IEC and GB Standard
- PVC Cable
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- In Stock
- Number of Cores: 3
- HS Code: 8544492100
- Packing: 100 Meters
- MOQ: 100 Meters
- Low Voltage
- Product Details
185mm cable is a size for low voltage cable (IEC standard), where “185mm” means that the cross-sectional area of the electrical cable conductor is 185mm2. Although 185mm low voltage cable is used for wiring low voltage systems, 185mm2 cable can efficiently and reliably handle high power carriers and transmit large amounts of current for the application. 185mm single core cable is generally used for wiring in industrial, commercial and residential areas.
- Specification
- Diameter: 47.38mm
- Related Voltage: 600/1000V
- Test Voltage: 3.5KV/5Min
- Temperature Range: Max 85°C, Min -20°C
- Conductor Resistance: ≤ 0.0991（Ω/KM)
- Weight: 5.81KG/M

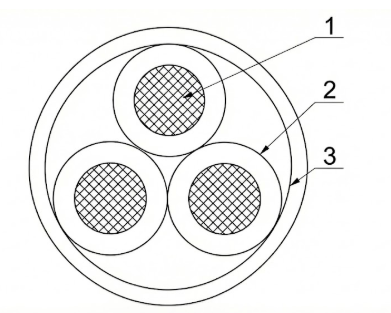

- Construction
- Conductor: Plain annealed copper Class 1 or Class 2
- Insulation: PVC
- Sheath Color: Red, Yellow, Blue, Green, Black
- Parameter
FAQ
What is a 185 mm² low voltage cable used for?
It is commonly used for main power distribution, feeders, substations, industrial plants, and large commercial buildings.
Is a 185 mm² cable suitable for underground installation?
Yes, when properly sheathed and armoured (if required), it is suitable for direct burial or duct installation.
What standards apply to 185 mm² low voltage cables?
Common standards include IEC 60502-1, GB/T 12706, and relevant local electrical codes.
