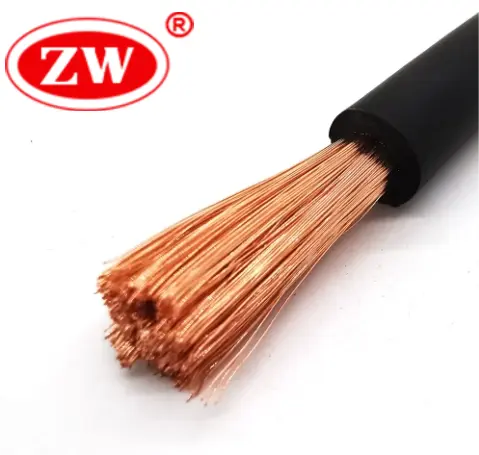

Flexible 1 /0 Battery Cable

  • According to IEC and BS Standard
  • PVC Cable
  • Approved by ISO,CE, SGS
  • Place of Origin: Henan, China
  • Number of Cores:1
  • HS Code: 8544492100
  • Packing: 100 Meters
  • MOQ: 500 Meters
6.3 $ / Meter

5

1/0  battery cable, integral to vehicular, maritime, and industrial electrical assemblies, stands out due to its robust gauge as defined by the American Wire Gauge (AWG) system. The 1/0 ga battery cable offers an even greater conductive cross-section, leading to lower resistance and more efficient power transmission. 1/0 battery cable’s insulation, made from advanced, heat-resistant polymers, provides superior insulation integrity. The core is composed of high-purity, finely stranded copper, ensuring excellent electrical conductivity and mechanical flexibility, vital for enduring the rigors of dynamic operational environments. When installing, it’s crucial to use specific tools and connectors suitable for its size and to adhere to all relevant safety standards.

1/0 Gauge Battery Cable Specification:

  • 1/0 gauge battery wire diameter:13.5
  • Conductor: Plain annealed copper Class 5
  • Insulation: PVC

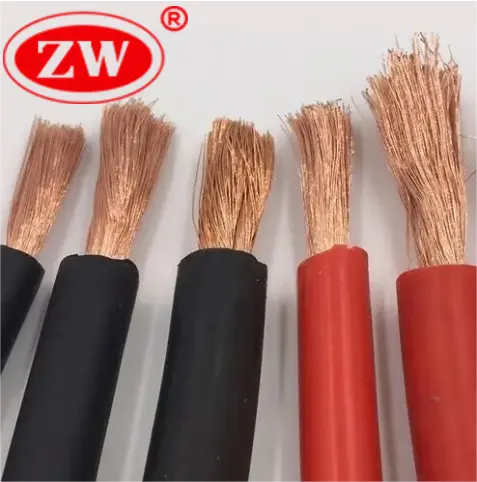

  • Sheath Color: Black, Red
  • Test Voltage:2.5KV/5Min
  • Temperature Range: Max 90°C, Min -10 °C
  • Conductor Resistance: ≤ 0.386(Ω/KM)
  • Weight: 490kg/km
