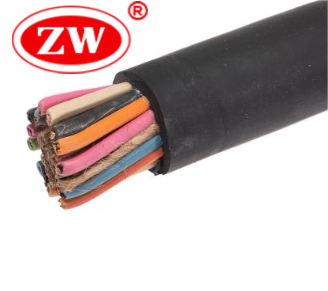

Electrical Flexible 24 Core Cable
- According to IEC and BS Standard
- PVC Cable
- Approved by ISO, CE, SGS
- Place of Origin: Henan, China
- HS Code: 8544492100
- Packing: 100 Meters
6 $ / Meter
5
- Product Details
24 Core Cable is engineered for intricate electrical setups, boasting twenty-four individually insulated high-conductivity copper conductors.24 Core wire handles multiple signals and power streams, making it essential for complex electrical wiring systems.
- Specification
- Voltage Rating: 300/500V
- Test Voltage: 3KV/5Min
- Temperature Range: Max 80°C, Min -20 °C

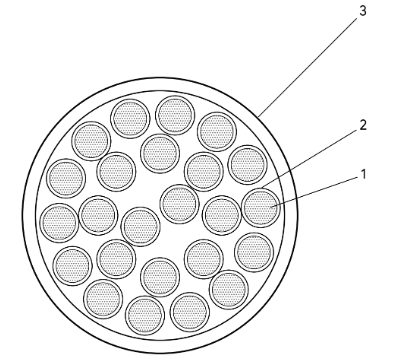

- Construction
- Conductor: Plain annealed copper Class 5
- Insulation: PVC
- Sheath: PVC
- Parameter
FAQ
How are the cores identified in a 24-core cable?
Standard 24-core cables use Black cores with White consecutive numbers (1-23) plus one Green/Yellow protective earth conductor to ensure easy and accurate termination.
What is the approximate Outer Diameter (OD) of a 24-core cable?
The OD depends heavily on the conductor cross-section. For 1.5mm², the OD is typically 18mm–22mm. For 2.5mm², it can be 23mm–26mm. Always check the specific datasheet
Should I choose Unshielded (YY) or Shielded (CY) 24-core cable?
If the cable carries sensitive signals (PLC data) or runs near VFDs and motors, you must use Shielded (CY) cable to prevent cross-talk and interference. For general power switching or simple relay control where EMI is not an issue, Unshielded (YY) is sufficient and more flexible.
