Ensure Safety with 185mm Armoured Cable

According to IEC and GB Standard
XLPE & PVC Cable
Approved by ISO,CE, SGS
Place of Origin: Henan, China
In Stock
Number of Cores:1,2,3,4(3+1),5(4+1,3+2)
HS Code: 8544492100

5

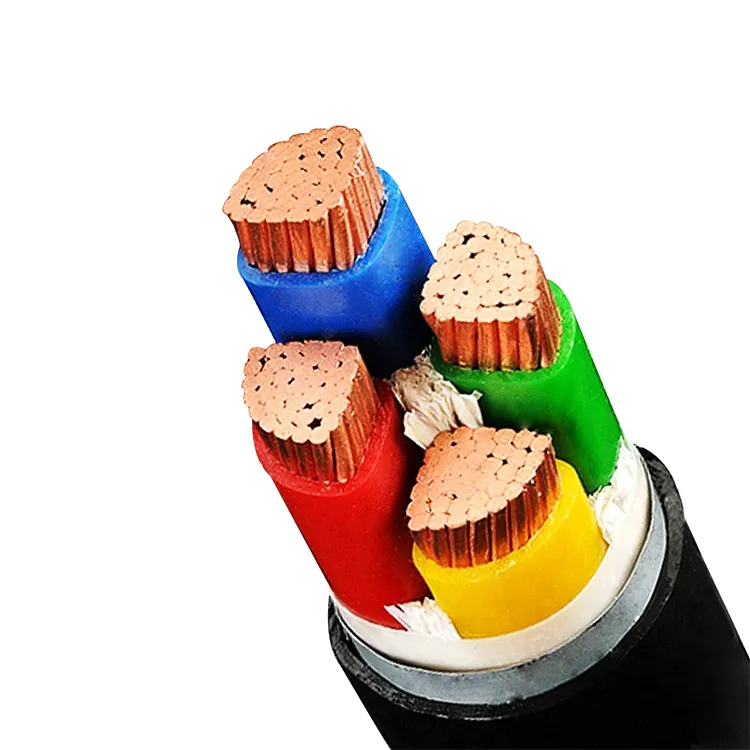

185mm armoured cable refers to electrical cable that cross section area is 185sqmm. 185mm single core cable designed to carry high electrical currents. The conductor can be copper or aluminum. The armored layer is steel tape or steel wire. 185mm armoured cable usually used in construction, power distribution, and industry.

185 sq mm cable current capacity: 440 Amps
Related Voltage: 0.6/1KV
Test Voltage:3.5KV/5Min
Temperature Range: Max 90°C, Min -10 °C
Conductor Resistance: ≤ 0.0991（Ω/KM)

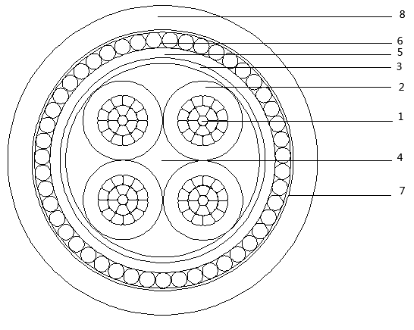

Conductor : Plain annealed copper Class 2
Insulation : XLPE(cross-linked polyethylene) rated at 90 °C
Binder tape: non-hygroscopic
Filler: ndygrcopic
Inner sheath : PVC (Polyvinyl Chloride)
Armored : Galvanized Steel Wire
Binder tape: non-hygroscopic
Sheath: PVC or FR-PVC (Black)

FAQ

Where is a 185mm armored cable used?

It is primarily deployed as a main supply feeder for large commercial and industrial infrastructure. Common applications include connecting transformers to main Low Voltage (LV) switchboards, powering heavy manufacturing machinery, and serving as the electrical backbone for hospitals, data centers, and high-rise buildings

What is the continuous current rating for 185mm 4-core XLPE?

In free air (on cable tray/ladder), it is rated for 406 Amps. When direct buried (ground 20°C), it is rated for 361 Amps. Always apply grouping factors if running multiple cables.

Can I order this with a Low Smoke (LSZH) sheath?

Yes. The standard part is PVC/SWA/PVC (BS 5467). For hospitals or stadiums, specify BS 6724 (LSZH) to comply with fire safety regulations.
