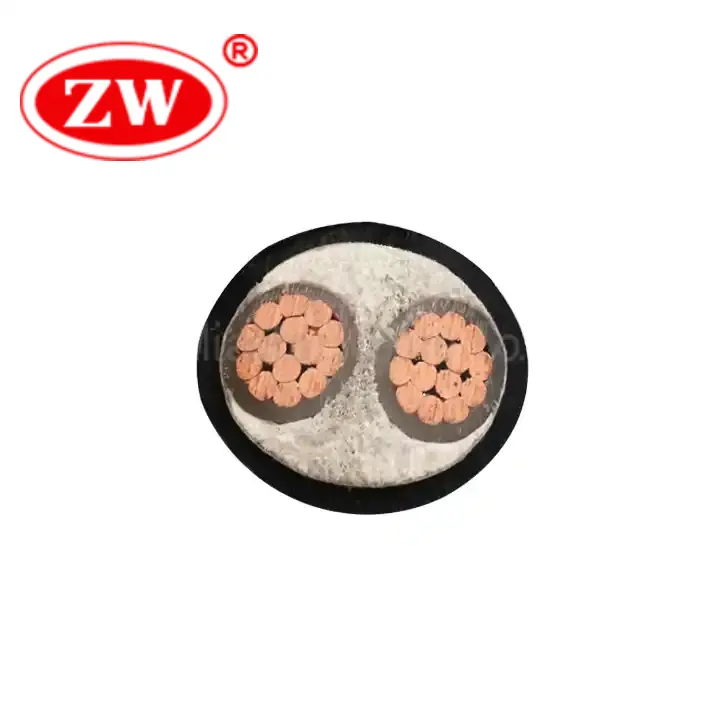

Low voltage 2 Core Cable PVC Insulation
- According to IEC and GB Standard
- PVC Insulation
- Approved by ISO, CCC, CE
- Place of Origin: Henan, China
- In Stock
- Number of Cores: Two
- HS Code: 8544492100
- Packing: 100 Meter
0.9~ 2 $ / Meter
5
2 core cable refers to electrical cable with two independent conductors inside, where the conductors are made of copper or aluminum and are wrapped by insulating layer (PVC or XLPE) to prevent electrical interference and ensure safety. Two core cable wires, also known as 2 core control cable, is commonly used in electrical and electronic applications that require a simple 2 core wire connection, like power distribution, low-voltage lighting. Common sizes range from 2 core cable 1mm to 2 core cable 10mm.
2
2 Core wire Specification：
- Conductor: Plain annealed copper Class 2
- Sheath Color: Black
- Temperature Range: Operating temperatures up to 90°C and short-circuit temperatures up to 250°C.
- Sheath: PVC
- Minimum Insulation Resistance at 20°C: 36.7 MΩ·km
- Operating Temperature: -15°C to 70°C
- Test Voltage: 3.5 kV for 5 minutes
2 core cable technical data
| Cross Section Area(mm2) | No. Diameter of Wires(No./mm) | Thickness of Insulation(mm) | Thickness of Sheath(mm) | Overall Diameter(mm) | Approximate Weight(KG/KM) |
| 2*4 | 7/0.85 | 1.0 | 1.8 | 12.7 | 217 |
| 2*6 | 7/1.04 | 1.0 | 1.8 | 13.8 | 274 |
| 2*10 | 7/1.35 | 1.0 | 1.8 | 15.7 | 383 |
| 2*16 | 7/1.7 | 1.0 | 1.8 | 17.8 | 533 |
| 2*25 | 7/2.14 | 1.2 | 1.8 | 21.2 | 786 |
| 2*35 | 7/2.52 | 1.2 | 1.8 | 23.5 | 1019 |
| 2*50 | 19/1.78 | 1.4 | 1.8 | 27 | 1344 |
| 2*70 | 19/2.14 | 1.4 | 1.9 | 30.8 | 1848 |
| 2*95 | 19/2.52 | 1.6 | 2.1 | 35.8 | 2528 |
