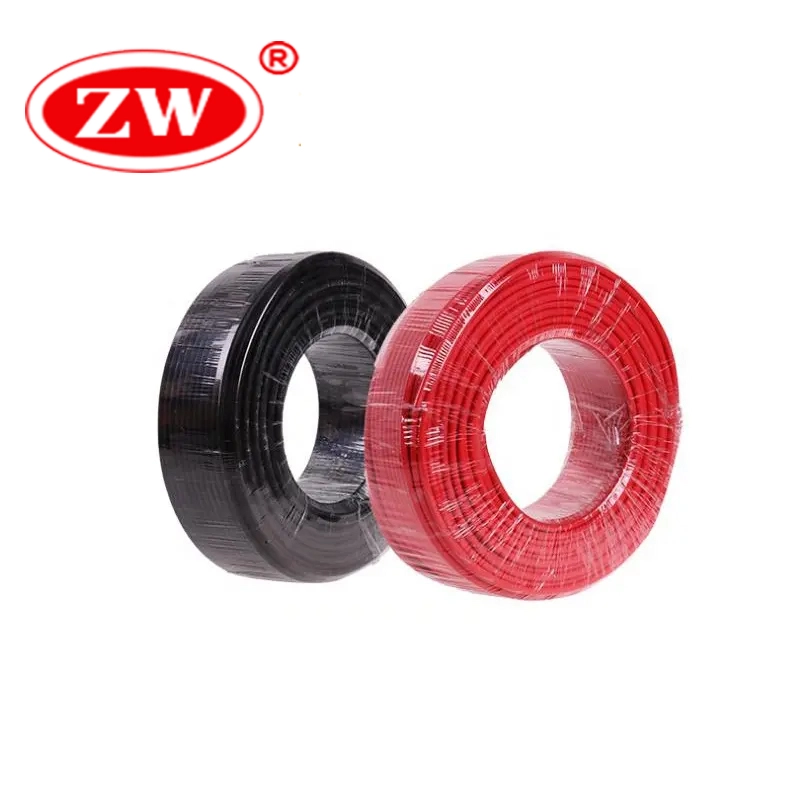

10 AWG (PV Wire) Solar Photovoltaic Wire 600V

According to TUV Standard
XLPO & XLPO Cable
Approved by ISO,CE, TUV
Place of Origin: Henan, China
In Stock
Number of Cores:1 and 2
HS Code: 8544492100
Packing: 100 Meters, 200 Meters, 500 Meters, 1000 Meters
MOQ: 1000 Meters
Low Voltage

1.4 $ / Meter

5

PV wire 10 AWG refers to a specific gauge of wire commonly used in photovoltaic (PV) systems. The cross-sectional area of the 10 AWG is about 5.26 mm2. 2kv PV wire is made of multi-stranded tinned copper wire. And the insulation and sheath of the wire are XLPO(Cross-linked polyolefin), ensuring its long-lasting performance in harsh environments. 10 pv wire is a very popular type of solar cable.

Related Voltage: AC 1KV, DC 1.5KV
Test Voltage:3.5KV/5Min
Temperature Range: -40ºC–90ºC Max. Temperature at Conductor 120ºC
Service Life: 25 Years

Conductor: Tinned Copper Class 5
Insulation: XLPO
Sheath: XLPO

FAQ

What is the primary application of 10 AWG PV Wire?

10 AWG PV Wire is designed for interconnecting photovoltaic (PV) modules in grounded and ungrounded systems. It connects solar panels to combiner boxes, inverters, and charge controllers, suitable for both residential and utility-scale solar arrays.

What standards does 10 AWG PV Wire typically meet?

High-quality PV Wire is listed under UL 4703 (Standard for Photovoltaic Wire). It often carries dual listings such as UL 854 (USE-2) and UL 44 (RHW-2)

What is the ampacity of 10 AWG PV Wire?

According to NEC Table 310.15(B)(16), 10 AWG copper wire at 90°C has an ampacity of 40 Amps.
