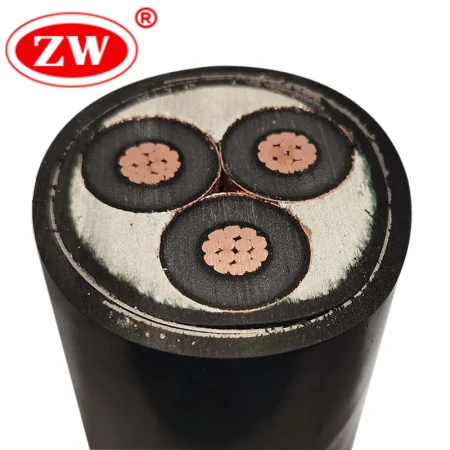

5KV Cable for sale at Great Price
- According to IEC and GB Standard
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- Number of Cores: 1 or 3
- HS Code: 8544492100
- MOQ: 500 Meters
10~90 $ / Meter
5
- Product Details
5kv cable refers to electrical cable used to transmit electrical energy and signals at medium voltage levels. “5kv” refers to medium voltage cable that can withstand a voltage of 5000v. 5kv medium voltage cable is typically found in industrial, utility substations and other environments where higher voltages are required to help people transmit power over long distances. 5kv unshielded cable is made with specific insulating materials to protect the electric cable from being damaged by the higher voltage.
- Specification
- Related Voltage: 5/8KV
- Test Voltage: 30.5KV/5Min
- Temperature Range: Max 90°C, Min -15°C

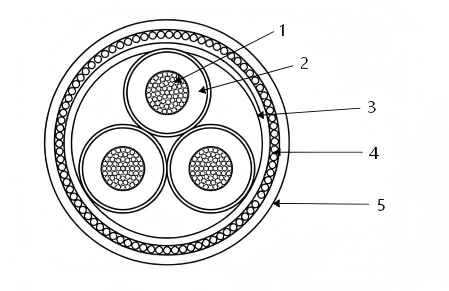

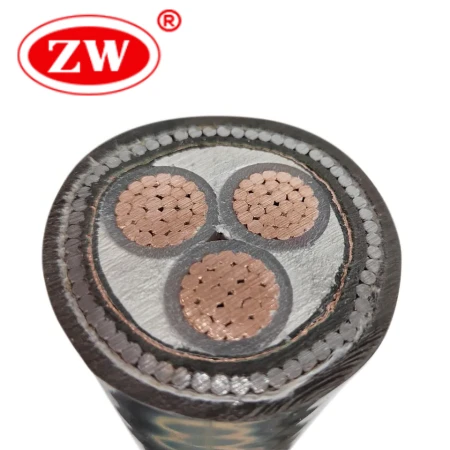

- Construction
- Conductor: Plain annealed copper Class 2
- Insulation: XLPE
- Shield Layer: Copper Tape
- Armoured Layer: SWA or STA
- Sheath Material: PVC
- Parameter
| nominal cross-section mm |
insulation thickness mm |
O.D. mm |
capacitance μF/km |
approx. ampacity (air) A |
approx. ampacity buried A |
reference weight of finished cable kg/km |
|||
| Cu | Al | Cu | Al | Cu | Al | ||||
| 3X25 | 2.5 | 46 | 0.22 | 129 | 100 | 155 | 120 | 2945 | 2480 |
| 3X35 | 2.5 | 49 | 0.25 | 156 | 120 | 185 | 144 | 3390 | 2739 |
| 3X50 | 2.5 | 52 | 0.26 | 184 | 143 | 218 | 169 | 4065 | 3135 |
| 3X70 | 2.5 | 55 | 0.28 | 229 | 177 | 267 | 207 | 4816 | 3513 |
| 3X95 | 2.5 | 60 | 0.30 | 275 | 213 | 319 | 247 | 5879 | 4129 |
| 3X120 | 2.5 | 63 | 0.32 | 316 | 246 | 363 | 282 | 6844 | 4611 |
| 3X150 | 2.5 | 67 | 0.33 | 363 | 281 | 412 | 319 | 7973 | 5182 |
| 3X185 | 2.5 | 71 | 0.35 | 408 | 317 | 460 | 357 | 9281 | 5838 |
| 3X240 | 2.5 | 77 | 0.38 | 178 | 372 | 531 | 413 | 11229 | 6763 |
| 3X300 | 2.5 | 83 | 0.40 | 546 | 425 | 598 | 466 | 14106 | 8524 |
FAQ
What standards govern the manufacturing of 5kV MV cables?
The primary standards are UL 1072 (Medium-Voltage Power Cables) and ICEA S-93-639 / NEMA WC 74 (Shielded Power Cables 5-46kV).
What is the typical operating voltage range for a 5kV cable?
5kV cables are designed for systems with phase-to-phase voltages between 2001V and 5000V. They are commonly used in 2.4kV and 4.16kV distribution systems.
Which insulation is better for 5kV: EPR or XLPE?
EPR (Ethylene Propylene Rubber): More flexible and has better resistance to thermal deformation (corona). Preferred for industrial plants. XLPE (Cross-linked Polyethylene): Lower dielectric loss and cheaper. Preferred for utility distribution and long runs.
