2 Gauge Battery Cable Red Color
- According to IEC and BS Standard
- PVC Cable
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- Number of Cores:1
- HS Code: 8544492100
- Packing: 100 Meters
- MOQ: 500 Meters
- Low Voltage
4.4 $ / Meter
5
- Product Details

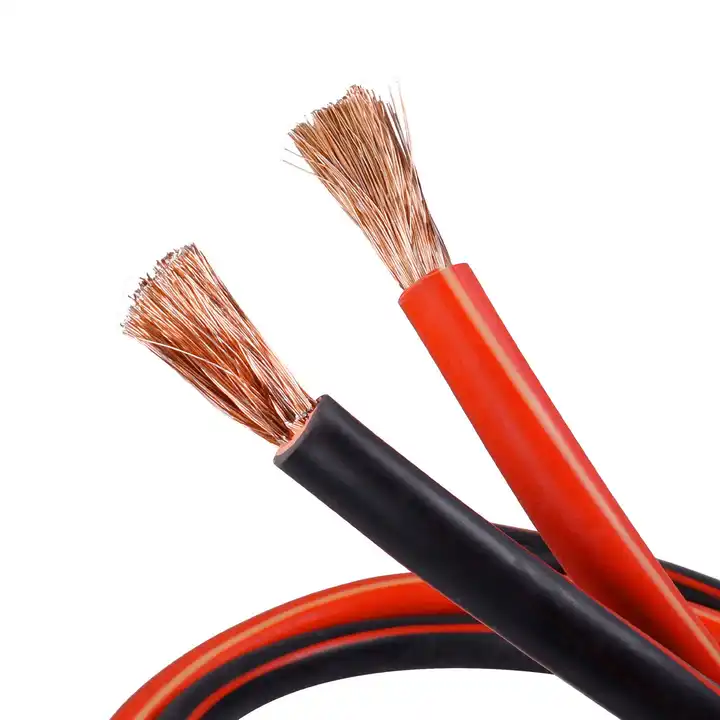

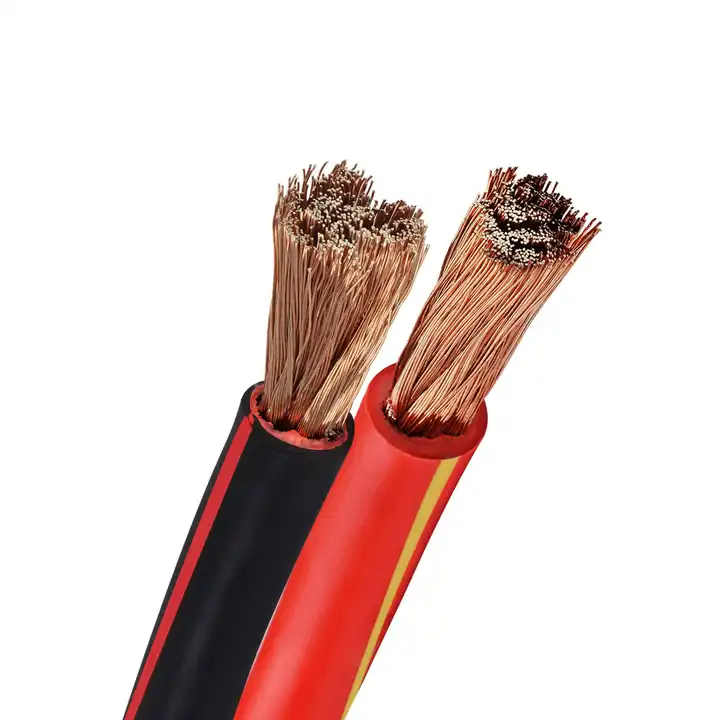

2 gauge battery cable is a specific gauge of battery cable used to connect batteries in automobiles, marine, or other electrical systems. 2 ga battery cable is made of fine stranding copper wires. The sheath is covered flexible PVC. 2 awg battery cable is rated up to 600 volts and is suitable for use in extreme temperatures.
Product features：
- Pure copper resists corrosion, extends cable life and reduces heat and voltage drop.
- Extremely flexible cable construction to fit easily through narrow areas of vehicle raceways
- PVC jacket resists abrasion, oil and chemicals
- Tin plating reduces oxidation and is compatible with ring terminals (Lug), etc.
Applied Range & Customization
- Automotive performance modifications can use high power audio/winch power cords – red and black polarity marking kits + terminal kits
- New Energy Systems Applications Solar array interconnections – UV reinforced white jacket option
- Marine Power Systems Application Marine battery interconnect jumper cables – Salt water corrosion resistant coating treatment
- Specification
- 2 gauge battery cable diameter: 9.8mm
- Test Voltage:2.5KV/5Min
- Temperature Range: Max 90°C, Min -10 °C
- Conductor Resistance: ≤ 0.53（Ω/KM)
- Weight: 330kg/km
- Construction
- Conductor: Plain annealed copper Class 5
- Insulation: PVC
- Sheath Color: Black, Red
- Parameter
| Cable Size (AWG) | Diameter (inches/mm) | Cross-Sectional Area (mm²) | Ampacity (Amps) | Max Length at 50A (12V, 2% Drop) | Max Length at 100A (12V, 2% Drop) |
| 10 Gauge | 0.1019 / 2.59 | 5.26 | 30-40 | 7.5 ft | 3.7 ft |
| 8 Gauge | 0.1285 / 3.26 | 8.37 | 40-50 | 9.4 ft | 4.7 ft |
| 6 Gauge | 0.1620 / 4.11 | 13.3 | 55-70 | 11.8 ft | 5.9 ft |
| 4 Gauge | 0.2043 / 5.19 | 21.2 | 70-100 | 18.8 ft | 9.4 ft |
| 2 Gauge | 0.2576 / 6.54 | 33.6 | 100-130 | 29.8 ft | 14.9 ft |
| 1 Gauge | 0.2893 / 7.35 | 42.4 | 130-150 | 37.6 ft | 18.8 ft |
| 1/0 Gauge (1/0) | 0.3249 / 8.25 | 53.5 | 150-170 | 47.4 ft | 23.7 ft |
| 2/0 Gauge (2/0) | 0.3648 / 9.27 | 67.4 | 170-200 | 59.6 ft | 29.8 ft |
| 3/0 Gauge (3/0) | 0.4096 / 10.40 | 85.0 | 200-230 | 75.2 ft | 37.6 ft |
| 4/0 Gauge (4/0) | 0.4600 / 11.68 | 107.2 | 230-260 | 94.8 ft | 47.4 ft |
FAQ
How many amps can a 2 gauge battery cable carry?
A 2-gauge (2 AWG) copper battery cable is generally rated to carry between 115 and 150 amps for standard application
How does 2 Gauge compare to 4 Gauge wire?
2 Gauge is thicker than 4 Gauge. It has roughly 60% more cross-sectional area than 4 Gauge (21.2 mm²), allowing it to carry more current and reduce voltage drop over longer runs.
Can 2 Gauge cable be used for welding applications?
Yes. In welding terms, this is often referred to as "35mm² welding cable." It is suitable for secondary leads on medium-duty welding machines (approx. 200A at lower duty cycles).
