95mm Welding Cable Cut By Meter

  • According to IEC and BS Standard
  • Approved by ISO,CE, SGS
  • Place of Origin: Henan, China
  • Number of Cores:1
  • HS Code: 8544492100
  • Packing: 100 Meters
  • In Stock
  • 450/750V
11 $ / Meter

5

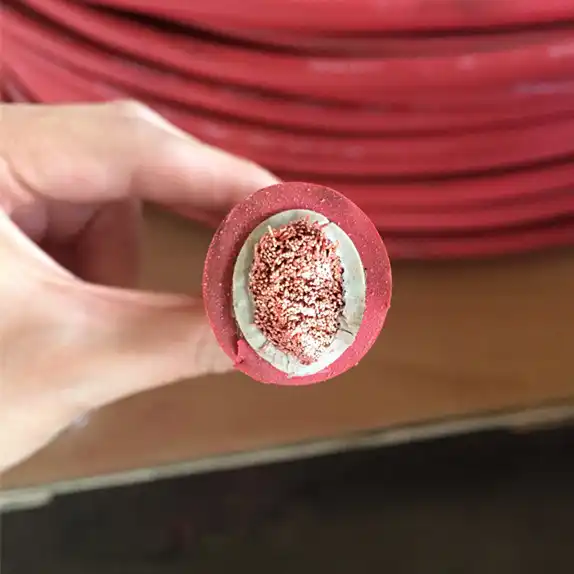

95mm welding cable is engineered for the conveyance of high-amperage currents between welding generators and electrodes. H01N2-D 1x 55 mm2 has cross-sectional area of 95mm², optimized for the high-current requirements inherent in welding processes. 95mm2 welding cable is composed of finely stranded, highly conductive copper, ensuring maximum flexibility and ease of handling in welding applications. Its insulation is typically fabricated from robust, heat-resistant materials such as Ethylene Propylene Rubber (EPR) or Neoprene, offering excellent resilience against thermal, mechanical, and environmental stressors common in welding scenarios.

95mm welding cable specification:

  • Conductor: Plain annealed copper Class 5
  • Insulation: Rubber
  • Sheath Color: Black and Red
  • Test Voltage:2.5KV/5Min
  • Temperature Range: Max 90°C, Min -40 °C
  • Conductor Resistance: ≤ 0.206(Ω/KM)
