11KV Medium Voltage Cable
- According to IEC and GB Standard
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- Number of Cores: 1 or 3
- HS Code: 8544492100
- MOQ: 500 Meters
10~120 $ / Meter
5

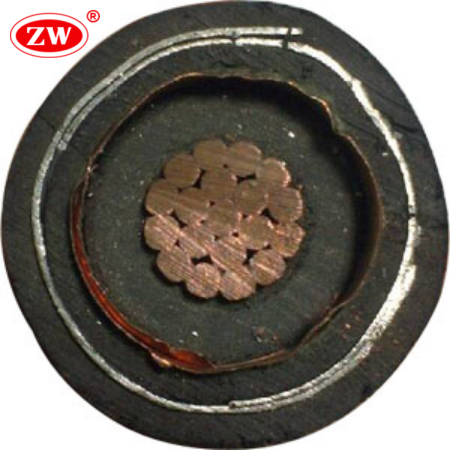

11kv cable is a medium voltage cable used to transmit power from a substation to individual electrical devices. The term “11kv” refers to the electrical cable voltage rating is 11,000v. 11kv single core cable typically use copper or aluminium conductors, XLPE insulation, metal shielding, metal armoring, and PVC sheath. 11kv xlpe cable applications include industry, commercial buildings, and renewable energy.
11KV cable specification
- Conductor: Plain annealed copper Class 2
- Insulation: XLPE
- Shield Layer: Copper Tape
- Armoured Layer: SWA or STA
- Related Voltage: 8.7/15KV
- Test Voltage: 30.5KV/5Min
- Temperature Range: Max 90°C, Min -20°C
11kv cable Technical Data
| nominal cross-section mm |
insulation thickness mm |
O.D. mm |
capacitance μF/km |
approx. ampacity (air) A |
approx. ampacity buried A |
reference weight of finished cable kg/km |
|||
| Cu | Al | Cu | Al | Cu | Al | ||||
| 3X25 | 5.5 | 55.5 | 0.22 | 129 | 100 | 155 | 120 | 3833 | 3476 |
| 3X35 | 5.5 | 57.9 | 0.25 | 156 | 120 | 185 | 144 | 4313 | 3702 |
| 3X50 | 5.5 | 61.1 | 0.26 | 184 | 143 | 218 | 169 | 5281 | 4311 |
| 3X70 | 5.5 | 64.9 | 0.28 | 229 | 177 | 267 | 207 | 5878 | 4399 |
| 3X95 | 5.5 | 68.8 | 0.30 | 275 | 213 | 319 | 247 | 6867 | 4770 |
| 3X120 | 5.5 | 72.2 | 0.32 | 316 | 246 | 363 | 282 | 7906 | 5192 |
| 3X150 | 5.5 | 75.8 | 0.33 | 363 | 281 | 412 | 319 | 9045 | 5554 |
| 3X185 | 5.5 | 79.9 | 0.35 | 408 | 317 | 460 | 357 | 10435 | 6070 |
| 3X240 | 5.5 | 86.4 | 0.38 | 178 | 372 | 531 | 413 | 13299 | 7532 |
| 3X300 | 5.5 | 91.6 | 0.40 | 546 | 425 | 598 | 466 | 15463 | 8169 |
