PVC Insulated H05vv-f 3g2 5

According to IEC and GB Standard
Approved by ISO,CCC, CE
Place of Origin: Henan, China
In Stock
Number of Cores: 3
HS Code: 8544492100
Packing: 100 Meters

5

H05vv-f 3g2 5 is an advanced, flexible power cable engineered for medium to high-load electrical applications in both residential and commercial settings. It features three copper conductors, each with a substantial cross-sectional area of 2.5 mm², enabling efficient power transmission for a range of electrical devices. Encased in durable PVC insulation and sheathing, this cable is designed for resilience and longevity, withstanding regular use in indoor environments. Rated at 300/500V, the h05vv-f 3g2 5 mm2 meets harmonized European standards, ensuring compliance with safety and quality benchmarks. H05VV-F 3*2.5mm2 is an excellent choice for installations that demand a combination of flexibility, robustness, and reliable electrical performance, making it a staple in modern electrical setups.

Related Voltage: 300/500V
Test Voltage: 1000V
Temperature Range: Max 70°C, Min -20 °C

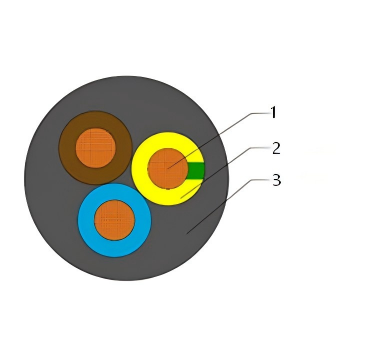

Conductor: Plain annealed copper Class 5
Insulation: PVC
Outer sheath: PVC

Sheath Color: Brown, Blue, Yellow-Green

FAQ

What is the current rating (ampacity) of H05VV-F 3x2.5mm²?

It is generally rated for 20 to 25 Amps in free air (at 30°C). However, if fitted with a standard household plug (Schuko or BS1363), the total capacity is often limited by the plug to 16 Amps or 13 Amps.

When should I choose 3x2.5mm² over 3x1.5mm²?

Choose 2.5mm² for long extension leads (over 25 meters) to prevent voltage drop, or for high-power equipment where you want to minimize heat generation in the cable under full load.

Is this cable resistant to oil and grease?

No. Standard PVC sheathing degrades when exposed to industrial oils. If wiring machinery in oily environments (like workshops), use H05VV5-F (Oil-Resistant PVC) or rubber cable.
