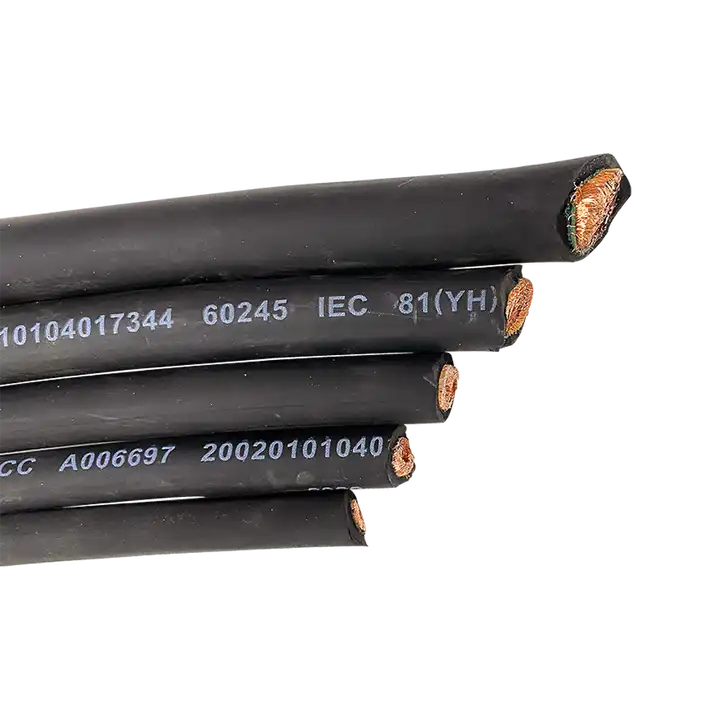

Flexible 2/0 Welding Cable

  • According to IEC and BS Standard
  • Rubber
  • Approved by ISO,CE, SGS
  • Place of Origin: Henan, China
  • Number of Cores:1
  • HS Code: 8544492100
  • Packing: 100 Meters
  • MOQ: 500 Meters
5.5 $ / Meter

5

2/0 welding cable is  used for welding and battery installation applications. 20 welding cable is highly flexible and rated for up to 600 volts. The cable is made of stranded bare copper Class K conductors. The insulation is made of EPDM rubber, which is abrasion-resistant and has good oil resistance. The cable is available in black colors. Welding Cable 2/0 is also know as 2/0 Welding Lead.

2 0 welding cable specification:

  • 2/0 welding cable diameter diameter: 14 mm
  • Conductor: Plain annealed copper Class 5
  • Insulation: PVC
  • Sheath Color: Black, Red
  • Test Voltage:2.5KV/5Min
  • Temperature Range: Max 90°C, Min -10 °C
  • Conductor Resistance: ≤ 0.26(Ω/KM)
  • Weight: 650kg/km
