8 awg solar cable UL Approved
- According to TUV Standard
- Approved by ISO,CE, TUV
- Place of Origin: Henan, China
- Number of Cores:1
- HS Code: 8544492100
- Packing: 100 Meters, 200 Meters, 500 Meters, 1000 Meters
- MOQ: 100 Meters
1.25 $ / Meter
5
- Product Details

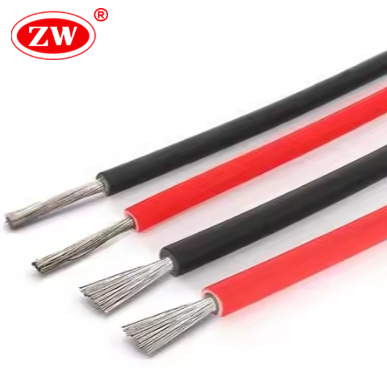

8 AWG solar cable is a type of solar cable that is commonly used in photovoltaic power systems. The ‘8 AWG’ is a reference to the AWG gauge. 8 gauge solar cables are typically constructed with a tinned copper conductor for excellent conductivity and resistance to corrosion. 8 awg solar wires are insulated and jacketed with materials like cross-linked polyethylene (XLPE) or Cross-linked Polyolefin(XLPO), which provide excellent resistance to UV. 8mm solar cable is for IEC Stranded.
- Specification
- Related Voltage: AC 1KV, DC 1.5KV
- Test Voltage:3.5KV/5Min
- Temperature Range: -40ºC–90ºC Max. Temperature at Conductor 120ºC
- Service Life: 25 Years
- UV resistance
- Construction
- Conductor: Tinned Copper Class 5
- Insulation: XLPO
- Sheath: XLPO
- Parameter
FAQ
When should I choose 8 AWG solar cable over 10 AWG?
You should upgrade to 8 AWG when your cable run is long (typically over 50-70 feet) to minimize voltage drop, or when combining multiple strings in parallel where the combined current exceeds the ampacity of 10 AWG (approx. 30-40A).
What is the ampacity of 8 AWG solar cable?
According to NEC Table 310.15(B)(16), 8 AWG copper is rated for 55 Amps at 90°C (wet/dry). In free air (not in conduit), it can handle higher currents (approx. 80A), but 55A is the safe design limit for most PV circuits.
Is 8 AWG solar cable UL listed?
Yes, 8 AWG solar cables in North America should be UL listed as PV Wire (UL 4703) or USE-2 (UL 854) to meet National Electrical Code (NEC) requirements for photovoltaic systems.
