3 Core 6mm SWA Cable Cut to Length

  • According to IEC and GB Standard
  • Approved by ISO,CE, SGS
  • Place of Origin: Henan, China
  • In Stock
  • Number of Cores:3
  • HS Code: 8544492100
4 $ / Meter

6mm SWA (Steel Wire Armoured) cable, known for its robustness, is designed primarily for challenging environments. 6mm armoured cable 2 core typically features copper conductors, XLPE insulation, and a PVC sheath, all protected by steel wire armor. This construction ensures durability, making the electrical cable suitable for external or underground installations. 6mm swa cable is capable of handling low to medium voltage applications and is resistant to environmental factors like moisture and UV exposure.6mm 3 core flex is flame-retardant, adheres to international safety standards, and is good for both residential and industrial power distribution where mechanical stress resistance is crucial.

  • 6mm 3 core armoured cable diameter 16.4mm
  • Related Voltage: 0.6/1KV
  • Test Voltage:3.5KV/5Min
  • Temperature Range: Max 90°C, Min -10 °C
  • Conductor Resistance: ≤ 3.08(Ω/KM)

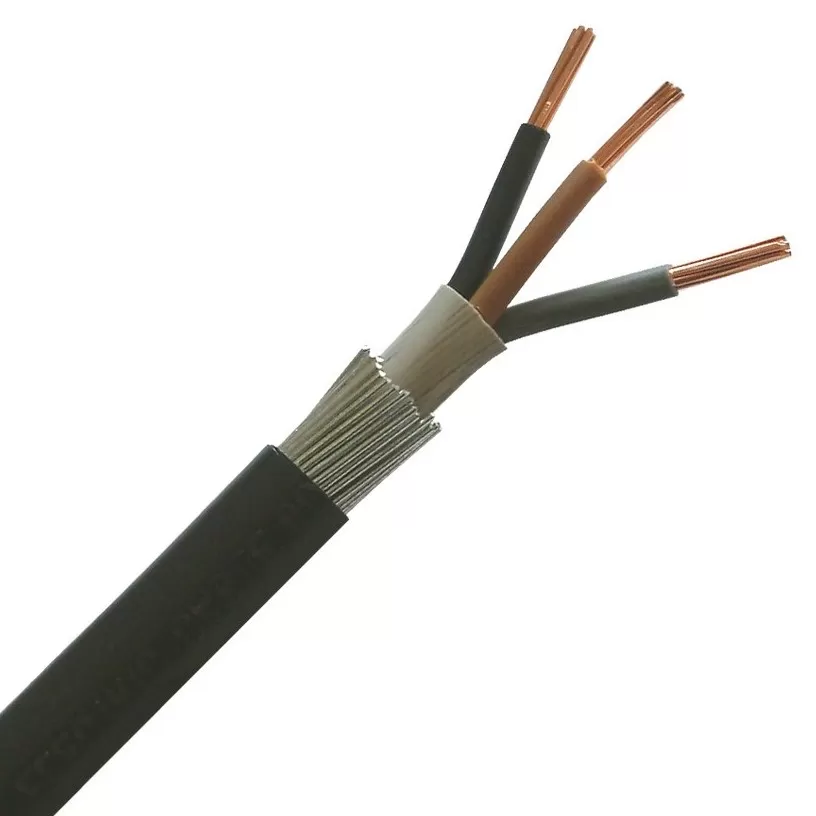

Steel Wire Armoured Cable construction
  1. Conductor : Plain annealed copper Class 2
  2. Insulation : XLPE(cross-linked polyethylene) rated at 90 °C
  3. Inner sheath : PVC (Polyvinyl Chloride)
  4. Armored : Galvanized Steel Wire
  5. Sheath : PVC or FR-PVC (Black)

FAQ

It is rated for approximately 53 Amps when clipped directly to a surface (single phase AC), and 44 Amps when buried directly in the ground, subject to voltage drop and ambient temperature corrections.
Yes. The galvanized steel wire armor provides mechanical protection, making it suitable for direct burial in free-draining soil or installation within cable ducts.
The minimum bending radius is 8x the Overall Diameter (O.D.). For a standard 6mm 3-core cable (approx. 16.5mm O.D.), the bend radius should be no less than ~132mm.
