150mm 4 core cable price
- According to IEC and GB Standard
- PVC Cable
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- In Stock
- Number of Cores: 4
- HS Code: 8544492100
- Packing: 100 Meters
- MOQ: 100 Meters
- Low Voltage
- Product Details

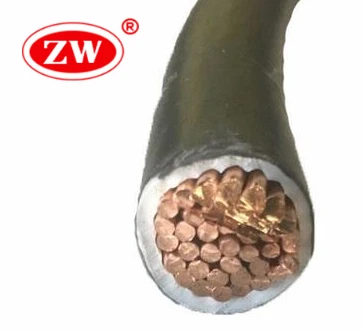

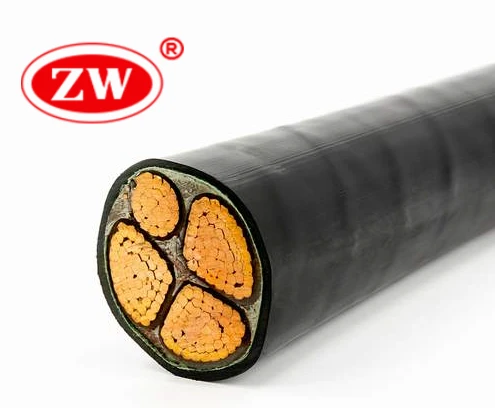

150mm cable refers to a electrical cable with a cross-sectional area of 150 square millimeters of conductor. 150mm low voltage cable are insulated and sheathed in PVC, and use copper or aluminium conductors. 150mm2 cable can carry high power currents, and they have good electrical insulation and heat resistance. Therefore, 150mm cables used in industrial and commercial applications.
- Specification
- Diameter: 47.35mm
- Related Voltage: 0.6/1KV
- Test Voltage: 3.5KV/5Min
- Temperature Range: Max 90°C, Min -15°C
- Conductor Resistance: ≤ 0.0991（Ω/KM)
- Weight: 6.11KG/M
- Construction
- Conductor: Plain annealed copper Class 1 or Class 2
- Insulation: PVC
- Sheath Color: Red, Yellow, Blue, Green, Black
- Parameter
FAQ
What is a 150 mm² low voltage cable used for?
A 150 mm² low voltage cable is commonly used for main power distribution, feeders, substations, industrial plants, and commercial buildings requiring high current capacity at 0.6/1 kV.
How much current can a 150 mm² low voltage cable carry?
Current-carrying capacity depends on conductor material, insulation, installation method, and ambient temperature, but copper 150 mm² cables typically carry 300–350 A under standard conditions.
What is the minimum bending radius for a 150 mm² cable?
For unarmoured cables, the minimum bending radius is typically 6× the overall diameter during installation, while armoured cables usually require 12× the overall diameter.
