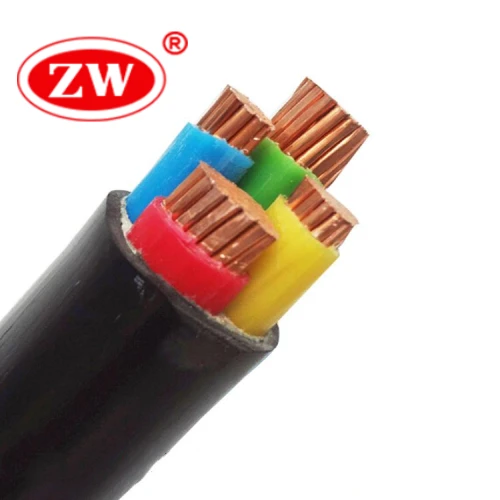

240mm Cable Sold by Meter

According to IEC and GB Standard
PVC Cable
Approved by ISO,CCC, CE
Place of Origin: Henan, China
In Stock
Number of Cores: 4
HS Code: 8544492100
Packing: 100 Meters
MOQ: 100 Meters
Low Voltage

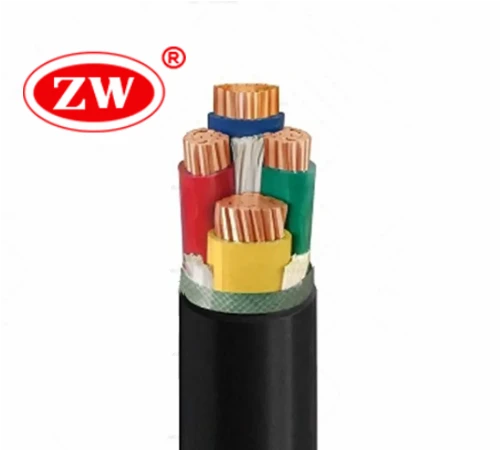

240mm cable refers to low voltage cable with a cross-sectional area of 240mm2 of conductors inside the electrical cable. Although classified as the low voltage cable, the amount of current and voltage that can be withstood by this large size cable. 240mm2 cable can usually be used in industrial and commercial power distribution systems.

Diameter: 59.52mm
Related Voltage: 600/1000V
Test Voltage: 3.5KV/5Min
Temperature Range: Max 90°C, Min -20°C
Conductor Resistance: ≤ 0.0754（Ω/KM)
Weight: 9.93KG/M

Conductor: Plain annealed copper Class 1 or Class 2
Insulation: PVC
Sheath Color: Red, Yellow, Blue, Green, Black

FAQ

What is the current carrying capacity (Ampacity) of this 240mm² cable?

For a 240mm² flexible copper conductor with PVC insulation, the typical current rating is approximately 400A to 450A in free air (30°C ambient) and 350A to 390A when buried directly in the ground (20°C soil).

Can this cable be installed directly in the ground without additional protection?

If the cable is unarmoured, it requires mechanical protection (such as conduit, ducting, or cable tiles) for direct burial. If the cable is Steel Wire Armoured (SWA), it offers mechanical protection and is suitable for direct burial in free-draining soil.

What is the Minimum Bending Radius for a 240mm² cable?

The standard bending radius is 12x the Overall Diameter (OD) for armoured cables and 8x the OD for unarmoured cables.
