BVR Cables in stock cut for length
- According to IEC and GB Standard
- Approved by ISO,CCC, CE
- Place of Origin: Henan, China
- In Stock
- Number of Cores: 1
- HS Code: 8544492100
- Packing: 100 Meter
0.4 $ / Meter
5
- Product Details

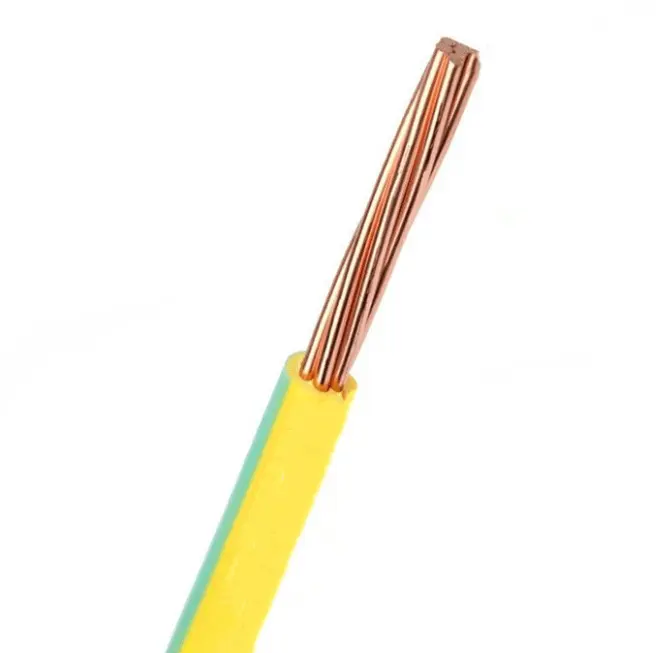

BVR cable is a type of building wire that is used for branch circuit wiring in homes and residential. The conductor types is class 2. So 1.5mm wire to 10mm wire are 7 strands copper wire. The outer sheath is pvc. BVR wire and bv cable are applicable to AC rated voltage 450/750V.
- Specification
- Fire Resistance
- Color-Coded Insulation
- Rated Voltage and Current
- Life Service is 70 Years.
- Construction
- Conductor: Plain annealed copper Class 1 or Class 2
- Insulation: PVC
- Sheath: Flame retardant PVC (Red, Yellow, Blue, Green, Yellow-Green)
- Parameter
| Core number/sectional area(mm²) | Core no./diameter(mm) | Outer diameter(mm) | Weight (kg/km) | 20℃conductor resistance(Ω/km) | ||
| Cu | Al | Cu | Al | |||
| 1×1.5(Class 1) | 1/1.38 | 3.2 | 20.3 | 12.1 | ||
| 1×1.5(Class 2) | 7/0.52 | 3.3 | 21.6 | 12.1 | ||
| 1×2.5(Class 1) | 1/1.78 | 3.9 | 31.6 | 17 | 7.41 | 11.80 |
| 1×2.5(Class 2) | 7/0.68 | 4.0 | 34.8 | 7.41 | ||
| 1×4(Class 1) | 1/2.25 | 4.4 | 47.1 | 22 | 4.61 | 7.39 |
| 1×4(Class 2) | 7/0.85 | 4.6 | 50.3 | 4.61 | ||
| 1×6(Class 1) | 1/2.76 | 5.0 | 50.3 | 29 | 3.08 | 4.91 |
| 1×6(Class 2) | 7/1.04 | 5.2 | 53.7 | 3.08 | ||
FAQ
What is the difference between BV and BVR cable?
Structurally, BV wire consists of a single solid copper strand, making it rigid and difficult to bend.1 In contrast, BVR wire is composed of multiple strands of fine copper wires.1 This multi-stranded design makes BVR significantly softer and more flexible
Where is BVR cable most commonly used?
It is primarily used in switchboards, control panels, and distribution boxes. Its flexibility allows electricians to route wires through narrow trunking and bend them around components without stressing the connection points or damaging the cable.
What is the voltage rating of BVR cable?
The standard voltage rating for BVR wire is 450/750V.
