4mm, 6mm Twin Solar Cable

  • According to TUV Standard
  • XLPO & XLPO Cable
  • Approved by ISO, CE, TUV
  • Place of Origin: Henan, China
  • HS Code: 8544492100
  • Packing: 100 Meters, 200 Meters, 500 Meters, 1000 Meters
  • MOQ: 100 Meters
  • Low Voltage

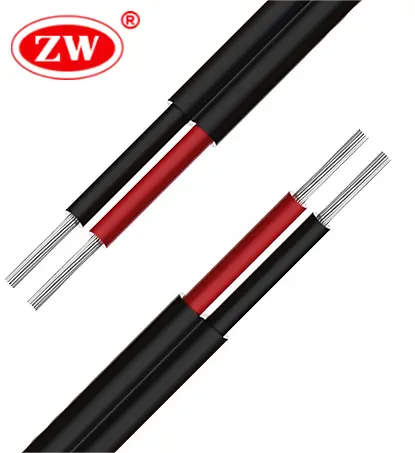

Twin Solar Cable, also known as duplex solar cable, consists of two insulated tinned copper conductors – one positive and one negative – closely bonded and enveloped within a single XLPO sheath. This configuration is designed to simplify installation and increase efficiency by merging necessary electrical connections into a single, cohesive unit, and can minimize electromagnetic interference. 2 core solar cable’s adaptable nature, coupled with adherence to rigorous industry standards like TUV and UL.

Twin Solar Cable Specification

  • Nominal Voltage: 0.6/1KV
  • Ambient Temperature Range: -20ºC to 90ºC
  • Maximum Temperature at Conductor: 125º
  • Conductor: Tinned Copper Class 5
  • Insulation and Sheath: XLPE
  • Color: Black, Red.
  • Service Life: 25 Years

FAQs About Twin Core Solar Cable.

Twin core solar cables differ from single solar cables primarily in their construction and application.

  • Twin solar cables contain two insulated conductors within one cable, which makes them highly suitable for compact and streamlined setups. They’re commonly used in tight or complex residential and smaller-scale solar projects.
  • Single solar cable provides more flexibility in routing, and can be more versatile but may lead to a slightly more complex and time-consuming installation process.

In summary, the choice between twin and single solar cables depends on the specific requirements of the solar installation, including the layout, space constraints, and the scale of the project.

The advantages of using twin solar cables include:

  • Space Efficiency: Their dual-conductor design within one cable makes for a compact installation, particularly beneficial in residential and small-scale solar projects.
  • Reduced Electromagnetic Interference: Dual conductor’s current flow balance helps minimize electromagnetic interference.
  • Installation Convenience: The integration of two conductors in one cable simplifies the installation process, making it quicker and more efficient.
  • Durability: Made from robust materials like XLPE, 2 core solar cables can withstand harsh environmental conditions like high temperatures and UV radiation and can last over 25 years.

These features make twin solar cables a practical choice for various solar installation needs, combining functionality with ease of use.

Yes, twin-core solar cables come in various sizes, typically measured in cross-sectional area (e.g., 4mm² twin solar cable, 6mm² twin core cable, 10mm²). The size needed depends on the current requirements and length of the cable run in the solar power system. For any questions about twin core solar cable, including product selection and accurate pricing, ZW Cable has you covered.
