18 Gauge Hook up Wire

  • According to IEC and BS Standard
  • Approved by ISO, CE, SGS
  • Place of Origin: Henan, China
  • Packing: 100 Meters
  • Number of Cores: 1
  • MOQ: 1000 Meters

18 awg hook up wire is an electrical wire used for electrical connections in low voltage systems, “18 awg” means the conductor size of 18 in America wire gauge(awg), which is equivalent to IEC standard size 0.81 mm². 18 awg hook-up wire  is generally insulated with PVC for easy termination; the conductor is stranded or solid copper or tinned copper material with high conductivity and oxidation resistance. Generally, 18 hook up wire is insulated with PVC, which is easy to terminate; the conductor is stranded or solid copper or tinned copper, which is highly conductive and oxidation-resistant. 18 awg stranded wire is flexible, abrasion-resistant and chemical-resistant, which is suitable for the wiring of some electronic products or electrical appliances.



  • Voltage Rating: 300V
  • Test Voltage: 3KV/5Min
  • Temperature Range: Max 260°C, Min -40 °C

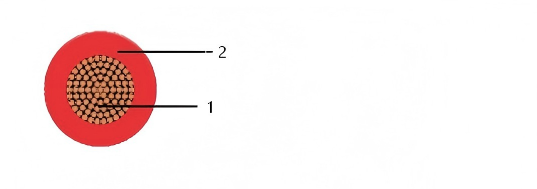

ul1007 hook up wire construction
  1. Conductor: Plain annealed copper Class 5/Tinned Annealed Copper
  2. Insulation: PVC, XLPE, FEP, PTFE
  • Sheath Color: Black, Red, Blue, Yellow, Green

FAQ

18 gauge hook-up wire is commonly used in low voltage applications like control panels, lighting circuits, and home electronics.
18 gauge wire typically carries up to 10 amps depending on insulation type and temperature conditions.
Common insulation materials for 18 gauge hook-up wire include PVC, Teflon, and Silicone.
