Understanding 7 Way Trailer Wire

  • According to UL Standard
  • PVC &PVC Sheath
  • Approved by CE, UL
  • Place of Origin: Henan, China
  • Number of Cores:7
  • HS Code: 8544492100
  • MOQ: 1000 Meters
  • Low Voltage

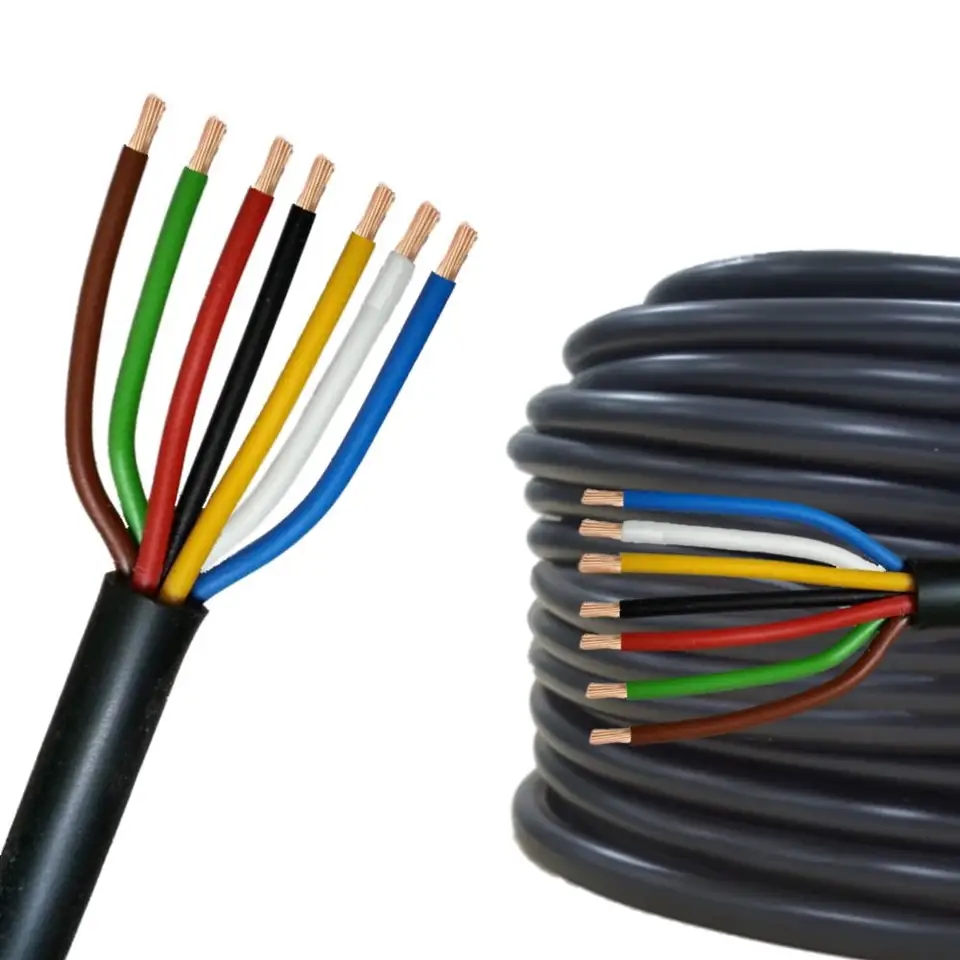

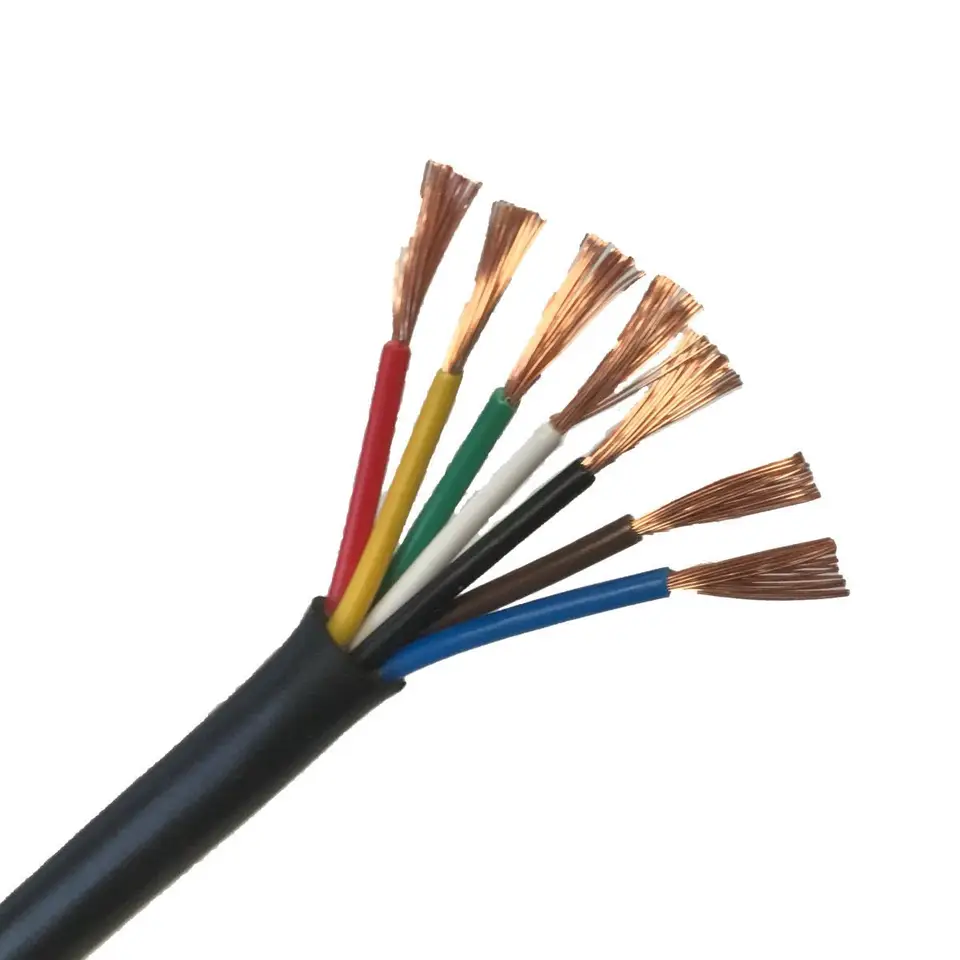

7 way trailer wire is flexible cable used to contacting trailer  vehicle. 7 core trailer wire consists of seven wires that are color-coded to match the functions they control. The conductor is stranded copper wire, and insulation and sheath are flexible PVC. Therefore, the feature  of the 7 way trailer wiring is very soft, friction-resistant and durable.

7 way trailer wire specification:

  • 7-way trailer wire gauge: 14 gauge,  12 gauge
  • 6mm battery cable diameter:4.8mm
  • Insulation:PVC C
  • Insulation Color:Green, Yellow, Brown, Blue, Black, White, Red
  • Sheath Color: Black
  • Test Voltage:2.0KV/5Min
  • Temperature Range: Max 90°C, Min -10 °C

FAQ about 7 Way trailer Cable

7 way Trailer Wire Color Code is a standard set of colors used to identify the function of each wire in a 7-pin trailer plug. The colors and their corresponding functions are shown below

  • White: Ground wire
  • Brown: Tail/running lights
  • Green: Right turn/brake light
  • Yellow: Left turn/brake light
  • Red: Auxiliary power
  • Black: Reverse lights
  • Blue: Brake controller output

sue, we provide trailer wire spool when you order our trailer wire. Here is more information: trailer wire spool is a spool of wire used for rewiring a trailer or splicing in a connector.

Finding 7 way trailer wiring near me is the good topic. If you need small quantity, you can search online. But if you have need big quantities we suggest choose ZW CABLE be your best supplier.
