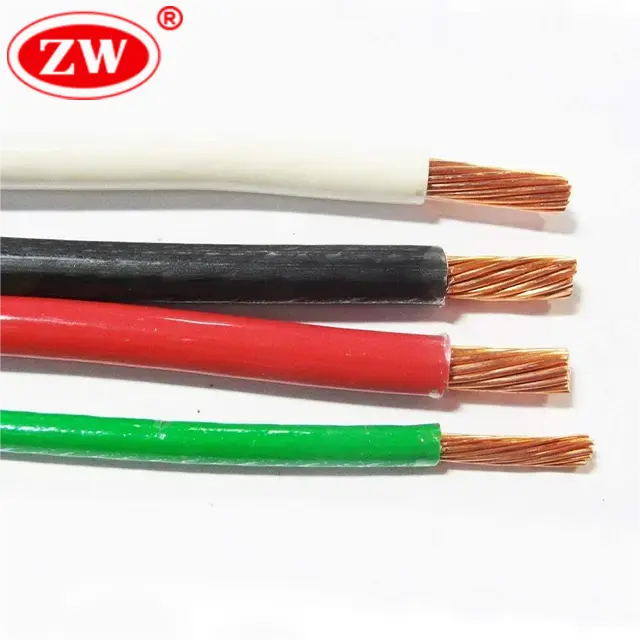

Copper Core PVC Insulated AWG 8 THHN Electrical Wire
- According to UL Standard
- Approved by ISO, CE, SGS, UL
- Place of Origin: Henan, China
- Production Process: PVC+Nylon
- Core: Single
- HS Code: 8544492100
- Color: red, black, green, blue, etc.
- MOQ: 1000 Meters
- Low Voltage
4.5 $ / Meter
5
- Product Details
8 THHN wire is a versatile building electrical wire that is primarily used in service entrances, feeders, and branch circuits wiring in residential, commercial, and industrial applications. THHN stands for “Thermoplastic High Heat-Resistant Nylon-coated” and is known for its resistance to heat and mechanical wear. Thhn wire 8 is made of stranded copper or aluminum conductors, the nylon coating over the PVC insulation adds strength and flexibility to the cable. In addition, 8 gauge wire is also flame-retardant.
- Specification
- Conductor: 19 Strands
- Insulation: PVC
- Sheath Color: red, yellow, blue, green, black, white, etc.
- Temperature Range: Max 90°C, Min -10 °C
- Conductor Resistance: ≤ 2.11（Ω/KM)
- Weight: 140KG per KM
- # 8 thhn wire ampacity:33 A
- Construction
- Nylon Jacket
- PVC Insulation (color can be black, red, blue, green, white, orange, etc.)
- Stranded Copper Conductor, conforms to ASTM B3, B8.
- Parameter
FAQ
What is 8 AWG THHN wire typically used for?
8 AWG THHN wire is commonly used for branch circuits, feeders, and equipment connections in commercial and industrial electrical systems where conductors are installed in conduit or raceways.
What is the insulation type of 8 AWG THHN wire?
THHN wire uses PVC insulation with a nylon (polyamide) outer jacket, providing abrasion resistance and ease of pulling in conduit.
Can 8 AWG THHN wire be used for motor or HVAC circuits?
Yes. 8 AWG THHN wire is commonly used for motor feeders and HVAC equipment circuits, provided conductor sizing and protection comply with applicable electrical codes.
