PVC insulated 8 core copper wire

According to IEC and BS Standard
PVC Cable
Approved by ISO, CE, SGS
Place of Origin: Henan, China
HS Code: 8544492100
Packing: 100 Meters

1.4 $ / Meter

5

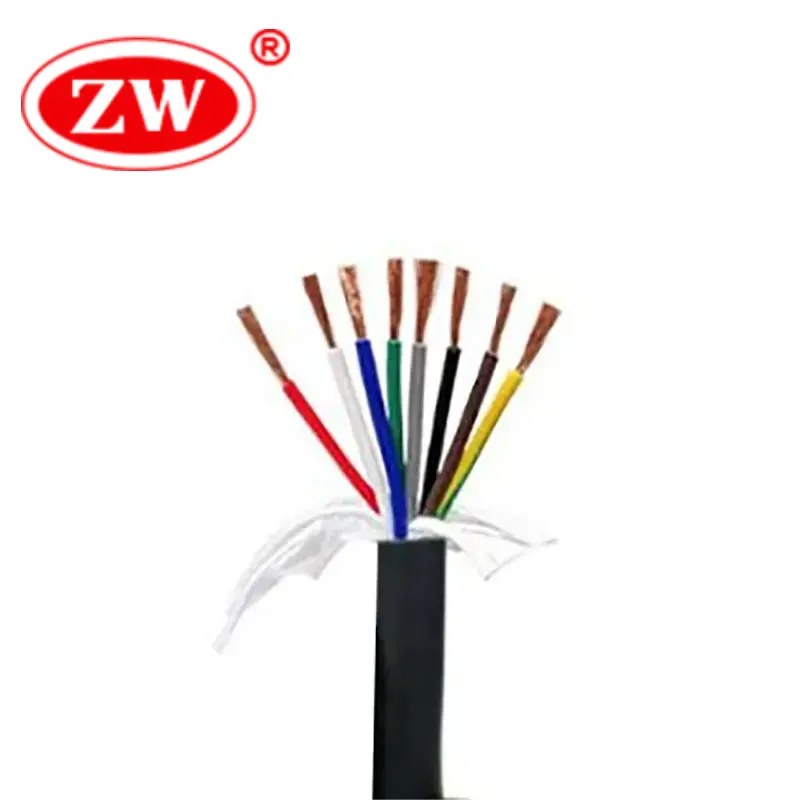

8 core cable refers to an electrical wire that contains eight separate conductors or cores within a single cable sheath, each color-coded for ease of identification and termination. 8 conductor wire can be used in various applications requiring the simultaneous transmission of multiple connections or signals, and, depending on the specific application, there are many variations of 8 conductor wires, such as twisted-pair 8-core ethernet cable for data communications, multi-core control cables for industrial machinery, and 8 core yy cable used in telecommunications and so on.

Voltage Rating: 300/500V
Test Voltage: 3KV/5Min
Temperature Range: Max 80°C, Min -20 °C

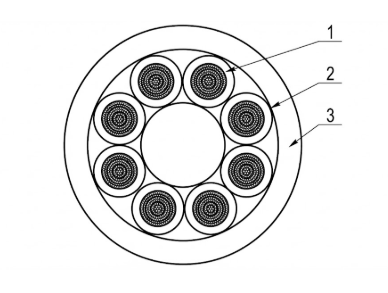

Conductor: Plain annealed copper Class 5
Insulation: PVC
Sheath: PVC

FAQ

How are the cores identified in an 8 core control cable?

According to standard DIN/VDE norms, cables with more than 5 cores use Black cores with White Numbers (1-7) for identification, plus one Green/Yellow protective earth conductor.

What is the approximate outer diameter (OD) of 8 core cable?

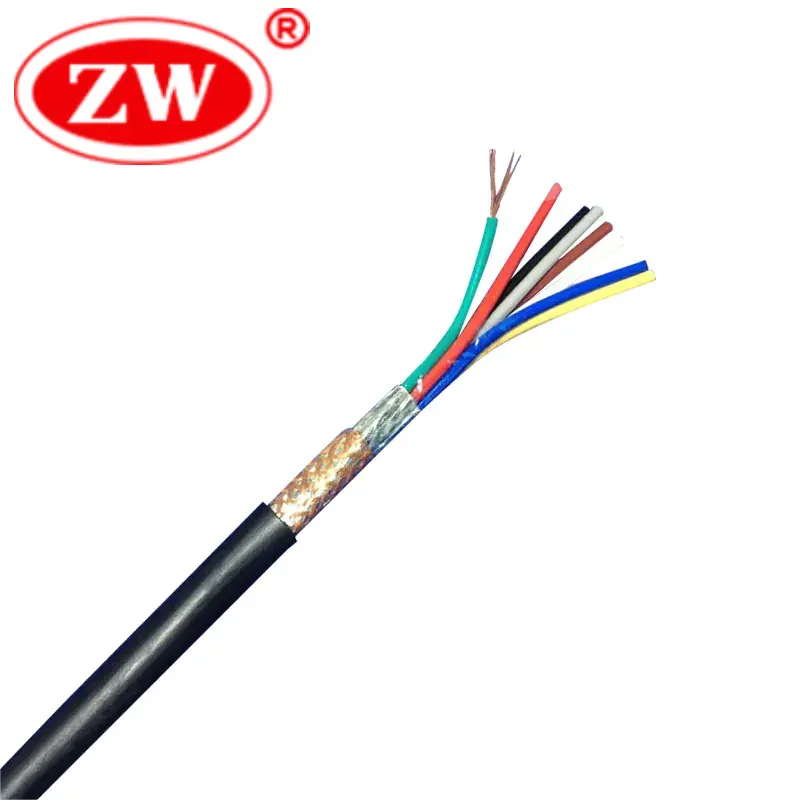

The OD varies by cross-section and type. For a standard 8G1.5mm² YY cable, the OD is approximately 10.5mm to 11.5mm. For a shielded CY or armoured SY version, the diameter will be larger (approx. 12.5mm - 14mm).

Can 8 core control cable be used for data transmission?

Yes, for low-speed signals. It is commonly used for transmitting multiple digital status signals (on/off) or relay logic.
