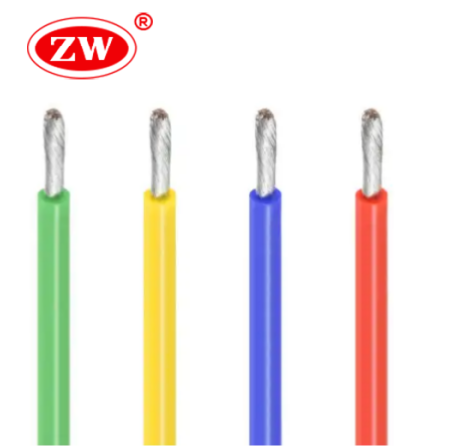

16 awg stranded hookup wire with Different Insulation

  • According to UL and BS Standard
  • Approved by UL, CE
  • Place of Origin: Henan, China
  • Packing: 100 Meters, 200Meters, 3o0 Meters, 610 Meters
  • Number of Cores: 1
  • MOQ: 1000 Meters
  • HS Code:8544492900

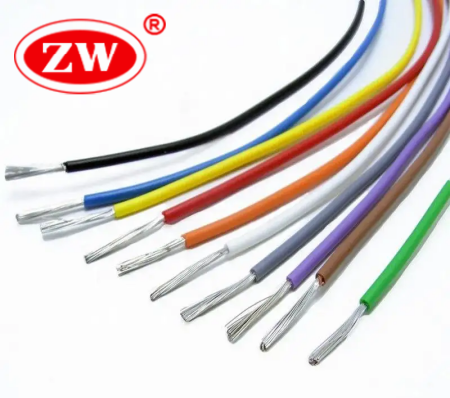

16 awg hook up wire belongs to a type of electrical wire that is designed to be connected to different applications in low-voltage systems. The term “16 awg” refers to the America wire gauge(awg) with a conductor size of 16, which corresponds to the IEC standard of 1.3 mm². 16 awg hook-up wire is generally made of stranded copper or tinned copper, with different insulating materials to match the various electrical systems for the different application scenarios. 16 gauge hook up wire is typically used for internal wiring of electrical appliances, for circuit wiring, as well as for connecting electrical components such as automotive wiring.

16 AWG Hook Up Wire Specification:

  • Voltage Rating: 300V
  • Conductor: Plain annealed copper Class 5
  • Insulation Types: PVC, XLPE, FEP, PTFE
  • Sheath Color: Black, Red, Blue, Yellow, Green
  • Test Voltage: 3KV/5Min
  • Temperature Range: Min -40°C to Max 260°C

FAQ about 16 gauge hook-up wire

16 awg wire amp rating is roughly 13 amps. This is a rough calculation and may vary up or down.

Sure, 16 AWG hookup wire is often used for soldering to a variety of applications because of the flexibility it offers due to its stranded conductors.

16 AWG hook-up wires are manufactured to industry specifications. If you are concerned about the quality of the 16 awg hookup wire you purchase, you can get it customized by a reliable wire manufacturer, ZW Cable can help you choose a wire for your application that complies with the relevant regulations to ensure quality and safety.
