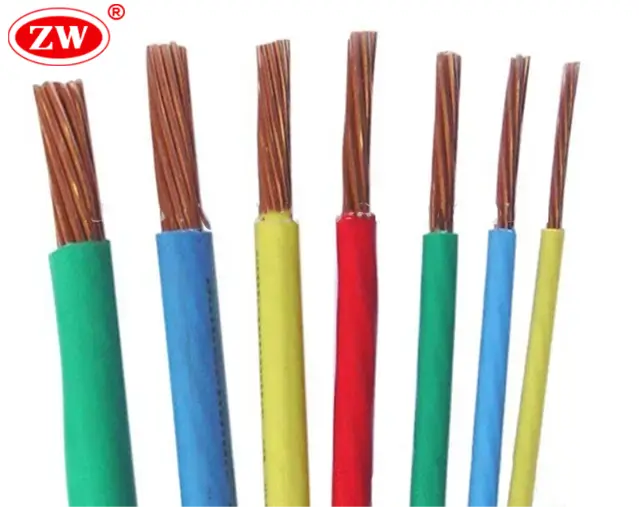

THHN Cable Wire Size AWG 6 Stranded Copper Nylon Electric Building Cable

According to UL Standard
Approved by ISO, CE, SGS, UL
Place of Origin: Henan, China
Production Process: PVC+Nylon
Core: Single
HS Code: 8544492100
Color: red, black, green, blue, etc.
MOQ: 1000 Meters
Low Voltage

0.8 $ / Meter

5

6 AWG THHN is a type of thermoplastic high-heat-resistant nylon-coated electrical wire that is primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications. 6 thhn wire consists of stranded copper wires with polyvinyl chloride (PVC) insulation and a nylon coating and is resistant to heat, mechanical wear, and chemicals. As a relatively large size, thhn wire 6 can be used for larger loads, such as air-conditioning HVAC and sub-panel. 6 thhn is rated for 600 volts, is sold by the foot, and can be cut to the desired length, such as 500 feet.

Conductor: 19 Strands
Insulation: PVC
Sheath Color: red, yellow, blue, green, black, white, etc.
Temperature Range: Max 90°C, Min -10 °C
Conductor Resistance: ≤ 1.33（Ω/KM)
Weight: 140 KG per KM
6 gauge thhn wire amp rating: 52.5A

Nylon Jacket
PVC Insulation (color can be black, red, blue, green, white, orange, etc.)
Stranded Copper Conductor, conforms to ASTM B3, B8.

FAQ

What is 6 AWG THHN wire commonly used for?

6 AWG THHN wire is widely used for branch circuits, feeders, and industrial wiring where higher current capacity is required in conduit-based fixed installations.

How flexible is 6 AWG THHN wire?

Due to its larger conductor size, 6 AWG THHN has limited flexibility compared to smaller gauges and requires proper bending radius during installation.

What standards does 6 AWG THHN wire comply with?

6 AWG THHN wire is manufactured to meet UL standards and is commonly installed in accordance with NEC (NFPA 70) requirements.
