4 Core 240 sqmm IEC XLPE STA Cable
- According to IEC and GB Standard
- XLPE & PVC Cable
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- Number of Cores:1,2,3,4(3+1),5(4+1,3+2)
- HS Code: 8544492100
100 $ / Meter
5
- Product Details

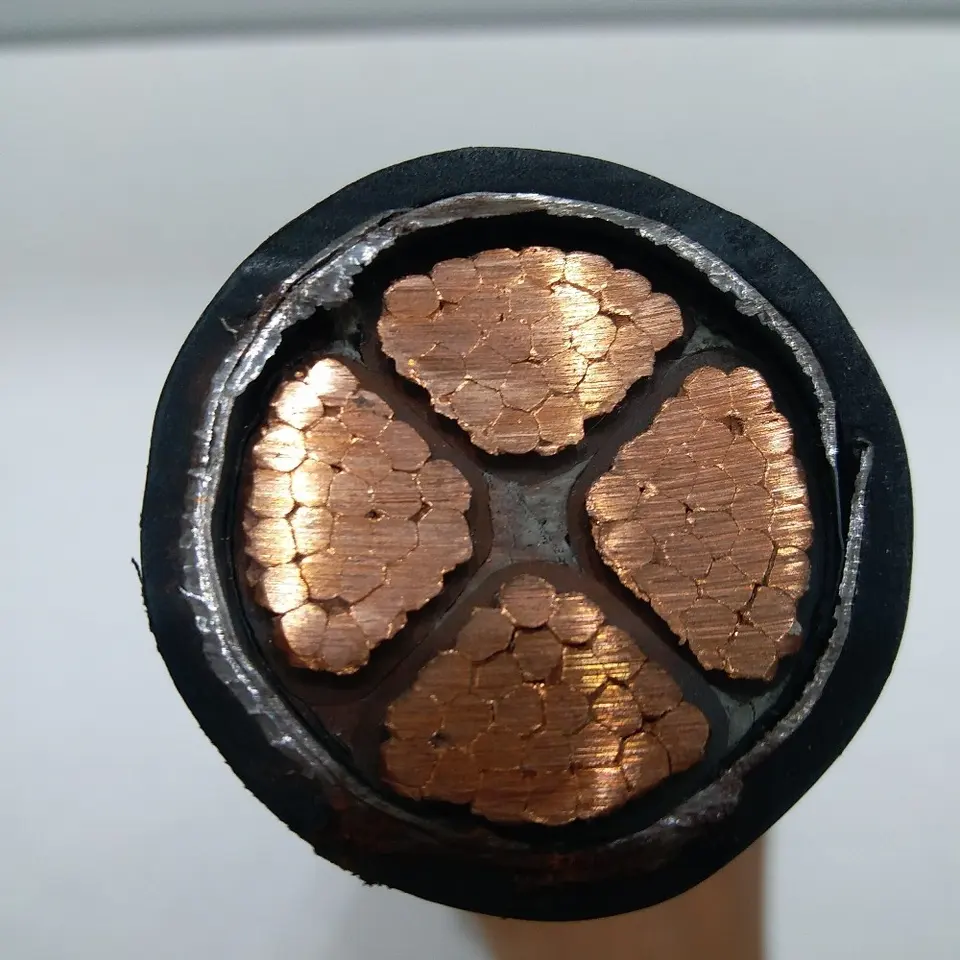

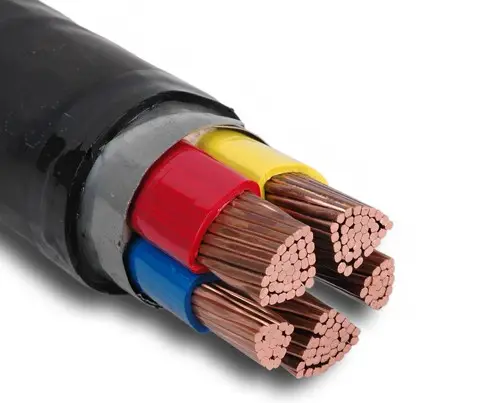

240mm armoured cable refers to electrical cable that cross section area is 240 sqmm (mm²). 240mm cable is large size, and it can carry high electrical current. The cable is made of copper or aluminum. Mostly choose copper conduct for long-term use. The insulation is xlpe, and sheath is PVC. 240mm 4 core xlpe cable is suitable for direct burial to carry mains electricity to various powered devices. The amoured layer can be steel tape (STA) or steel wire (SWA).
- Specification
- 240sq mm cable current capacity: 440 Amps
- 240mm 4 core cable diameter:68mm
- Related Voltage: 0.6/1KV
- Test Voltage:3.5KV/5Min
- Temperature Range: Max 90°C, Min -10 °C
- Conductor Resistance: ≤ 0.0754（Ω/KM)
- Construction
- Conductor : Plain annealed copper Class 2
- Insulation : XLPE(cross-linked polyethylene) rated at 90 °C
- Binder tape: non-hygroscopic
- Filler: ndygrcopic
- Inner sheath : PVC (Polyvinyl Chloride)
- Armored : Galvanized Steel Wire
- Binder tape: non-hygroscopic
- Sheath: PVC or FR-PVC (Black)
- Parameter
FAQ
What is the exact Current Carrying Capacity in free air vs. underground?
Under BS 7671 standards, 240mm 4-core SWA is rated for approximately 495 Amps in free air (clipped direct) and 428 Amps direct buried (ground ambient 20°C).
What is the minimum bending radius?
The standard 8x O.D. applies. With an O.D. of ~65mm, the minimum radius is 520mm (0.52m).
Can this cable be terminated into a standard 400A Panelboard?
Check the Spreader Box. 240mm cables are stiff and require a large "spreading room" to fan out the cores. Standard compact panelboards may require an additional extension box to accommodate the bend radius of the cores.
