6mm Solar Cable With TUV

According to TUV Standard
XLPO & XLPO Cable
Approved by ISO,CE, TUV
Place of Origin: Henan, China
In Stock
Number of Cores:1 and 2
HS Code: 8544492100
Packing: 100 Meters, 200 Meters, 500 Meters, 1000 Meters
MOQ: 100 Meters
Low Voltage

0.8 $ / Meter

5

6mm solar cable is designed for photovoltaic solar systems to connect solar panels and other components in a solar system.“6mm” is the cross-sectional area of the cable, indicating 6mm dc solar cable size. 4mm or 6mm solar cable is made of multiple strands tinned copper wire. The insulation and sheath are XLPO(Cross linked polyolefin). “Double XLPO ensures long-lasting performance in harsh environments.6mm2 solar cable is suitable for outdoor. 6mm solar cable 100m is the best selling in PV cable.

6mm solar cable current rating: 55 Amps
Related Voltage: AC 1KV, DC 1.5KV
Test Voltage:3.5KV/5Min
Temperature Range: -40ºC–90ºC Max. Temperature at Conductor 120ºC
Conductor Resistance: ≤ 3.39（Ω/KM)
Service Life: 25 Years

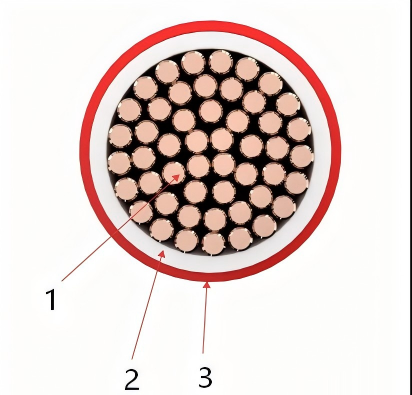

Conductor: Tinned Copper Class 5
Insulation: XLPO
Sheath: XLPO

Construction	Conductor Construction	Insulation OD	Outer OD	Resistance Max	Current Carring Capacity
n×mm2	n×mm	mm	mm	Ω/Km	A
1×1.5	30×0.25	3.05	4.7	13.7	30
1×2.5	49×0.25	3.5	5.2	8.21	41
1×4.0	56×0.285	3.58	5.5	5.09	55
1×6	84×0.285	4.45	6.2	3.39	70
1×10	142×0.3	5.5	7.2	1.85	98
1×16	228×0.3	6.0	8.8	1.24	132
1×25	361×0.3	8.7	10.8	0.795	176
1×35	494×0.3	10	12.4	0.565	218

FAQ

What is the current carrying capacity (Ampacity) of 6mm² solar cable?

According to EN 50618, a 6mm² solar cable typically has a current rating of approximately 70A in free air (at 60°C) and 57A when installed on surfaces.

When should I choose 6mm² over 4mm² solar cable?

Select 6mm² cable for long cable runs (typically >15 meters) to minimize voltage drop, or for strings with high-current modules.

Can 6 mm solar cable be buried underground?

Only if installed in protective conduit or ducting, as specified by local regulations.
