Suppose an engineer is designing a control panel for a new machine. The machine is a success, with orders coming in from London, Los Angeles, and Toronto. But there’s a catch: each region has its own electrical standards. It means you might need three different types of panel wire, leading to complex inventory, confusing assembly instructions, and the constant risk of using the wrong component for the wrong market. In the course of supplying high-quality cable products for control systems, we have personally witnessed how this specific issue has caused costly delays. This is where tri-rated cable comes in as a simple solution.
What Does “Tri-Rated” Actually Mean?
The term “tri-rated” simply means the cable is designed and certified to meet the safety and performance requirements of three different international standards at the same time. This triple certification is its most powerful feature, as it allows manufacturers to use the exact same wire in equipment built for the UK, Europe, and North America without any changes.
The three standards it meets are:
- BS 6231: The British Standard for single-core PVC insulated flexible cables used inside switchgear and control panels.
- UL 758: An Underwriters Laboratories (UL) standard for Appliance Wiring Material (AWM) in the United States. Tri-rated cable is typically approved under UL Style 1015.
- CSA 22.2: A Canadian Standards Association (CSA) standard for equipment wiring, often known as Type TEW.
To earn all three certifications, the cable must be built to satisfy the most demanding aspects of each standard. This is most apparent in its temperature and voltage ratings. While the British BS 6231 Type CK standard requires a 90°C continuous operating temperature, the UL and CSA standards demand a higher 105°C rating. To meet the North American requirement, manufacturers use a higher grade of insulation.
The result? This means that when you use tri-rated cable, you’re getting a product with a higher safety margin by default, no matter where you are. Using a single, globally-certified cable simplifies everything from design and purchasing to inventory management. It reduces the number of parts you need to stock and lowers the risk of compliance errors.

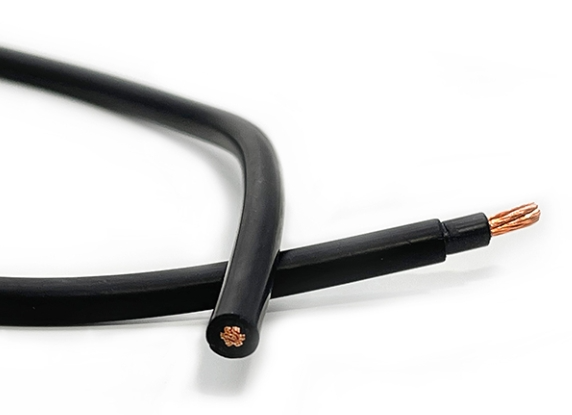

A Look at the Cable Construction
- Conductor: The core of the cable is made of finely stranded plain annealed copper. It is a Class 5 flexible conductor, which is the highest level of flexibility for this type of cable under the BS EN 60228 standard.
- Insulation: The copper conductor is covered in a special Heat-Resistant Polyvinyl Chloride (HR PVC) insulation. This material is what allows the cable to safely handle temperatures up to 105°C without breaking down. The HR PVC is also flame-retardant and self-extinguishing,
The table below shows typical specifications you’ll find on a tri-rated cable data sheet.
| Nominal CSA (mm2) | Approx. AWG | Conductor Stranding (No./mm) | Current Rating (Amps)* | Max. DC Resistance @ 20°C (Ω/km) |
| 0.5 | 22 | 16/0.20 | 11 | 39.0 |
| 0.75 | 19 | 24/0.20 | 14 | 26.0 |
| 1.0 | 18 | 32/0.20 | 17 | 19.5 |
| 1.5 | 16 | 30/0.25 | 21 | 13.3 |
| 2.5 | 14 | 50/0.25 | 30 | 7.98 |
| 4.0 | 12 | 56/0.30 | 41 | 4.95 |
| 6.0 | 10 | 84/0.30 | 53 | 3.30 |
| 10.0 | 8 | 80/0.40 | 75 | 1.91 |
| 16.0 | 6 | 126/0.40 | 100 | 1.21 |
*Note: Current ratings are for guidance only and are based on a single cable in open air at 45°C. You must adjust these values based on your specific installation conditions (like bundling cables together or higher ambient temperatures) according to local wiring codes.
Where is Tri-Rated Cable Used?
Tri-rated cable is predominantly used for the internal wiring of enclosed electrical equipment. Its most common applications include:
- Switch, Control, and Relay Panels: As the primary panel wire for connecting components like circuit breakers, contactors, relays, and terminal blocks.
- Power Switchgear: For low-voltage control circuits within larger power distribution and switchgear assemblies.
- Instrumentation Panels: Wiring for meters, sensors, and other monitoring devices.
- Motor Starters and Controllers: Making connections within motor control centers (MCCs) and individual motor starter enclosures.
- Rectifier Equipment: For internal connections in power conversion equipment.
- Industrial Electrical Installations: General-purpose wiring inside machinery and industrial control systems.
Installation Best Practices and Avoiding Common Pitfalls
Panel Wiring Best Practices
Proper installation is key to unlocking the safety and performance benefits of tri-rated cable. If there is one non-negotiable rule for working with this type of wire, it is this: always use bootlace ferrules when terminating in screw-type terminals.
The cable’s flexibility comes from its many thin copper strands. If you clamp an unterminated wire under a screw, these strands can fray, break, or spread out, creating a poor electrical connection. This high-resistance point will heat up under load, which can melt the insulation and create a serious fire hazard. A bootlace ferrule, when crimped correctly, bundles these strands into a solid pin, ensuring a secure, low-resistance connection every time.
Common Mistakes and How to Avoid Them
- Ordering the Wrong Type: Ensure you specify BS6231 Type CK, which is rated for 90°C/105°C. A common error is ordering Type BK, which is only rated for 70°C and lacks the UL/CSA approvals .
- Undersizing Wires: Always calculate your required wire size based on the maximum load and de-rate for ambient temperature and grouping. An undersized wire is an overheating hazard.
- Overfilling Ducts: Packing wire ducts too tightly traps heat and reduces the current-carrying capacity of every cable inside. Respect the recommended fill capacity to ensure proper airflow.
- Poor Routing: To prevent electromagnetic interference (EMI), physically separate low-voltage signal wires from high-power AC cables. If they must cross, do so at a 90-degree angle .
- Not Labeling Wires: Clearly labeling every wire at both ends saves a massive amount of time and prevents mistakes during future troubleshooting or maintenance.
To sum up, tri-rated cable is the industry standard for control panel wiring because it offers a unique blend of safety, flexibility, and global compliance. Above all, its triple certification to BS, UL, and CSA standards.
When your project requires top quality and global certification, choose a supplier that understands the standards you need to meet. ZW CABLE is a professional manufacturer with experience dating back to 1993, producing a wide range of cables that meet strict international standards like BS, UL, and IEC. Our guiding principle of “Quality First, Reputation First, Service First” ensures you get a reliable product with expert support. Contact us today for a detailed datasheet and quotation.
Frequently Asked Questions (FAQs)
- Can tri-rated cable be used outdoors?
Tri-rated cable is designed for use inside protective enclosures like control panels. If you need to use it outdoors, it must be installed inside a conduit or another form of mechanical protection. This will shield it from direct sunlight (UV), moisture, and physical damage, which can degrade the PVC insulation.
- What is the main difference between tri-rated cable and standard BS 6231 Type BK panel wire?
The biggest difference is the temperature rating. Tri-rated cable is a BS 6231 Type CK wire, which is rated for 90°C for continuous use. Standard BS 6231 Type BK wire is only rated for 70°C. Because tri-rated cable also meets UL and CSA standards, it is actually built to handle 105°C, giving it a major performance advantage over both Type BK and standard Type CK wire.
- Is it really necessary to use bootlace ferrules with tri-rated cable?
Yes, it is absolutely essential for a safe and reliable connection. The fine strands of a Class 5 flexible conductor can be easily damaged by a screw terminal, creating a high-resistance hot spot. A bootlace ferrule protects the strands and consolidates them into a solid pin, guaranteeing a secure, long-lasting termination.
