Precise temperature measurement is critical for industries ranging from manufacturing and energy to scientific research. For instance, in a food processing plant, even a small temperature reading error can lead to spoiled batches or safety violations. Thermocouple cables are the specialized link that connects temperature sensors to control systems.
Yet with so many thermocouple cable types available, even experienced professionals can find it challenging to distinguish their features and select the right one for the job. Today’s guide will give you a clear, comprehensive understanding—making your next thermocouple cable choice simple and confident.
What is a Thermocouple Cable and How Does It Work?
Thermocouple cable is a specialized type of wire designed to transmit the small millivolt signals generated by thermocouple sensors back to reading or control instruments. Using standard copper wire for this task is one of the most common and costly mistakes in industrial settings.
To understand why you need a special cable, you first need to understand how a thermocouple works. When a thermocouple sensor is exposed to heat, it produces a small voltage based on the temperature difference between its two ends. This is where thermocouple wire and cable comes in. The thermocouple cable carries this delicate signal without introducing errors—something that would happen if standard copper wire were used instead. By maintaining consistent material properties from the sensor through the extension cable, you achieve reliable and precise temperature readings.
Common Thermocouple Cable Types and Their Uses
- By Calibration Type
Calibration type refers to the specific thermocouple alloy pairing used to match the sensor and maintain measurement accuracy. The most common calibration types include:
- Type K Thermocouple Cable: The industry standard for general-purpose use, with a broad temperature range and strong resistance to oxidation.
- Type J Thermocouple Cable: Another very common choice, a type j thermocouple cable has a more limited range but offers slightly better sensitivity in that range. Its main drawback is that the iron wire can rust in moist environments, so it’s best used in dry, clean applications.
- Type T Thermocouple Cable: Known for its excellent accuracy at low temperatures, making it a top choice for refrigeration and laboratory use.
- Type E Thermocouple Cable: Provides a higher output voltage than other types, making it suitable for applications requiring high sensitivity, especially at moderate temperatures.
- Type N Thermocouple Cable: Designed for high-temperature stability and resistance to oxidation, particularly in harsh, demanding industrial environments.
- Thermocouple Compensating Cable: Uses alloys that closely mimic the thermoelectric properties of the thermocouple type it supports, allowing for accurate signal extension without measurement error.
- Thermocouple Extension Cable: Manufactured to match the sensor’s alloys, these cables ensure signal integrity over long distances between the sensor and instrumentation.
| Type | Positive Conductor | Negative Conductor | Temperature Range
(°C) |
ANSI Color Code
(+ / – / Jacket) |
| J | Iron | Constantan | 0 to 760 | White / Red / Black |
| K | Chromel | Alumel | -200 to 1260 | Yellow / Red / Yellow |
| T | Copper | Constantan | -250 to 350 | Blue / Red / Blue |
| E | Chromel | Constantan | -200 to 900 | Purple / Red / Purple |
| N | Nicrosil | Nisil | -270 to 1300 | Orange / Red / Orange |
- By Construction and Application
- Mineral Insulated Thermocouple Cable: Features a robust metal sheath packed with mineral insulation, making it ideal for high temperature, high vibration, or corrosive conditions.

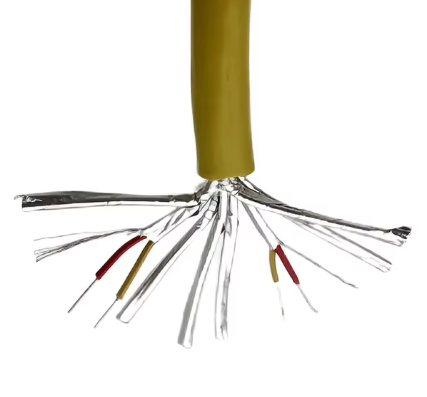

- Multipair Thermocouple Extension Cable: Combines several thermocouple extension pairs in a single jacket, streamlining installation for multi-point temperature monitoring systems.

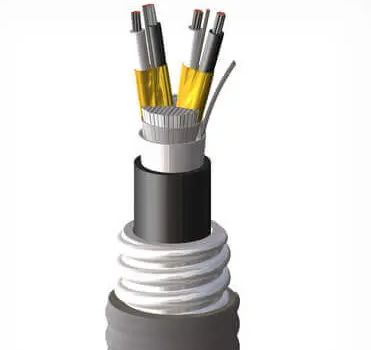

- Armored Thermocouple Cable: This construction takes a standard insulated thermocouple extension cable and adds a protective outer layer of interlocked metal armor. This armor protects the cable from being crushed, cut, or abraded, making it suitable for direct burial or for running across a busy factory floor without needing to be installed in conduit.
Considerations for Selecting and Installing Thermocouple Cables
Once you’ve identified the right type, choosing suitable insulation and following best installation practices ensures optimal performance and reliability.
1. Insulation: Common insulation materials include PVC for general use, Teflon (PTFE) for chemical resistance, fiberglass for high temperature thermocouple cable, and mineral insulation for extreme heat and harsh conditions. Insulated thermocouple extension cable ensures the signal remains stable and protected from external interference.
2. Standards: For industrial applications, certifications provide a guarantee of safety and quality. A CSA listed thermocouple cable has been independently tested by the Canadian Standards Association to meet strict performance and safety standards. For projects in North America, using CSA or UL certified components is often a requirement for code compliance and insurance.
3. Never Use Copper Wire for Extensions: This is the most common and critical mistake. Splicing a thermocouple with standard copper wire creates new, unintended junctions that will generate their own voltage and introduce significant errors into your temperature reading. Always use the correct matching thermocouple extension wire.
4. Check Polarity: Thermocouple wires are color-coded for a reason. Reversing the positive and negative leads will cause the temperature reading to go in the wrong direction. If you accidentally reverse the wires, your display may show a cooling trend when the process is actually heating up.
5. Avoid Electrical Noise (EMI): The low-voltage signal from a thermocouple is easily disrupted. Route thermocouple cables away from power lines, motors, and VFDs. When in doubt, use a shielded cable and ground the shield at one end only (usually at the instrument) to drain away noise.
Ready to ensure precise temperature measurement and long-lasting performance? Contact ZW CABLE today for expert advice, competitive pricing, and fast delivery on all your thermocouple cable needs.
Frequently Asked Questions About Thermocouple Cable
Q1: What is the difference between thermocouple extension cable and thermocouple compensating cable?
A: Thermocouple extension cable uses the same alloys as the thermocouple itself, ensuring accurate signal transmission. Thermocouple compensating cable uses different alloys but is designed to have similar characteristics over specific temperature ranges, making it suitable for extending thermocouple circuits with minimal error.
Q2: How far can I run a thermocouple extension cable before the signal degrades?
A: Thermocouples generate a millivolt signal, which is susceptible to voltage drop over long distances. While there’s no fixed maximum length, a good rule of thumb is to keep runs under 100 feet (30 meters) where possible. For longer runs, consider using a transmitter located near the sensor to convert the signal to a more robust 4-20mA loop or a digital signal, which can travel much farther without degradation.
Q2: How can I tell if my thermocouple is damaged?
A: Signs of a damaged thermocouple include erratic or inaccurate temperature readings, visible wear or corrosion on the cable, broken insulation, or physical damage to connectors. Regular inspection and testing can help identify issues early and prevent measurement errors.
