Ultra-Flex Welding Cable: Premium High-Strand Copper
- According to IEC and BS Standard
- Rubber
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- HS Code: 8544492100
- Packing: 100 Meters
- MOQ: 500 Meters
5
- Product Details

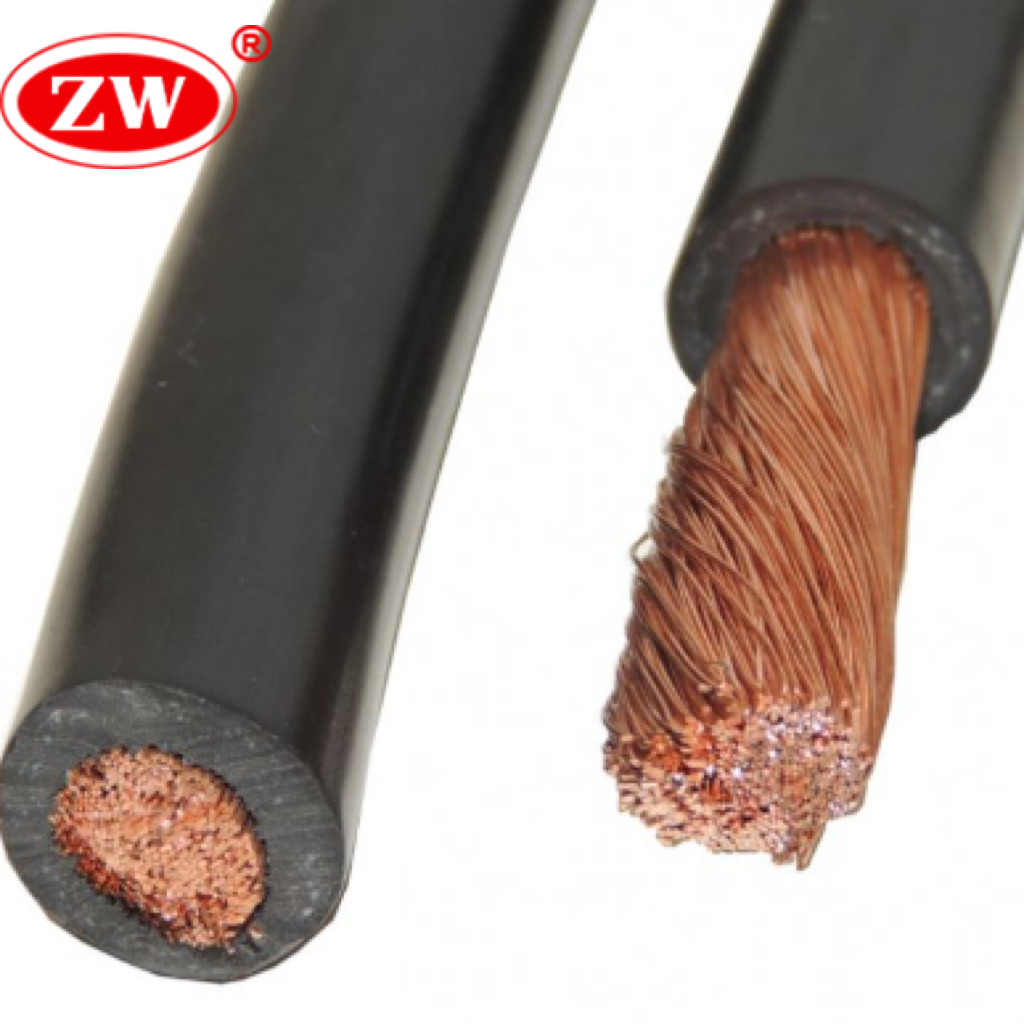

Our Ultra-Flex Welding Cable is engineered for industrial environments requiring maximum durability and extreme bend radiuses. Unlike standard welding cables, our “Ultra-Flex” line utilizes high-count, fine-stranded copper and a premium EPDM jacket to ensure superior performance in both freezing temperatures and high-heat applications.
-
Temperature Range: -50°C to +105°C
-
Voltage Rating: 600V Max
-
Durability: Resistant to oil, chemicals, water, and abrasion.
Ultra-Flex cables Applications
Central Wires’ Ultra-Flex cables are the preferred choice for professionals across multiple industries:
-
Secondary Voltage Welding Leads: Ideal for manual and robotic welding stations.
-
Power Supply Applications: Frequently used as battery leads, jumper cables, and power inverters.
-
Extreme Environments: Perfectly suited for shipyards, automotive manufacturing, and construction sites where flexibility in cold weather is mandatory.
- Specification
- Test Voltage: 2.5KV/5Min
- Temperature Range: Max 90°C, Min -40 °C
- Number of Cores:
- Size: 10mm2-185mm2

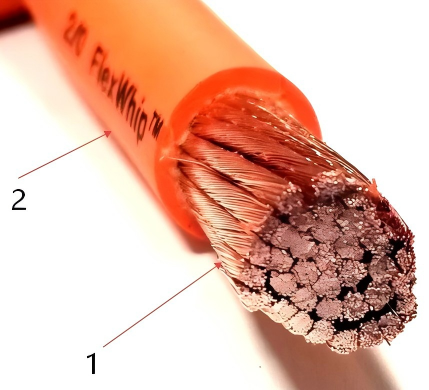

- Construction
- Conductor: Plain annealed copper Class 5
- Insulation: Rubber
- Parameter
|
Size
(mm²)
|
Conductor Structure
(No./mm)
|
Sheath Thickness
(mm) |
Max Overall Diameter
(mm) |
Approx. Weight
(Kg/Km)
|
Max D.C Resistance
(20℃)
|
Permissible Current Rating(A)
|
|
10
|
322/0.2
|
1.8
|
9.7
|
133
|
1.91
|
75
|
|
16
|
513/0.2
|
2
|
11.5
|
216
|
1.16
|
105
|
|
25
|
798/0.2
|
2
|
13
|
300
|
0.758
|
135
|
|
35
|
1121/0.2
|
2
|
14.5
|
406
|
0.536
|
170
|
|
50
|
1596/0.2
|
2.2
|
17
|
568
|
0.379
|
215
|
|
70
|
2220/0.2
|
2.4
|
19.5
|
780
|
0.268
|
265
|
|
95
|
2997/0.2
|
2.6
|
22
|
1037
|
0.198
|
325
|
|
120
|
1702/0.3
|
2.8
|
24
|
1314
|
0.161
|
380
|
|
150
|
2146/0.3
|
3
|
27
|
1644
|
0.129
|
435
|
|
185
|
1443/0.3
|
3.2
|
29
|
1957
|
0.106
|
496
|
