H01N2-D Cable
- According to IEC and VDE Standard
- Rubber
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- Number of Cores:1
- HS Code: 8544492100
- Packing: 100 Meters
- In Stock
1.2～9 $ / Meter
5
- Product Details
H01N2-D cable is a flexible rubber insulated wire designed according to DIN VDE 0282-803. The list is the h01n2 d cable specification:
- The conductor is class 5 annealed stranded copper wire.
- The insulation is Neoprene rubber.H07RN-F and H0R5N-F cable also used same materials.
- H01N2-D cable is particularly suitable for connections between welding tools and equipment, such as automotive and shipbuilding, conveyors, assembly lines, and welding robots.
- It complies with European HAR safety and quality certifications, and may also have international certifications such as CCC, CE, CB, BS, SAA, SGS, etc., ensuring its versatility and safety in the global market.
- Specification
- Nominal Voltage:U0/U 220/600 volts
- Testing Voltage U: 2500 volts acc.to DIN VDE 0282 part 2 + HD 22.2
- Min.Bending Radius : 6 ×O.D.
- Operating Temperature (Flexible): -20°C to +85°C.
- Operating Temperature (Fixed): -40°C to +85°C.
- Long time allow working temperature of wire core cant be higher than 60°C.

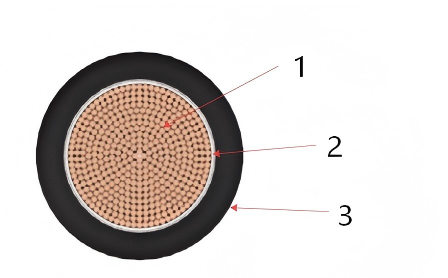

- Construction
- Conductor: Class 5 annealed stranded copper
- Separator: Polyester Tape
- Sheath: Rubber compound
- Sheath Colour: Black/Red
- Parameter
|
Product number
|
Section (mm2)
|
Core structure /mm
|
Sheath thickness (mm)
|
Min OD (mm)
|
Max OD (mm)
|
Max Conductor Resistance at 20℃
|
Rated current (A)
|
|
H01N2-D & H01N2-E Cable
|
10
|
322/0.20
|
1.8
|
7.7
|
9.7
|
1.91
|
8.3
|
|
16
|
513/0.20
|
2
|
8.8
|
11.0 |
1.21
|
10.0
|
|
|
25
|
798/0.20
|
2
|
10.1
|
12.7
|
0.78
|
11.4
|
|
|
35
|
1121/0.20
|
2.2
|
11.4
|
14.2
|
0.554
|
13.0
|
|
|
50
|
1596/0.20
|
2.2
|
13.2
|
16.5 |
0.386
|
15.0
|
|
|
75
|
2214/0.20
|
2.4
|
15.3
|
19.2
|
0.272
|
17.0
|
|
|
95
|
2997/0.20
|
2.6
|
17.1
|
21.4
|
0.262
|
19.0
|
|
|
120
|
1702/0.30
|
2.8
|
19.2
|
24
|
0.161
|
21.2
|
|
|
150
|
2146/0.30
|
3
|
21.1
|
26.4
|
0.129
|
23.7
|
FAQ
What does the code "H01N2-D" stand for?
H: Harmonized type. 01: Rated voltage 100V (for welding applications). N2: Polychloroprene (PCP) or equivalent synthetic rubber sheath. D: Flexible conductor (typically Class 5) for arc welding.
What is the difference between H01N2-D and H01N2-E?
The main difference is flexibility. H01N2-D uses a Class 5 flexible conductor (standard flexibility), while H01N2-E uses a Class 6 extra-flexible conductor, making the "E" type better suited for robotics or highly dynamic applications.
Which international standards does this cable meet?
It complies with EN 50525-2-81, IEC 60245-6, and holds flame retardant certification according to IEC 60332-1-2.
