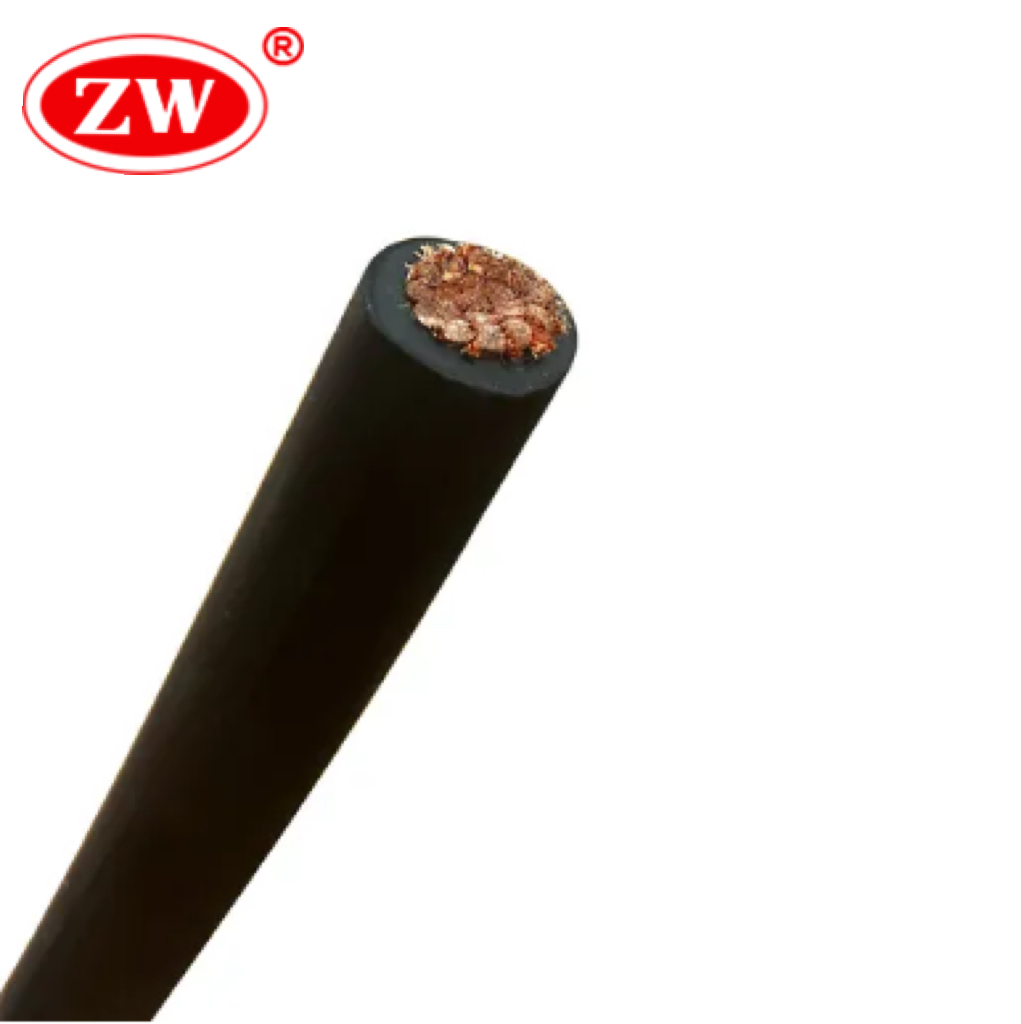

90mm2 Copper Conductor Rubber Welding Cable

  • According to IEC and ASTM Standard
  • Approved by ISO,CE, SGS
  • Place of Origin: Henan, China
  • Number of Cores:1
  • HS Code: 8544492100
  • Packing: 100 Meters
  • In Stock
10 $ / Meter

5

90mm² welding cables are specifically designed to conduct high currents in welding applications. The term “90mm²” denotes the cross-sectional area of the cable conductor. The construction of the cable usually consists of a number of thin copper wires to make it easier to maneuver in the installation space, encased in a strong, oil resistant and flame retardant rubber insulation and jacket material. The high strand count and rubber insulation contribute to the flexibility of the cable.

Application:

The 90mm² rubber insulated wire cable is suitable for mobile installations as well as electrical installations with a rated voltage of 450/750V. It is also ideally suited for secondary voltage connections in welding machines, battery cables, temporary power transportation and delivery systems.

Features:

  • Ultra-flexible with long flex life.
  • Chemical, grease, oil and acid resistant.
  • Weather, ozone and sunlight resistant jacket.
  • High mechanical strength

Construction:

  • Conductor: Plain annealed copper Class 5
  • Insulation: Rubber
  • Sheath Color: Black and Red

90mm welding cable specification:

  • Voltage: 450/750V
  • 90mm2 welding cable diameter: 17.5mm
  • Approx. weight: 890kg/km
  • 90mm2 cable current rating: 303A
  • Test Voltage: 2.5KV/5Min
  • Temperature Range: Max 90°C, Min -20 °C
