In welding, most pros alike underestimate how their size (measured in AWG) directly impacts performance. With inconsistent welds due to overheated cables or voltage drops, your welding project can grind to a halt in the middle of a job. Choosing the wrong welding cable size risks equipment damage, dangerous electrical failures, and hours of costly downtime.
This guide will cut through the confusion. From AWG charts to real-world applications, we’ll go over how to pick the best cables for your setup and how to avoid common mistakes so you can work smarter, safer, and more efficiently.
What Does ‘Welding Cable Size’ Mean?
Welding cable size refers to the thickness of the conductor inside the cable, which determines how much current it can safely carry. The two primary sizing systems are:
AWG (American Wire Gauge): A U.S. standard where lower numbers mean thicker cables (e.g., 2 AWG is thicker than 4 AWG).
Metric (mm²): Refers to the cross-sectional area of the conductor (e.g., 35mm² ≈ 2 AWG).
Think of it like a garden hose: a wider hose (or cable) allows more “flow” (current) without resistance. For instance, a 2/0 welding cable is thicker than 1/0 welding cable, with a 67.4mm² conductor, making it ideal for high-amperage industrial tasks. Why it matters? A mismatch between cable size and amperage can melt insulation or damage your welder.

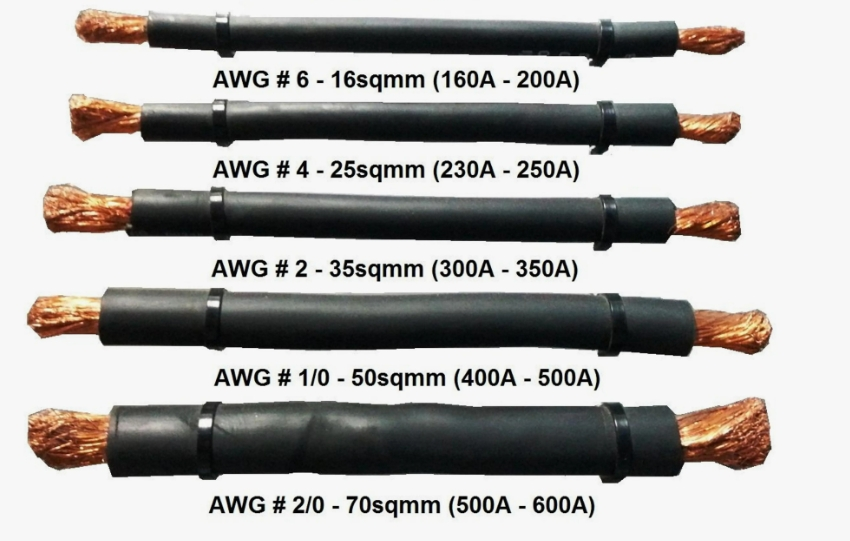

Welding Cable Size Chart: Ampacity, Diameter & Applications
We can use this chart to match cable size to your welding machine’s amperage and project needs:
| AWG Size | Metric (mm²) | Diameter (Inches) | Diameter (mm) | Ampacity (Max Current) | Max Distance (ft) | Voltage Drop (per 100ft @ Max Amps) | Typical Applications |
|---|---|---|---|---|---|---|---|
| 0000 (4/0) | 107.2 | 0.528 | 13.4 | 405A | 50-75 | 0.5V | Industrial 3-phase rigs, shipyards, 400+ amp MIG |
| 000 (3/0) | 85.0 | 0.480 | 12.2 | 350A | 40-60 | 0.8V | Heavy-duty TIG welding, construction equipment |
| 00 (2/0) | 67.4 | 0.430 | 10.9 | 300A | 30-50 | 1.1V | High-amperage stick welding, crane systems |
| 0 (1/0) | 53.5 | 0.374 | 9.5 | 250A | 25-40 | 1.5V | Farm equipment, mid-range MIG welders (250A) |
| 6 | 42.4 | 0.332 | 8.4 | 200A | 20-35 | 2.0V | Garage workshops, automotive repair |
| 4 | 33.6 | 0.292 | 7.4 | 190A | 15-30 | 2.8V | Light industrial, DIY plasma cutting |
| 3 | 26.7 | 0.260 | 6.6 | 165A | 10-25 | 3.4V | Portable inverter welders (150-175A) |
| 2 | 21.2 | 0.232 | 5.9 | 140A | 10-20 | 4.1V | Small TIG machines, hobbyist projects |
| 1 | 13.3 | 0.184 | 4.7 | 100A | <10 | 6.3V | Low-power tasks (60-90A), jewelry TIG |
Note: All data is benchmarked to 600V insulation, 90°C (194°F) rated temperature, and assumes copper conductors. Voltage drop calculations assume a <4% drop for optimal performance. Ampacity is based on 60% duty cycle (6 minutes welding per 10-minute cycle). For continuous use, reduce ampacity by 20%. A 4/0 cable rated for 500A should only handle 400A for 100% duty.
How Cable Length Affects Size Choice?
Voltage drop is the silent killer of weld quality. The longer the cable, the higher the resistance—and even a 2V drop can lead to weak, spattery arcs. To counter this, it’s important to adjust cable size appropriately. Here’s a rule of thumb: For every 50 feet of cable, increase gauge size by 1 step (e.g., switch from 2 AWG to 1/0). If your calculation exceeds 4% of source voltage, upsize your cable. To ensure accurate calculations, consider using a welding wire size calculator, like the one from Lincoln Electric, which factors in voltage (12V/24V), duty cycle, and ambient temperature.
How to Choose the Right Welding Cable Size?
1. Match Cable Size to Amperage
Welding cable sizes for 200 amp machines typically require 2 AWG for lengths up to 30 feet. For longer distances, increase to 1/0 to prevent voltage drop. Welding cable size for 400 amp machines is upgraded to 4/0 AWG or 120 mm². Don’t assume“Close enough”-even a 10% reduction in size can cause insulation to melt at temperatures above 150 °F. At the same time, if the use of over-specification will waste more than 30% of the purchase cost, and the cable is too rigid, the operation is easy to fatigue.
2. Flexibility vs. Durability
The fine strands are extremely flexible and can be used in tight spaces such as engine bays or mechanical arms. The thick strands, on the other hand, are economical but stiff and are more suitable for static workshop settings.
3. Environment-Specific Needs
If the workspace involves oils or grease, such as in auto shops or factories, oil-resistant jackets are a must. For outdoor applications like construction or farming, UV-resistant insulation is essential to withstand sun exposure. In freezing temperatures, cables with EPDM insulation retain flexibility, ensuring reliable performance in harsh, cold environments.
3 Common Mistakes to Avoid
- Myth 1: Undersizing Cables → Overheating risks.
One common mistake in welding setups is using undersized cables. For example, a 1 AWG cable on a 300A welder can run 30% hotter than a properly sized 2/0 cable. This excessive heat increases the risk of melted insulation and potential fire hazards.
- Myth 2: Ignoring Voltage Drop → Poor weld quality.
Another issue is ignoring voltage drop. A 4V drop on a 120V circuit translates to an 8% loss of power, which can lead to weak penetration and uneven weld beads. Properly calculating and accounting for voltage drop ensures consistent performance and higher-quality welds.
- Myth 3: Using Non-Welding-Specific Cables → Lack of flexibility and durability.
Finally, the use of non-welded cables (such as battery cables) is a major oversight. These cables lack the flexibility needed to withstand daily coiling and uncoiling, which can lead to wear and tear over time.
Conclusion: Size Smart, Weld Smarter
What determines the size of a welding cable? Choosing the right welding cable size boils down to three factors: amperage, distance, and environment. Choosing the right cable size isn’t just about welding cable specifications—it’s about safety, efficiency, and longevity.
Ready to upgrade? Shop our UL-listed welding cables here, featuring oil-resistant jackets and fine-strand flexibility. From 16mm welding cable to 120mm welding cable and quality certified welding cable type H01N2-D Cable, ZW Cable manufacturers are available. Our consultants will customize the optimal solution for you within 24 hours!
FAQs About Welding Cable Sizes
Q: Can I use a smaller cable if I’m only welding for short periods?
A: No. Even brief 200A surges can overheat undersized cables. Stick to the ampacity chart to avoid insulation damage.
Q: What’s the difference between 2/0 and 4/0 welding cables?
A: 4/0 (107mm²) handles 600A for heavy-duty 3-phase machines, while 2/0 (67mm²) suits 300A MIG/arc welders.
“How do I calculate welding cable size for a 3-phase machine?”
A: Use the formula or use an online welding wire size calculator.
