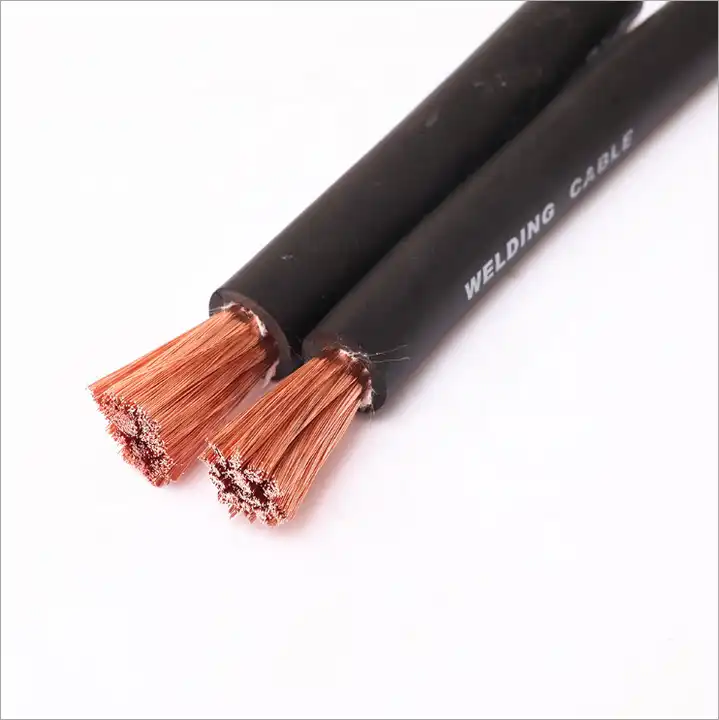

What is welding cable?

Welding cable is a specialized, portable electrical conductor designed to transmit high currents from electric welding machines to the electrode holder or clamping tool. Engineered for the secondary circuit of electric arc-welding generators, it features a single-conductor construction with high strand counts and robust insulation.

1. Conductor: Plain Annealed Copper

Material Standard: We utilize high-purity Plain Annealed Copper (electrolytic grade). The annealing process eliminates internal stresses caused by wire drawing, significantly increasing the copper’s ductility and conductivity.

Compliance: Meets ASTM B-3 and IEC 60228 standards. For projects requiring European specifications, we also manufacture the harmonized H01N2-D standard cable.

2. Stranding: Class K vs. Class M

We employ Rope-Lay Bunch Stranding to prevent kinking and conductor breakage under dynamic stress. We offer two flexibility grades:

• Class K (Standard Flex): Constructed using 30 AWG (0.254mm) strands. This provides excellent flexibility for general welding applications and is the industry standard for cost-performance balance.
• Class M (High Flex): Constructed using finer 34 AWG (0.16mm) strands. This specification creates our premium Ultra-Flex Welding Cable, ideal for robotic arms, automatic welding cells, or operators requiring superior ergonomics to reduce wrist fatigue.

Welding cable types

The type of welding cable is primarily defined by its insulation material. We use a single-layer extrusion process (double-layer available upon request) based on thermoset rubber compounds:

• Option A: EPDM (Ethylene Propylene Diene Monomer): Best for general indoor/outdoor use, wide temperature exposure (typically -50°C to +105°C), and weather/ozone resistance.
• Option B: Neoprene (Polychloroprene / PCP): Often selected for harsher industrial areas (e.g., oil exposure, shipyards, mining) where improved resistance to oil/grease and chemical abrasion is required.
• Option C: CPE (Chlorinated Polyethylene): Engineered for heavy-duty applications requiring superior flame retardancy and resistance to impact, heat, and oil (commonly used in mining sectors).
• Option D: PVC (Polyvinyl Chloride): A cost-effective thermoplastic alternative for light-duty applications. While less flexible than rubber in freezing temperatures, it offers excellent value for standard workshop environments.

Unsure which material is right for your project? The choice between thermoset rubber  and PVC significantly affects the cable’s lifespan in extreme conditions. To understand the trade-offs in detail, please read our comprehensive guide on Rubber Cables vs. PVC Specification Comparisons.

Field Performance Features

1. High-Flex Stranding Architecture

The cable lies flat immediately upon unrolling and offers zero resistance to wrist movement. This significantly reduces operator fatigue during positional welding, allowing for precise torch manipulation even at the end of a long shift.

2. Superior Abrasion Resistance

We utilize a proprietary curing process that increases the tensile strength of the jacket. Our cables are tested by dragging them over concrete and steel grating. The result is a jacket that resists “scrape abrasion,” protecting the live conductor inside.

3. Chemical & Environmental Defenses

Industrial floors are rarely clean. Our welding cables are engineered to resist:

• Oil & Grease: Prevents the jacket from swelling or becoming spongy.
• Ozone & Weathering: UV stabilizers prevent the “alligator skin” cracking effect seen on inferior cables left outdoors.
• Flame Retardancy: Meets theVW-1 vertical flame test standards, adding a layer of safety to your facility.

4. Optimized Transfer Efficiency

Our dense stranding configuration and high-purity copper minimize impedance variations over long cable runs. This low-impedance path ensures that the voltage set at the power source is exactly what is delivered to the electrode, resulting in immediate arc ignition, a consistently fluid weld puddle, and significantly reduced spatter

Detailed Specifications & Engineering Data

For Engineering Reference Only. Custom sizes available upon request.

To ensure precise fitment for your power supply units, please refer to the technical specifications below. We adhere to ASTM B-172 for conductor construction.

> Engineer’s Note: The ampacity values listed above are for single conductors in free air. If you are bundling cables or running them through conduit, please consult our technical team for de-rating factors to prevent overheating.

How to Size Your Welding Cable?

Selecting the correct gauge is critical for safety and efficiency. To accurately calculate the correct welding cable size, you must consider two primary factors:

Determine the Total Circuit Length

The length is the total loop. If your welder is 50 feet from the power source, the circuit length is 100 feet (50ft lead + 50ft work/ground cable).

Factor in the Duty Cycle

The “Duty Cycle” is the percentage of a 10-minute period that the welder operates at a given amperage.

• 100% Duty Cycle: Continuous automatic welding. Requires a thicker cable to dissipate heat.
• 60% Duty Cycle: Standard manual welding. The cable has time to cool down, allowing for a slightly smaller gauge in some contexts.

Consult the Amperage/Distance Matrix (Example for <100ft circuits)

• Medium Loads (250A – 300A): For standard workshop circuits under 100ft, 1/0 welding cable is the typically recommended specification to balance weight and power capacity.

• Heavy Loads (300A – 350A): As amperage increases, heat dissipation becomes critical. You generally need to upgrade to 2/0 welding cable to ensure safe operation at these levels.

• Max Power (>400A) or Long Runs: For high-output machines or runs where voltage drop is a concern (e.g., >150ft), we strongly recommend oversizing to 4/0 welding cable to ensure the machine receives adequate power without overheating.

Pro Tip: Due to its high flexibility, many engineers substitute standard battery cable with welding cable. We recommend reading our detailed comparison on Welding Cable vs. Battery Cable to understand the insulation differences. Furthermore, if your application involves higher voltages (above 600V) or requires tray ratings, please review DLO vs. Welding Cable to ensure you select the safest option for your heavy-duty equipment.

What validation steps occur before shipment?

• Structural Integrity Check: A cable can be chemically pure but mechanically “stiff.” Rigid stranding causes internal copper breakage during twisting, leading to invisible “hot spots” and failure. We strictly enforce ASTM B-172 standards, mandating a Rope-Lay Stranded configuration. This geometric verification ensures the copper core retains its integrity during repetitive flexing, preventing premature fatigue.
• Concentricity Scan: If the copper wire shifts off-center inside the jacket during manufacturing, it creates an uneven layer—thick on one side but dangerously thin on the other. We use high-precision lasers to scan the cable profile continuously as it is made. This technology ensures the copper remains dead-center at all times, guaranteeing that the protective rubber wall is equally thick and durable 360 degrees around the wire.
• 100% Inline Spark Testing: A microscopic pinhole in the insulation is invisible to the eye but becomes a lethal leakage path when the cable is dragged across a wet floor. We reject statistical sampling. Instead, every single foot of cable undergoes High-Voltage Spark Testing before spooling. We continuously scan the dielectric strength to intercept and remove any invisible defects before the product leaves our facility.
