Understanding CU Cable: Advantages and Comparisons

The well-known bare copper conductor material has excellent electrical conductivity and can efficiently transmit electrical signals. While the CU cable material has chosen copper conductors as its core to increase durability. In the quest for reliable power supply, CU copper wires stand as an exemplar of steadfast connectivity.

Are you on the hunt for a cable solution that combines durability with long-term reliability? Consider the advantages of choosing CU cables for your upcoming needs!  In this post, we’ll discuss the cu cable current rating, benefits and potential limitations of copper cables, providing you a comprehensive understanding of which conductor might best suit your specific needs.

What is CU cable?

CU cable is an electrical cable with a copper core as its conductive material. Copper core cables are extensively utilized in both residential wiring and telecommunications applications, offering a high level of reliability. They guarantee efficient power transmission with minimal energy loss.

Copper cables are an extremely versatile option as they can handle a wide range of voltages and frequencies. Therefore, they are appropriate for use in both low-voltage domestic and high-power industrial applications. The widespread use of CU cables is attributed to copper’s flexibility and durability, enhancing the longevity and reliability of electrical systems.

Moreover, copper cable wires come in various types and sizes, tailored to specific uses. Whether for overhead transmission lines, underground wiring, or flexible connections in appliances, the selection of a CU cable depends on the application’s demands, including cu current capacity and environmental conditions.

cu cable

After getting to know the cu cable meaning, we may be wondering, “What’s so special about CU cables as well as their shortcomings? With regard to this question, let’s take a look at more details about the characteristics of the CU cable itself.

Advantages and disadvantages of CU cable

The use of copper cables in telecommunications and electrical systems brings with it a set of distinct advantages and disadvantages that merit consideration.

  • the benefits of CU cables are obvious. Their excellent conductivity ensures efficient transmission of electrical signals with minimal loss. It also makes an excellent choice for high-speed data transmission and power supply applications. In addition, the robustness of copper gives it a degree of durability and resistance to environmental factors such as corrosion and abrasion. Consequently, it reduces the need for maintenance and extends the service life. Typically, cu cables are a cost-effective solution despite the high initial investment.
  • On the downside, the disadvantages of CU cables should not be overlooked. The main issue is its cost. When compared to alternative options like aluminum, Copper is a relatively more costly material. CU cables have a higher upfront cost. Furthermore, copper is a heavier metal. It can increase the complexity and cost of installations in large applications that require significant wiring. Another obvious downside is the high value of copper scrap, which is easy to steal and poses a threat to infrastructure. Additional security measures are therefore necessary.

While CU cables offer unparalleled efficiency and durability, their financial and logistical downsides present real challenges that must be carefully weighed against their benefits.

What is CU cable current capacity?

The efficiency and safety of copper (Cu) cables in conducting electricity are influenced by numerous critical factors. It is essential to meticulously consider these elements when choosing and installing these cables to enhance performance and reduce hazards like overheating.

  1. Conductor Size: Fundamentally, cu cable size has a direct impact on its ability to carry current. A larger conductor size means a greater cross-sectional area. This reduces resistance and allows for greater current carrying capacity. We need to choose the right cable size for the expected electrical load.
  2. Insulation Type:  The choice of insulating material that surrounds the copper wire screen cable conductor also affects the cable current capacity. Materials can resist varying levels of heat from electrical current.
  3. Installation Environment: Environmental conditions such as ambient temperature, humidity and the presence of potentially corrosive elements can significantly affect the cu cable current rating. For instance, cables installed in high-temperature environments may have a reduced capacity due to increased conductor resistance.
  4. Bundling: When multiple cables are bundled or installed close together, the heat generated by each cable affects the others. This may reduce their overall cu cable current capacity. Proper spacing or the use of vented cable trays can better dissipate heat and mitigate the effects.

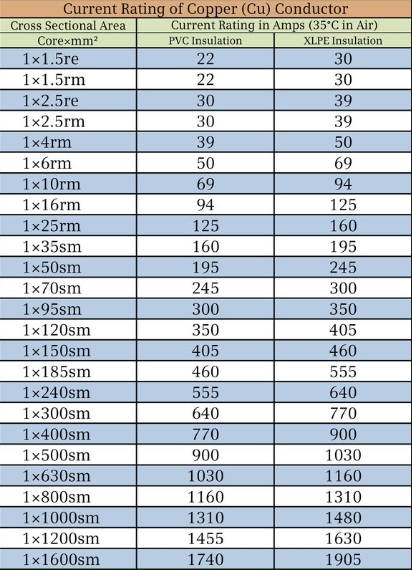

Below are the current ratings of cu cables under different conditions of PVC and XLPE insulation for your reference:

Current Rating of cu Conductor

Similarly, another common cable CCA is used in a number of applications. However, it is subtly different from pure copper wires. In order to choose the cable that is more suitable for your project, follow us and see how the two differ!

What is the difference between CCA and copper?

The variances between copper-clad aluminum (CCA) cables and pure copper (CU) cables significantly impact their usage and efficacy within electrical and telecommunication infrastructures.

  • The most fundamental difference lies in their composition.

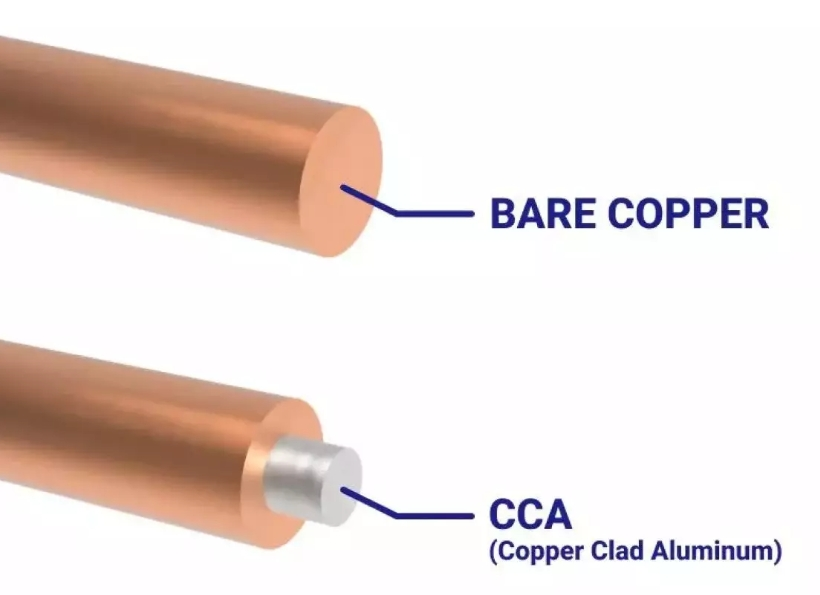

cca vs copper

Material Composition

Cables crafted from pure copper boast a composition that is entirely copper. It offers outstanding electrical conductivity. In contrast, CCA cables feature a core of aluminum encased in a copper coating. This design merges the lightweight characteristic of aluminum with the superior conductivity of copper. While the copper exterior enhances the efficacy of CCA cables over those made solely of aluminum, their performance doesn’t quite match up to that of cables made entirely of pure copper.

  • Speaking of efficiency, electrical conductivity is another critical point of divergence.

Electrical Conductivity

Pure copper cables exhibit excellent conductivity, which translates to more efficient signal transmission with minimal energy loss. CCA cables, due to their aluminum core, inherently have lower conductivity. In practical terms, this means we often have to consider the increased resistance and potential signal loss when opting for CCA in sensitive installations.

  • The difference in material composition naturally affects the weight and flexibility of the cables.

Weight and Flexibility

CCA cables are significantly lighter. This characteristic favors installations with large spans or where weight plays a key role. However, it should be noted that the aluminum core of CCA cables is more brittle than the ductility of pure copper. Consequently, they are more prone to breakage under stress.

  • Finally, cost considerations significantly influence the choice between CCA and CU cables.

Cost and Application

CCA cables are often more affordable due to the lower cost of aluminum, while copper cables are more expensive because they contain pure copper. This is especially true in applications that require high conductivity and durability. As we decide between these two types of cables, it is often necessary to balance the cost constraints of the project with the performance requirements.

In sum, when comparing CCA to pure copper cables, the decision involves a trade-off between cost, performance, weight, and flexibility. For most of our projects, understanding these differences has been crucial in making informed choices that align with the specific needs and constraints of each application.

Also read more content details related to copper cable comparison:

OFC VS CCA Wire: What Is The Real Difference

Cu Cable Conclusion

CU cables are an excellent choice for those seeking high conductivity and durability against external elements. Although there may be some disadvantages, the benefits outweigh them significantly. CU cables can handle high currents with ease. So far, it is emerging as a trusted choice for a variety of applications.

For those in the market for quality CU cables, it is advisable to consider TOP 10 China cable reputable manufacturers known for their commitment to quality and performance. In this regard, ZW cable manufacturer emerges as a recommended provider. Try upgrading your wires with CU cables and experience the difference!
