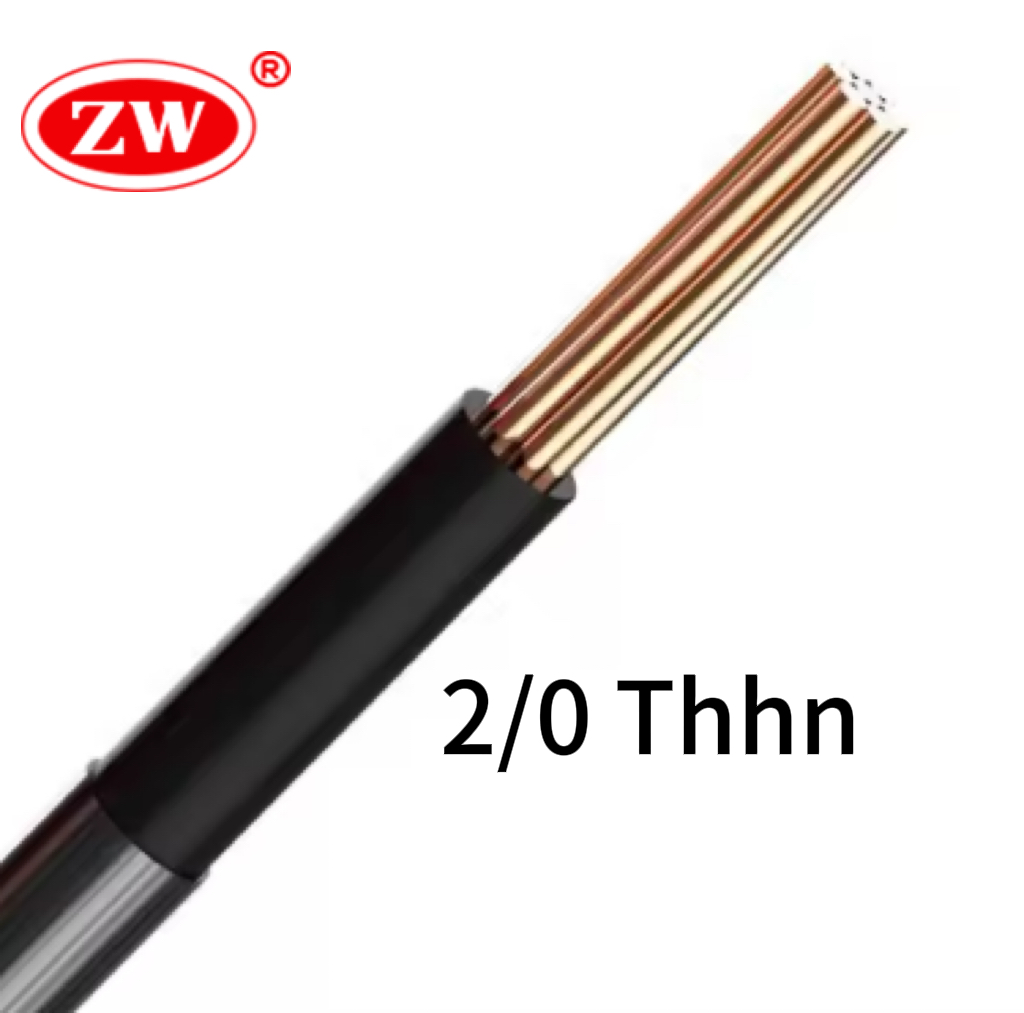

600V PVC/Nylon Copper Conductor 2/0 THHN Wire

  • According to UL, ASTM
  • Place of Origin: Henan, China
  • In Stock
  • HS Code: 8544492100
  • Packing: 1000 Meters
  • Low Voltage
8 $ / Meter

5

2/0 THHN wire is a general purpose building wire that meets the National Electrical Code (NEC). It belongs to the thermoplastic, high heat resistant nylon covered (THHN) series. 2/0 AWG THHN wire can be used as exposed or concealed wiring and in conduits (except cable trays) installed in dry or wet locations. The conductors are stranded in a special process with 99.9% purity to increase conductor flexibility. The nylon coating provides excellent heat resistance and the 2/0 THHN copper wire offers heat resistance up to 90°C in dry conditions.

Product Features:

  • Wear resistance
  • Cold resistance
  • Oil resistance
  • Acid and alkall resistance
  • High flame retardant efficiency (VW-1 standard)

Construction:

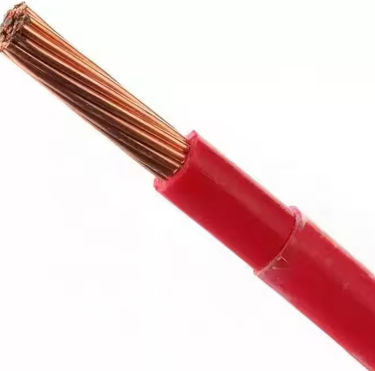

2/0 thhn wire

  • Conductor: Soft plain copper, conforms to ASTM B3, B8.
  • Insulation: PVC (color can be black, red, blue, green, white, orange, etc.)
  • Jacket: Nylon

2/0 THHN Wire Specification:

  • Voltage Rating: 600V
  • Temperature range: -10°C – +90°C (Fixed installation)
  • Number of strands (Nos): 19
  • Insulated Thickness(mm): 1.27 mm & 0.050 inches
  • Jacket Thickness(mm): 0.18 mm & 0.007 inches
  • 2/0 thhn wire diameter: 13.16 mm & 0.518 inches
  • Reference Weight (Kg/Km): 691
  • Current carrying Capacity: 145 Amps at 60ºC; 175 Amps at 75ºC; 195 Amps at 90ºC.
