14mm2 Copper/PVC/Nylon THHN Electric Wire
- According to UL Standard
- Approved by ISO, CE, SGS, UL
- Place of Origin: Henan, China
- HS Code: 8544492100
- MOQ: 1000 Meters
- Low Voltage
3.0 $ / Meter
5
- Product Details
The 14mm² THHN Wire is a high performance electrical wire designed to high standards. It is made of high-quality copper conductors with thermoplastic insulation and a robust nylon jacket. It is suitable for circuits up to 600 volts and complies with the NEC for residential, commercial, and industrial buildings. 14mm² copper building wire can be employed in many installation conditions such as indoor, outdoor, overhead, conduit and cable tray.
Product Features:
- Low coefficient of friction
- International standard wire
- Flexible and lightweight
- A smooth nylon jacket facilitates installation
- Resistant to Oil/Gasoline/abrasion/moisture/heat/chemicals/grease.
- Specification
- Number of cores: Single Core
- Voltage Rating: 600V
- Temperature Range: -10°C – +90°C (Fixed installation)
- Current Carrying Capacity: 95 Amps at 90ºC wet/105 Amps at 90ºC dry
- Number of Strands (Nos): 19
- PVC Insulated Thickness(mm): 0.8
- Jacket Thickness(mm): 0.13
- 14mm2 Thhn Wire Diameter(mm): 6.66
- Reference Weight (Kg/Km): 151.77

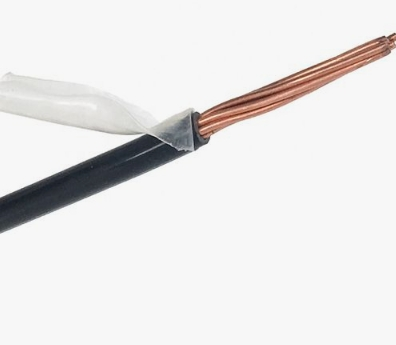

- Construction
- Nylon Jacket
- PVC Insulation (color can be black, red, blue, green, white, orange, etc.)
- Stranded Copper Conductor, conforms to ASTM B3, B8.
- Parameter
FAQ
Is 14mm² THHN the same as 14 AWG THHN?
No, they are vastly different. 14 AWG is a small wire (2.08 mm²) for lighting. 14mm² is a large cable, roughly equivalent to 6 AWG (13.3 mm²). It is used for sub-mains and heavy equipment. Confusing these two can lead to dangerous overloading.
What is the ampacity (current rating) of 14mm² THHN?
According to standard metric tables (e.g., PEC/IEC), 14mm² THHN is typically rated for 75 Amps at 75°C and up to 90 Amps at 90°C in dry locations. It is commonly protected by a 60A or 70A circuit breaker depending on the terminal temperature rating.
Can I use 14mm² THHN for a residential service entrance?
Yes, for smaller services. It is often used as the service entrance wire for small apartments or as a sub-feeder to a secondary distribution board.
