Submersible pump cables are the lifeline of water systems.These cables power pumps in applications ranging from residential wells using submersible well pump wire to industrial dewatering systems requiring heavy-duty configurations. However, selecting the wrong size or insulation type can lead to voltage drop, premature wear, or system failure. This guide provides actionable insights for choosing cables tailored to your project’s depth, environment, and power requirements that will help optimize the setup of your next project.
What will be discussed in this article?
- The different types of submersible pump cables and their applications
- How to use a submersible pump cable size calculator or submersible cable sizing chart
- Installation and maintenance tips
- How to find quality cables?
Understanding Submersible Pump Cable: Types and Applications
Submersible pump cables face relentless challenges: crush pressure, abrasive deposits and constant moisture. Mismatches between types and applications (such as using rigid round cables in shallow irrigation pools) can lead to cracked insulation or premature failure. A comparison of the following table gives a clear idea of the pump systems for which the different submersible pump cable types are suitable.
Types of Submersible Pump Cables
| Cable Type | Description | Common Use Cases | Example Specifications |
| Twisted-Pair Copper | Lightweight, affordable, with less protection against abrasion or chemicals. | Shallow wells, light-duty applications | Submersible pump wire 12/2 |
| Flat Submersible Cable | Durable, flexible, with PVC insulation; easy to install in tight spaces. | Residential wells, irrigation systems | Submersible pump wire 12/3, 10/2 |
| Round Submersible Cable | Robust, circular cross-section, better for high-pressure environments. | Deeper wells, industrial applications | 10/3 with ground |
| Heavy-Duty Flat Cable | Double-jacketed for extreme conditions, resistant to abrasion and chemicals. | Mining, deep wells, harsh environments | 10/3 with ground |
Twisted-Pair Copper Cables: These are cost-effective and suitable for shallow wells or less demanding setups. They are less resistant to environmental wear, making them ideal for smaller systems like a submersible pump wire 12/2 for a home well.
Flat Submersible Pump Cables: The most common type, these cables are flexible and feature PVC insulation, making them perfect for residential wells and irrigation systems. For example, a submersible pump wire 12/3 is often used for 240V systems requiring a neutral wire, while a 10/2 submersible pump wire suits simpler setups.

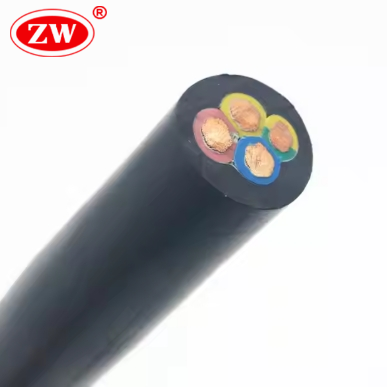

Round Submersible Pump Cables: With a circular cross-section, the cables are more robust and better suited for deeper wells or high-pressure environments. A 10/3 submersible pump wire is a common choice for industrial pumps.
Heavy-Duty Flat Cables: Designed for extreme conditions, these double-jacketed cables are used in mining, deep wells, or industrial settings where abrasion and chemical resistance are critical.
Other related cables, such as sprinkler control or UF irrigation cables, share similar durability traits but are not specifically designed for sub mersible pumps.
Selecting the Right Size and Type
Key Factors in Cable Selection
Voltage and Amperage: The cable must match the pump’s electrical requirements. Below is a general guide for cable sizing based on voltage and amperage:
| Voltage | Amperage | Recommended AWG | Example Cable |
| 120V | Up to 12 amps | 12 AWG | Submersible pump wire 12/2 |
| 12-16 amps | 10 AWG | Submersible pump wire 10/2 | |
| 16-24 amps | 8 AWG | ||
| Above 24 amps | 6 AWG | ||
| 240V | Up to 15 amps | 14 AWG | |
| 15-20 amps | 12 AWG | Submersible pump wire 12/3 | |
| 20-30 amps | 10 AWG | Submersible pump wire 10/3 | |
| 30-40 amps | 8 AWG | ||
| 40-55 amps | 6 AWG | ||
| Above 55 amps | 4 AWG |
Cable Length and Well Depth: Longer cables or deeper wells require heavier gauges to minimize voltage drop and withstand pressure. For instance, a 200-foot well may need a 10/3 submersible pump wire instead of a 12/3 for the same pump.
Environmental Conditions: Consider exposure to chemicals, temperature extremes, or abrasion. PVC insulation is cost-effective, while EPR (Ethylene Propylene Rubber) offers better chemical resistance for industrial use.
Certifications: Opt for UL-listed Type THW cables with a UL 83 rating, designed for wet locations and submersible applications.
Using Size Calculators and Charts
To simplify selection, use a submersible pump cable size calculator. The tool factor in pump power, voltage, amperage, and cable length to recommend the appropriate gauge. For example, a 240V pump drawing 25 amps over 100 feet might require a 10/3 flat submersible pump cable. Always consult the pump manufacturer’s specifications for accuracy.
Installation and Maintenance Tips for Submersible Pump Cables
Master the following installation and maintenance tips for submersible pump cables to make your system last!
Installation Best Practices
Our installation process prioritizes accuracy to safeguard cable integrity and system performance. We begin by securing the pump with rubber torque catchers to prevent movement, which can cause the cable to rub against the well casing and fray. To further shield the cable, we threaded it through 3/4-inch black polyethylene tubing and secured it with plastic ties, as we did for the deep-well installation, where rough casing poses a risk. Also follow the manufacturer’s guidelines to the letter, using only waterproof, submersible-rated connectors and UL-recognized cables (Model THW, UL 83 rating) to comply with the National Electrical Code (NEC).
How to splice submersible pump cable?
Splicing submersible pump cables requires extra care as water ingress can cause electrical failure. Where this is unavoidable, such as when extending cables for deep wells, we use submersible grade connectors and solder the connections, then seal them with waterproof heat shrink tubing. The joint is then tested with a multimeter to confirm electrical continuity and insulation integrity to prevent potential short circuits. It is always recommended to consult a professional or manufacturer’s instructions to avoid safety hazards due to improper splicing.
Maintenance tips
When replacing the pump check the cable for signs of wear such as cuts or corrosion so that an undamaged cable can be reused. After installation, we test the system with a multimeter to verify correct voltage and listen for unusual noises to keep smooth operation.
Where to Buy and What to Look For?
Where to Buy-Finding “Submersible Pump Cable Near Me”
- Local Electrical Supply Stores: Stock standard sizes like 12/2, 12/3, or 10/3 submersible pump wires for immediate purchase.
- Online Retailers: Platforms like Amazon offer a wide selection, including specialty cables, with home delivery.
- Manufacturers: Companies like ZW Cable provide custom lengths and high-quality options, such as 4 core submersible pump cable.
What to Look For
- Certifications: Ensure the cable meets standards like UL, IEC, or local regulations.
- Specifications: Match voltage, amperage, and insulation to your application.
- Warranty and Support: Choose suppliers offering warranties and technical support.
- Price: Submersible pump cable price varies by length, gauge, and type. For example, 100 feet of 12/2 flat submersible pump cable may cost $50-$100, while heavier gauges or longer lengths are pricier.
FAQs
Q1: Can I use a flat submersible pump cable in a deep well?
Flat cables are best for shallow applications (<100 ft). For deeper wells, choose a round submersible pump cable to prevent kinking and abrasion.
Q2: How do I calculate voltage drop for a 1HP pump 500 feet away?
Use the formula above or an online submersible cable size chart. For 1HP (10A at 240V), a 6 AWG cable minimizes drop to <3%.
Q3: Is splicing submersible pump cable safe?
Yes, if done with waterproof connectors. Poor splices risk leaks and electrical faults—always pressure-test the joint before use.
