Stripping Multi Core Cable means removing the outer sheath and core insulation to the correct length without nicking strands, damaging the shield, or leaving excess bare copper. The right method is to confirm the cable construction, use a tool matched to the insulation and conductor sizes, strip to the terminal or ferrule requirements, and inspect the cable end before crimping or connecting.
What Does Stripping Multi Core Cable Actually Mean?
Wire Stripping is a controlled preparation process that must match the cable construction and the termination method.
What wire stripping means in multi core cable work
In multi core stripped cable work, cable stripping means removing the outer sheath to a controlled length and then removing insulation from the individual cores so they can enter ferrules, terminals, or connector contacts correctly. A correct result leaves the strands intact, the insulation edge clean, and the exposed conductor length matched to the termination requirement.
Cable stripping vs. cable dismantling
Cable stripping is a controlled preparation for connection. Cable dismantling is broader disassembly work for inspection, repair, or analysis. Stripping removes only what the termination needs, while dismantling may go deeper into the cable structure. If the jacket is cut aggressively or pulled off by force, the inner cores, fillers, foil, braid, or drain wire can be disturbed before termination begins.
Why stripping errors causes termination failures
Stripping errors cause termination failures because they change the conductor and insulation condition before the terminal is installed. Nicked strands reduce mechanical strength and contact area. Uneven stripping can leave insulation inside the crimp zone. Over-stripping can leave bare copper outside the contact area. On shielded cable, accidental damage to foil or braid can weaken EMC continuity or grounding performance. These are not cosmetic defects. They directly affect connection quality.
What Should You Check Before Stripping a Multi Core Cable?
Before stripping a multi core cable, confirm the cable build, the sheath and insulation material, the required strip length, and whether any shield or drain wire must be preserved. These checks determine tool choice and cutting limits.
Cable construction: sheath, fillers, cores, and separators
Check the cable construction first. A multi core cable may include fillers, tapes, separator films, foil, braid, or drain wires in addition to the insulated conductors. In compact industrial cables, the distance between the outer sheath and the inner cores may be small, so careless scoring can damage core insulation immediately. If you do not know what sits under the sheath, you do not know how much cutting margin you actually have.
Sheath and insulation material: PVC
Check the material before selecting the stripping method. PVC is usually easier to score cleanly. Choosing knives or blades suitable for PVC materials is more conducive to cutting.
Required strip length for ferrules, terminals, or connectors
The length of stripping wires should be set by the termination, not by feel. Ferrules, spring terminals, screw terminals, and connector contacts do not all require the same exposed conductor length. If the strip length is too short, the conductor may not seat fully. If it is too long, bare copper may remain outside the clamping or crimp area. Check the strip length from the ferrule, terminal, or connector requirement before any insulation is removed.
Whether the cable shield or drain wire must be preserved
On shielded cable, the shield is not a disposable material. The foil, braid, or drain wire may be required for grounding, EMC continuity, or connector assembly. If it is cut accidentally while opening the outer sheath, the cable may still appear usable, but it no longer meets the application requirements.
How Do You Choose the Right Multi Conductor Cable Stripping Tool
The right cable stripping tool is the one that gives repeatable results with the least risk of conductor damage. Cable wire stripping tool choice depends on cable size, conductor class, insulation type, and production volume.
When a cable stripping knife is still the right choice
A cable stripping knife is still useful when the cable is large, irregular, or being processed in the field where dedicated stripping tools do not fit well. In skilled hands, it can be effective for outer sheath work. But it should not be the default tool for every cable. On fine-stranded conductors or compact multi core builds, the risk of cutting too deeply is much higher.

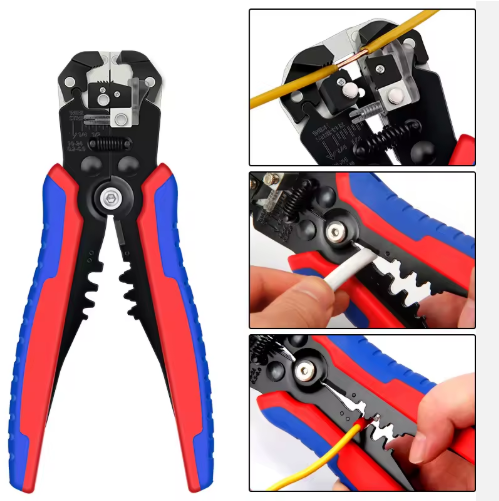

When adjustable stripping tools are better than knives
For most assembly work, adjustable stripping tools are better than knives because they give cleaner, repeatable strip lengths and reduce variation between operators. They are especially useful for small cross-sections, flexible conductors, and repeated preparation work where consistency matters.
When automatic stripping or strip-and-crimp equipment makes sense
Automatic wire stripping tool and strip-and-crimp equipment make sense when conductor sizes repeat and production volume is high. Automatic systems can improve efficiency and reduce fatigue-driven inconsistency, but they still require regular checking of strip length, blade condition, and result consistency.
How to Strip Multi Core Cable Step by Step
A correct stripping process moves from the outside inward. Each step should protect the next layer and make the final cable end easier to inspect before termination. The following video demonstrates a practical stripping process, including correct strip length and handling of multi-conductor cable.
Step 1: Confirm the cable build and strip length
First, confirm the cable construction and the required strip length. Identify fillers, separator films, foil, braid, or drain wires, and define the amount of jacket and conductor insulation to be removed.
Step 2: Mark and secure the cable before cutting
Second, mark the removal point and secure the cable before cutting. A cable that twists or slips under the blade is more likely to result in an uneven score line or a cut that goes deeper on one side.
Step 3: Score the outer sheath lightly and evenly
Third, score the outer sheath lightly and evenly so only the jacket is cut. Several light passes are safer than one deep cut, especially on thick or tough sheath materials.
Step 4: Open the sheath and remove fillers carefully
Fourth, open the sheath carefully and remove fillers or separator materials without disturbing the cores. Once the jacket is scored, it should be bent or peeled back in a controlled way. Excessive pulling can tear the jacket unevenly, disturb the lay of the cores, or damage shielding components.
Step 5: Strip the individual cores with the correct setting
Fifth, strip the individual cores with a tool setting matched to the conductor size and insulation type. The conductor should remain round and intact for reliable entry into the terminal or ferrule. If the insulation stretches before release, or if the strands flare badly, the setting or tool choice should be corrected before continuing.
Step 6: Inspect the cable end before termination
Sixth, inspect the cable end before termination. Check strand condition, strip length, insulation edge, and shield condition. Inspect before crimping or clamping, not after. If the stripped result is inconsistent, correct the tool setting and re-strip the conductor rather than trying to force the termination to work.
How Do You Strip Small or Fine-Stranded Cores Without Damage?
Fine-stranded conductors are less forgiving than larger or stiffer wires. Even slight strand loss can weaken pull force and reduce crimp quality, so the tool and handling method matter more here.
Choose a stripping tool that matches small conductor sizes
Choose the best wire stripping tool for electrician that matches the actual conductor range. Oversized tools often fail to properly control fine strands . Small conductors need a tool that cuts insulation cleanly without biting into the copper.
Set the blade depth or stripping range correctly
Set the blade depth or stripping range so the insulation is fully cut, but the copper is not touched. Incorrect settings, worn blades, or poor handling can leave marked insulation, damaged strands, or incomplete removal.
Support the wire and remove insulation with controlled force
Support the wire close to the stripping point and remove the insulation with controlled force. Do not jerk, twist, or bend the conductor heavily. The goal is to keep the strand geometry stable before termination.
Inspect the stripped end and re-strip if any strands are damaged
If any strands are cut, nicked, or flattened, cut back and re-strip. A damaged fine-stranded conductor should not be considered as acceptable just because it still fits into a ferrule.
What Does a Good Stripping Result Look Like?
A good stripping result is one that can move directly to termination without correction. The conductor must be intact, the insulation edge must be clean, and the strip length must match the intended terminal.
Intact conductor strands without nicks or cuts
A good result keeps the strands intact, with no shaved copper, flattened section, or visible blade damage. Damaged strands reduce both electrical and mechanical strength.
Clean insulation edges without tearing or stretching
A good result leaves a clean insulation edge without tearing, stretching, or tapered stripping. An uneven edge can reduce insulation support inside the terminal or ferrule.
Correct strip length for the intended termination
A good result has the correct strip length for the terminal, ferrule, or connector being used. It should be judged by fit, not by appearance alone.
A cable end that is ready for ferrules, terminals, or connectors
A good result yields a cable end ready for ferrules, terminals, or connectors immediately. If trimming, re-cutting, or correction is still needed, the stripping process is not yet under control.
Conclusion
For buyers sourcing multi core cable for industrial wiring, control systems, harnesses, or connectorized assemblies, good stripping results depend on both workmanship and cable consistency. At ZW Cable, the practical question is not only whether a cable meets a datasheet, but whether it can be prepared cleanly, terminated consistently, and processed efficiently in real production.
FAQ
Q: What is the safest way to strip multi core cable?
A: The safest method is to first identify the cable construction, including sheath thickness, fillers, and any shielding layers. Mark the required strip length based on the terminal or ferrule specification, not by estimation. Score the outer sheath lightly to avoid cutting into inner cores, then open it gradually instead of pulling it off by force. Strip individual cores using a tool matched to conductor size and insulation type. Finally, inspect the result before termination to confirm that strands are intact and strip length is correct.
Q: How do I avoid cutting the inner cores when opening the outer sheath?
A: Avoid deep cutting. Use light, even scoring around the sheath instead of forcing the blade inward. If the cable has a thick or tough jacket, apply multiple shallow passes rather than one aggressive cut. After scoring, bend or flex the cable to open the sheath instead of pulling it apart. This reduces the risk of damaging inner insulation, fine strands, or shielding layers.
Q: What should I do if a few strands are nicked?
A: If any strands are nicked, cut back the conductor and re-strip. Even minor strand damage reduces mechanical strength and affects crimp quality and electrical contact. This is especially critical for fine-stranded conductors, where small damage can significantly reduce pull-out force and reliability. Do not try to reuse a damaged conductor just because it still fits into a ferrule or terminal.
Q: When should I use an automatic wire stripping tool?
A: Use an automatic stripping tool when conductor sizes are consistent, production volume is high, and repeatability is important. These tools improve efficiency and reduce operator variation, but they must be properly set for conductor size and insulation type. Regular checks are still required to ensure correct strip length and to prevent strand damage, especially when switching between cable types.
Q: Is ferrule size related to stripping quality?
A: Yes, ferrule size and strip length must match for proper termination. The stripped conductor should fully fill the ferrule barrel without excess strands folding back or copper protruding excessively. If the strip length is too short, the conductor may not reach the full crimp zone. If it is too long, exposed copper may remain outside the ferrule. Both conditions can reduce connection reliability and should be corrected before crimping.
