Speaker Cable VS Instrument Cable: Essential Differences to Know

speaker cable vs instrument cable

When setting up a home studio or preparing for live performance, speaker cables and instrument cables are often chosen as the two cable types that enhance sound quality. So can you tell exactly which type? Despite their similar appearance, the two types of cables serve very different purposes, and substituting one for the other can result in poor sound quality or even damage to your equipment.

Let’s take a look at these two cable types and examine their uses and differences in more detail.

What is speaker cable?

Speaker wire is essential for creating the electrical connection between a speaker and an amplifier source. Typically made of copper, either stranded or solid, it features two insulated wires (positive and negative) in a jacket. Different insulation materials like PVC, Teflon, and polyethylene each offer unique benefits such as durability, heat resistance, and affordability.

Overview of Speaker Wire

Insulation: PVC is durable and flexible, while Teflon is heat-resistant and ideal for high-power audio equipment. Polyethylene offers excellent electrical properties and moisture resistance. Length: Shorter wires reduce signal loss and electromagnetic interference. Gauge (AWG): Thicker wires (e.g., 12 AWG, 14 AWG) handle more power with less resistance, assuring better performance.

14 gauge speaker wire

Also read more about speaker cable: The Best Guide to Speaker Wire in 2024

What is instrument cable?

Instrumentation cables are specialized cables designed for low-power signal transmission in industrial settings. Cables connect sensors and devices to control units, securing accurate data collection and process control. Built to withstand temperature changes, chemical exposure, and physical stress, they feature twisted wire pairs to minimize electromagnetic interference.

Overview of Instrument Cable

Instrumentation cables are meticulously constructed for reliable signal transmission. They include a conductor (bare or tinned copper, stranded or solid), insulation(PVC, XLPE, PE, silicone), and shielding (aluminum foil, tinned copper braid, or both) around each conductor pair to prevent interference, ensuring precision in data transfer.

instrumentation cable

Also read more about instrument cable: What Are They and Differ Other cables

Speaker Cable VS Instrument Cable: What’s The Difference?

For first-time users, this can sometimes be confusing. The two cables have one similarity: they share the same connector – a 1/4-inch plug. Other than that, there are significant differences in their use and design

How do we recognize them in the first place?

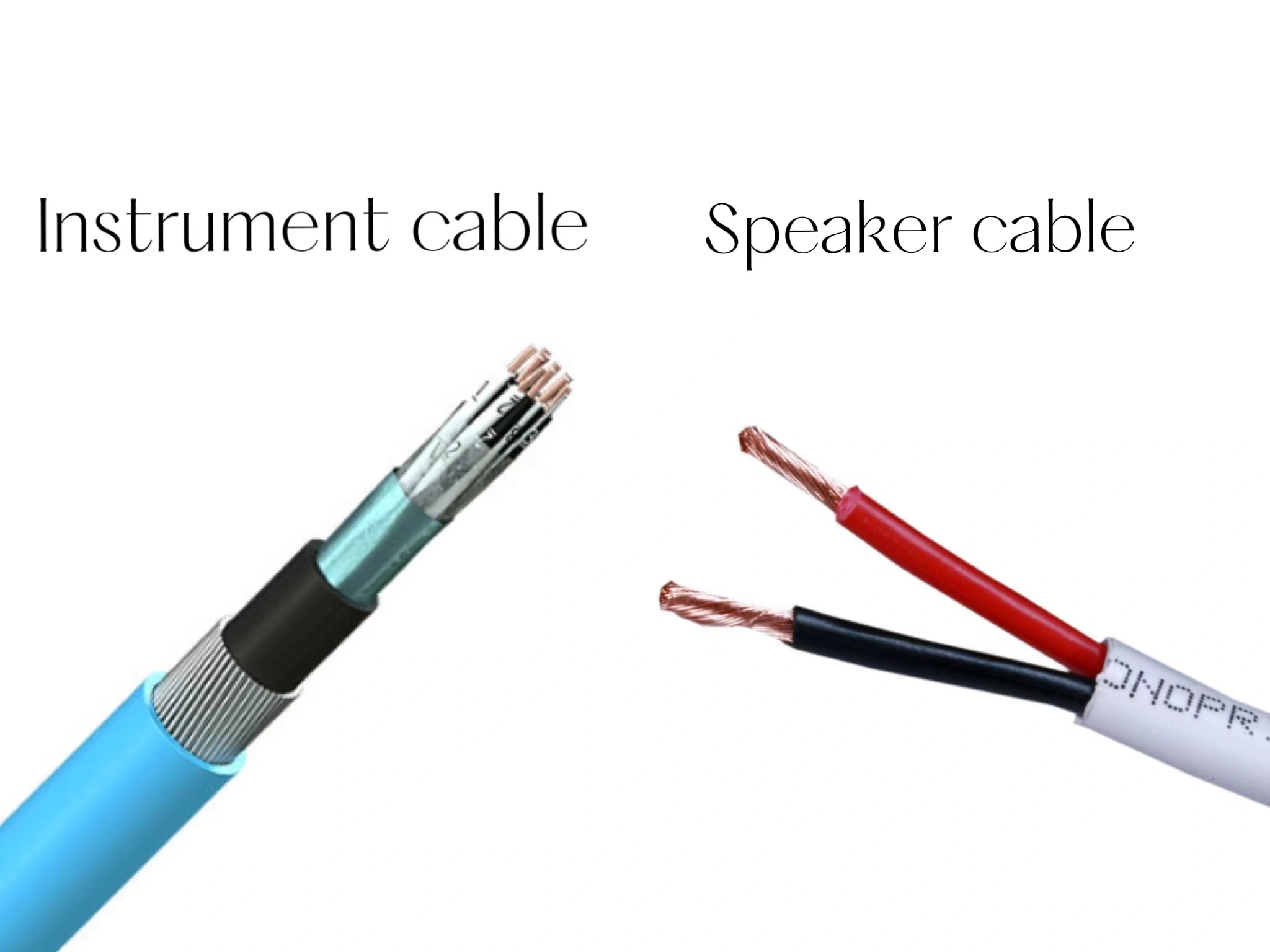

speaker wire vs instrument wire

Now, can you tell which is the speaker cable and which is the instrument cable in the picture provided above?

Often cable manufacturers label their products according to their intended application, but recognizing the difference between the two can still be difficult for the untrained eye.

To differentiate between instrument cables and speaker cables we first need to examine the internal structure.

Unscrewing the end of the cable and examining its internal components is the surest way to recognize and differentiate between these cable types. Instrument cables typically contain one or two wires that are shielded from interference with foil wraps or braided mesh. In contrast, speaker cables consist of two separate wires, one connected to the sleeve and the other to the tip, usually color-coded in black and white or black and red, without any shielding.

1. Construction and Design:

Instrument Cable: Comprises a signal wire and a shield to carry low-power, high-impedance signals. The shield helps to prevent noise interference, essential for transmitting unamplified signals from an instrument to an amplifier.

Speaker Cable: Contains two identical wires designed to handle high-power, low-impedance signals. The larger wire diameter keeps efficient signal flow from the amplifier to the speaker, reducing resistance and preventing energy loss.

2. Purpose and Application:

Instrument Cable: Used primarily to connect instruments (like guitars) to amplifiers. It’s designed to carry weak, unamplified signals that require protection from external electromagnetic interference.

Speaker Cable: Used to connect amplifiers to speakers. It carries strong, amplified signals, requiring sturdy construction to handle higher current and voltage without significant signal degradation.

What Happens If You Use the Wrong Cable?

A common question in the use of audio and sound systems is: Can l Use an Instrument Cable as a Speaker Cable? In fact, using the wrong type of cable can lead to a variety of problems, ranging from equipment damage to poor sound quality. Here we can observe what happens when an instrument cable is used as a speaker cable and when a speaker cable is used as an instrument cable.

Using instrument cables as speaker cables:

Inability to handle high power signals-If an instrument cable is used to connect a high power guitar amplifier to a speaker cabinet, the cable may overheat because it cannot handle the high power. This can lead to melted insulation, short circuits and even fire hazards.

Potential overheating and malfunction- Using instrument cables in place of speaker cables for extended periods of time can cause severe wear and tear on both the cables and the equipment to which they are connected. For example, a bass amplifier pushing high power through an instrument cable can cause the cable to overheat. The cable fails and damage occurs to the amplifier and speaker assembly. Not only does this affect performance, it can also lead to costly repairs or replacements.

Using speaker cables as instrument cables:

Excessive noise and interference-When speaker cables are used as musical instrument cables, the lack of shielding can lead to excessive noise and interference. For example, using speaker cables to connect an electric guitar to an amplifier creates low-frequency hum and buzz, which degrades sound quality and makes it difficult to achieve a pristine tone.

Signal Attenuation-The unshielded nature of speaker cables makes them unsuitable for transmitting subtle signals from musical instruments. High-frequency detail is lost and overall signal attenuation occurs. For example, using speaker cables to connect a keyboard to a mixing console can result in a loss of signal clarity, which can adversely affect performance.

Therefore, we have made it clear that instrument cables and speaker cables are not interchangeable and cannot be used as substitutes.

Conclusion

Using the correct type of cable is beneficial in maintaining optimum cable performance and preventing damage to audio equipment. Instrument cables and speaker cables serve different purposes, and we avoid these common pitfalls by understanding the potential consequences of using the wrong cables, so be sure to check the specifications and intended use of your cables.

For product purchase details, ZW cable provides you with the most professional insights and the best quality products. We welcome your inquiry at any time!
