When people search “solar cable size” or “4mm or 6mm for solar?”, what they really want is peace of mind:
Will this cable run safely?
Will I lose power in the wiring?
Is this size acceptable for 25+ years in the sun?
You can buy the most efficient panels on the market and the most sophisticated MPPT charge controller, but if you connect them with undersized cable, you are essentially throwing that expensive energy into the dirt as heat. That’s the last thing anyone wants. So, let’s talk about how to pick the right cable size.
If you want a broader overview of solar cable materials and types, check out our main guide: All About Solar Cable.
1. Sizing Solar Cables: Ampacity vs. Voltage Drop
When we size a cable, we are answering two different questions. Most people answer the first and ignore the second.
Question 1: Is it Safe? (Ampacity)
Ampacity is the maximum current a cable can carry before it melts its insulation. This is a safety limit. If your solar panel produces 9 Amps and your cable is rated for 15 Amps, you are “safe.” The house won’t burn down.
Pro Tip: According to NEC Article 690.8, you must size solar circuits at 156% of the short-circuit current (Isc) to handle those rare, sunny moments when your panels produce maximum power.
Question 2: Is it Efficient? (Voltage Drop)
Voltage Drop is the amount of electrical pressure lost as resistance along the wire. This is an efficiency limit. A cable that is “safe” (won’t melt) can still be “inefficient” (losing 10% of your power).
Industry Standard: We target a maximum 3% voltage drop for the entire DC run. Ideally, keep it under 1% for critical links.
Why does this matter more for DC than for AC? DC power is especially sensitive to resistance. Unlike AC, DC can’t “jump gaps” or easily overcome resistance—it needs a clear, wide path. You may refer to our comparative analysis of AC and DC currents.
2. How to Calculate Solar Cable Size?
Rather than just picking a number from a generic chart, let’s walk through how to calculate the right cable size for your specific solar setup—step by step.
Step 1: Determine the Current (Amps)
Look at the label on the back of your solar panel. Find the Isc (Short Circuit Current).
Example:
Isc = 10 Amps
Safety Factor: 10 A × 1.56 (NEC requirement) = 15.6 Amps
Step 2: Determine the Distance
Measure the total length of the wire run from the panels to the controller. Remember, electricity travels in a loop. In DC circuits, you must account for the positive wire and the negative wire.
Distance: 50 feet one way = 100 feet total circuit length.
Step 3: Calculate the Voltage Drop
Use this simplified formula for copper wire: Vdrop = (K × I × L) / A
K: Resistance constant (12.9 for copper).
I: Current (Amps).
L: Length (Total round trip in feet).
A: Cross-sectional area of the wire (Circular Mils).
If this math feels daunting, here is the “Shortcut”: Distance kills voltage. If your run is over 50 feet, bump up one wire size. If it is over 100 feet, bump up two sizes.
3. Common Solar Cable Sizes
In the US, we use American Wire Gauge (AWG). In Europe and elsewhere, we use mm². Here is how the common sizes stack up for solar applications.
| AWG Size | Metric Equiv.
(mm²) |
Ampacity
(90°C) |
Typical Use Case |
| 12 AWG | 4 mm² | 30 A | Interconnecting panels (Jumpers) |

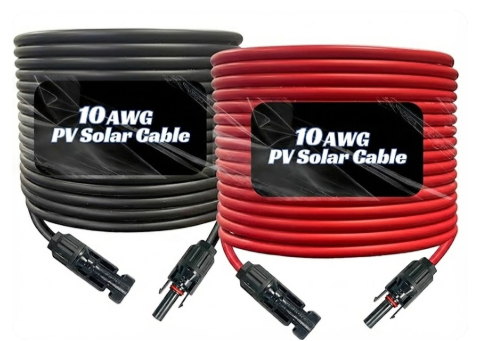

| 10 AWG | 6 mm² | 40 A | Standard home run to roof box |
| 8 AWG | 10 mm² | 55 A | Long runs or parallel strings |
| 6 AWG | 16 mm² | 75 A | Combiner box to Charge Controller |
| 4 AWG | 25 mm² | 95 A | Main Battery Bank Interconnects |
Note: Ampacity ratings vary based on insulation type. This assumes 90°C rated solar photovoltaic PV wire, not standard building wire.
4. Temperature Derating: The Hidden Factor
Here’s where real-world experience pays off. Solar cables live on roofs. Roofs get hot—often 30°C to 40°C hotter than the ambient air temperature. Heat increases resistance. If you run a cable in a conduit across a black asphalt roof in Arizona, that cable is baking.
The Derating Rule: As temperature rises, the cable’s ability to carry current drops. A 10 AWG wire rated for 40 Amps at 30°C might only be good for 20 Amps at 70°C.
If you ignore temperature derating, your insulation will degrade prematurely, leading to cracks and ground faults. This is why we almost exclusively use PV Wire with thick, cross-linked insulation rather than standard THHN. For a detailed comparison of why standard wire fails in these conditions, read choosing the right wire for solar: PV wire vs THHN wire.
5. Picking the Right Type of Solar Cable
Once you know the size, you need the right type.
- PV Wire (UL 4703): The gold standard. Double-insulated, sunlight-resistant, rated for direct burial. Mandatory for transformerless inverters (ungrounded arrays).
- USE-2 (UL 854): The older standard. Good, but often has a thinner jacket and less crush resistance.
- THHN/THWN-2: Only suitable if run strictly inside conduit. Never expose this to direct sunlight.
Still confused by the alphabet soup? Our guide on solar cable types breaks down which is best for your setup.
6. A Real-Life Example: Avoiding Common Mistakes
Here I’ll share a common troubleshooting scenario that occurred with one of my clients.
This client had installed four separate strings of solar panels, each wired with 10 AWG cable—which was exactly right for each string on its own. But after combining all four strings in a single combiner box, they continued the run to the inverter with the same 10 AWG wire.
On paper, this wire could technically handle the total current (32 amps, with a 40-amp rating for 10 AWG), so nothing overheated or melted. But in practice, the long 100-foot run caused a huge voltage drop—over 8%. The result? The inverter kept shutting down with “Low DC Voltage” errors, and the system wasn’t producing nearly as much power as it should have.
The solution was simple. we swapped out the 10 AWG wire for a much thicker 4 AWG cable on the main run. Instantly, the voltage drop dropped to just 1.5%, and the system started running at full capacity. It’s a great reminder that when you combine multiple strings or sources, your cable needs to be sized up accordingly. Otherwise, you could be losing a surprising amount of your solar power before it ever reaches your inverter.
Final Thoughts
Every foot of undersized wire acts like a resistor, converting your generated solar energy into waste heat before it ever reaches the battery. While it might be tempting to save money by using a thinner 10 AWG wire on a long run, the cumulative cost of losing 5% to 10% of your daily power production far exceeds the one-time price of upgrading to 8 AWG or 6 AWG. Precision matters: size your cables carefully.
And don’t forget—the quality of the cable itself is just as important as the math. Beware of “Copper Clad Aluminum” (CCA) masquerading as pure copper. CCA can’t match the performance or longevity of real copper, and you’ll often need to oversize just to compensate. For peace of mind, source your cable from reputable manufacturers. Our list of the Leading 7 Solar Cable Manufacturers Worldwide is a great starting point.
Frequently Asked Questions (FAQ)
Q: Can I use solid copper wire for solar?
A: Technically, electricity flows through it, but practically, no. Solid wire breaks under the wind vibration and thermal expansion/contraction of a solar array. Always use stranded wire for DC solar connections.
Q: What happens if my solar cable is too big?
A: There is no electrical penalty for going “too big.” A larger cable has less resistance and less voltage drop. The only downsides are cost (copper is expensive) and compatibility (fitting a fat 4 AWG wire into a small breaker terminal).
Q: Does voltage affect cable size?
A: Indirectly, yes. Higher voltage systems (like 48V vs 12V) are more forgiving.
At 12V, a 1V drop is an 8% loss (Huge!).
At 48V, a 1V drop is a 2% loss (Acceptable). This is why large arrays are wired in series to raise the voltage, allowing you to use thinner, cheaper cable.
