A solar array is effectively a power plant constructed in a location designed to degrade it. Unlike the wiring protected inside climate-controlled walls, solar cables face a relentless, decades-long assault from UV radiation, thermal cycling, and moisture. The true measure of an installation isn’t whether the system powers on today; it is whether the insulation holds and the connectors remain secure fifteen years from now.
This creates a dangerous blind spot for many installers. It is easy to assume that because a system generates power on Day 1, the job is done. However, forensic data from failed systems rarely points to the expensive panels or inverters as the root cause. Instead, catastrophic failures almost always trace back to the “minor” details: a strained cable, a mismatched connector, or a cheap plastic clip that snapped after a few summers. These physical installation errors create the “invisible” faults.
So, the following content will be your go-to guide! From the right way to secure service circuits to the specialized tools you’ll need for crimping, we’ll walk you through all the key details you should pay attention to during installation.
1. Environmental Considerations and Material Selection
Before installation begins, it is critical to acknowledge the environment in which these components will operate. When standard electrical wire is installed inside a building, it resides in a thermally stable, protected environment. Solar cable does not enjoy this luxury.
- Thermal Expansion: On a rooftop, temperatures can swing by 50°C in a single day. Copper expands and contracts. If you pull your cables tight like a guitar string, that contraction will eventually pull the wire right out of the crimp or crack the connector housing.
- UV Degradation: The sun destroys plastic. Standard PVC jackets will turn brittle and crack within 3-5 years if exposed, so it’s essential to use PV1-F solar cable, H1Z2Z2K cable.
- Moisture: Even in “dry” climates, condensation forms inside conduits. Underground conduits are always wet.
This reality dictates that material selection is the first rule of installation. One cannot simply use standard building wire. It is essential to understand the distinction between standard wire and engineered solar photovoltaic PV wire. PV wire utilizes thicker, cross-linked insulation specifically engineered to withstand UV degradation and moisture intrusion. Using a non-specialized cable in this application is a fundamental engineering error.
2. Planning the Run: Sizing and Routing
Installation starts on paper (or the tablet). Before you climb the roof, you need to know exactly what gauge wire you are running.
The Voltage Drop Trap: A frequent oversight I encounter involves sizing cable based solely on ampacity (current-carrying capacity). While standard 4mm Solar Cable is typically sufficient to handle the current output of a PV string without overheating, it often fails the efficiency test over distance.
In DC systems, internal resistance is a constant drain on production. On runs exceeding 100 feet, a 4mm cable can suffer a 3% to 5% voltage drop—representing a permanent loss of revenue. This is the specific scenario where upgrading to 6mm solar cable (approximately 10 AWG) becomes mandatory. By increasing the conductor mass, you reduce resistance and ensure the energy generated on the roof actually reaches the inverter.
Before you cut a single foot of cable, you must calculate the resistance for your specific run length. If you aren’t sure where to start with the math, stop and review our guide on solar cable size. As a general rule of thumb from my experience: if you are debating between two sizes, always upsize.
Route Management
Plan your route to minimize exposure.
- Shadows: Cables should be routed behind rails whenever possible. Direct sunlight accelerates aging, even for UV-rated cables.
- Sharp Edges: Aluminum racking is sharp. I always use edge clips or rubber grommets where cables pass through or around rails. A vibrating cable on a sharp metal edge is a short circuit waiting to happen.
3. Rooftop Cable Management Standards
When inspecting a job site, cable management is often the most visible indicator of quality. Cables should never be allowed to rest on the roof surface. Wind causes constant, micro-level vibration in the array. If a cable touches the abrasive surface of a shingle or concrete tile, that vibration acts as sandpaper. I have investigated ground faults where the insulation was worn down to the bare conductor in less than two years. Always secure cables off the roof deck.
Selecting the Correct Fasteners
- Plastic Cable Ties: These should generally be avoided for primary support. Even “UV Rated” black ties rarely survive the full 25-year lifespan of a panel. They tend to embrittle and snap, causing the array wiring to droop.
- Stainless Steel Clips: These are the preferred industry standard. They bite onto the rail frame and hold the cable securely. However, care must be taken not to pinch the cable excessively, as the metal edge can cut into the insulation over time.
Managing Thermal Expansion
Remember what I said about copper expanding? when securing cables along a long row of panels, do not pull them tight. It is best practice to leave a small “service loop” or localized slack at the end of each rail section. This allows the copper to expand in the summer heat without exerting mechanical stress on the connectors.
4. Termination and Connectors
This is the single most common point of failure. According to fire investigations, a massive percentage of solar fires originate at the DC connector.
Here is a scenario I see constantly: The solar panel comes with a Stäubli MC4 connector. The inverter comes with an Amphenol connector. The installer buys a bag of generic “MC4-compatible” connectors from Amazon. They all click together, so it’s fine, right? Absolutely not. Just because they fit doesn’t mean they fit perfectly. Microscopic differences in the metal pins can cause contact resistance. Resistance creates heat. Heat creates fire.
- Always match connector brands. If the panel has Stäubli, I use Stäubli connectors for the home run. If I can’t match them, I cut off the factory connector and install a matching pair (if warranty allows).
- Use the right crimping tool. Don’t use pliers or a generic crimper. You need a ratcheting crimper specifically designed for solar terminals.
- Crimp carefully: Strip the wire cleanly, insert it fully, and crimp until the ratchet releases. Do a firm tug test—if the pin comes off, fix it now, not later.
If you are confused about the specific insulation requirements for these high-voltage connections—especially regarding the difference between USE-2 and PV Wire standards—I recommend reading our comparison on what are the types of solar cables.
5. Conduit and Transitions
Eventually, the DC runs must transition from the roof to the inverter, typically involving conduit.
Wet Locations
The National Electrical Code (NEC) defines the interior of a conduit in an outdoor location as a Wet Location. This is physically accurate; condensation is inevitable. I have opened conduits that were sealed for a decade and drained significant amounts of water.
Consequently, standard THHN wire cannot be used for solar DC runs inside conduit. The wire must feature insulation rated for moisture resistance (RHW-2 or PV Wire). For a deeper analysis of why standard wire fails in these conditions, refer to our comparison on choosing the right wire for solar: PV wire vs THHN wire.
Pest Protection
For ground mounts or cable runs passing through attics, rodents pose a significant threat. Squirrels and rats are known to chew on solar cable insulation, potentially causing catastrophic system failure. Use metal conduit (EMT) wherever wiring is accessible. If runs must be exposed, wire mesh guarding is essential to prevent physical damage.
6. Grounding and Bonding Requirements
Grounding is often viewed as a secondary task until a fault occurs; at that moment, it becomes the most critical aspect of the system.
- Equipment Grounding Conductor (EGC): Every metallic component on the roof—rails, panel frames, conduit—must be bonded together and connected to earth.
- Bonding Washers: In rail-based systems, we typically use WEEB (Washer, Electrical Equipment Bond) clips. These are designed to pierce the anodized coating of aluminum rails to ensure a solid electrical connection.
- Continuous runs: Minimize splices in your grounding wire to reduce failure points.
Pro tip: Don’t use bare copper for rooftop grounding. It can cause galvanic corrosion with aluminum rails. Use tinned copper or insulated green wire instead. For more guidance on choosing reliable materials, check out our list of the leading 7 solar cable manufacturers worldwide and explore more solar solutions at ZW CABLE.
7. Final Testing
You are done wiring. Do you flip the switch? Not yet.
Check polarity: While basic, reverse polarity remains a frequent error. Check every single string with a multimeter to ensure Positive is Positive and Negative is Negative. Reverse polarity can instantly destroy an inverter.

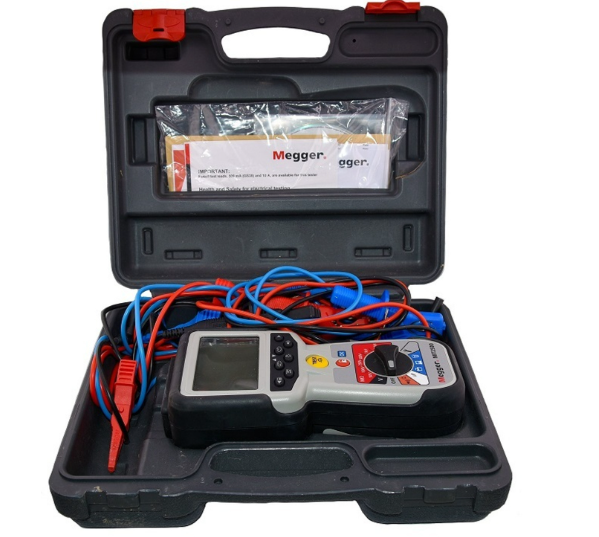

Insulation integrity: Use a Megger to test insulation. By sending a high-voltage pulse through the cable, a Megger test can detect if you accidentally nicked the insulation when pulling it through the conduit. Finding that nick now takes 10 minutes to fix. Finding it in 3 years when the system starts tripping GFDI (Ground Fault Detection Interruption) errors will take three days of troubleshooting.
Final Thoughts
Solar cable installation is all about details. Remember, a cable on a roof faces a tough life—sun, heat, wind, and moisture. Prioritize cable management, use the right tools, and double-check every connection. Never assume a connection is secure just because it clicks into place. By focusing on these “small” steps, you’ll ensure your solar system runs safely and reliably for decades to come.
