What is a shielded cable?
Shielded cable is a cable with a conductive shield around the insulated conductors or cable core to reduce the effect of external electromagnetic interference. Its purpose is to improve signal stability where nearby electrical noise can couple into the circuit and affect control, measurement, or communication performance.
A shielded wire should not be evaluated by the word “shielded” alone. Its real value depends on the shield structure, the signal type, the installation route, and whether the system can maintain shield continuity after termination. That is why it makes sense to look first at how the shield is built and then at where that construction is actually useful.
For a more detailed screened cable, you can click on our article Screened Cable Meaning and Differences.
Shield structure and basic construction

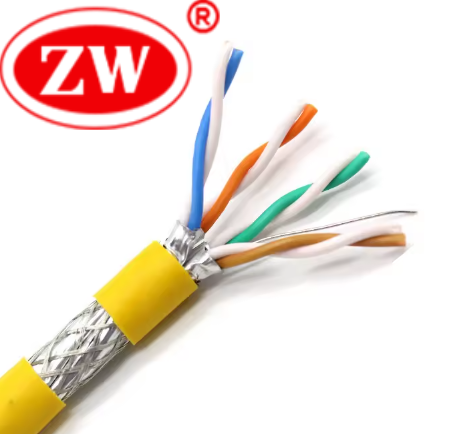

A shielded electrical cable adds a conductive layer around the insulated conductors to control external electromagnetic interference. In practical cable design, shield cable types are usually built as foil, braid, or a foil-braid combination. Foil is commonly used where high coverage and compact construction are required, while braid is more suitable where the cable also needs better mechanical strength or flex durability.
In control and instrumentation cable, the shield may be applied over the full cable or over individual pairs. Overall shielding is typically used to reduce external noise affecting the cable as a whole, while individual pair shielding is more suitable when signal isolation between circuits is important. Some constructions also include a drain wireto support shield bonding and termination.
For buyers, the key point is simple: shielded cable should not be judged only by the word “shielded.” The practical questions are what type of shield is used, whether the design is overall or pair-level, and whether the construction matches the signal type and installation environment.
What is Shielded Cable Used For?
Shielded electrical wire is used where electrical noise can affect signal accuracy, communication stability, or control reliability. Typical examples include instrumentation loops, analogue signals, PLC I/O, encoder feedback, thermocouple extension, sensor circuits, and communication wiring routed near motors, VFDs, switchgear, relays, transformers, or power feeders. In those applications, the main goal is not “better cable” in a generic sense. It is a lower risk of unstable readings, data errors, intermittent faults, and difficult commissioning.
For B2B buyers, shielded wire cable is therefore a risk-control specification. It is most useful when EMI exposure is real and when the cost of unstable performance is higher than the added material and installation cost.
What Is Unshielded Cable?
An unshielded cable does not include a metallic shield around the conductors or cable core. Instead, its performance depends more on conductor arrangement, pair balance, twisting, insulation quality, and correct routing. In many installation scenarios, it is the technically correct and commercially efficient option.
To understand why, it helps to look at its construction and why it remains widely used in practical projects.
Basic Construction of Unshielded Cable
An unshielded cable typically includes a conductor, insulation, optional fillers, and an outer jacket. In twisted-pair designs, conductor geometry and lay length help control cross-talk and noise pickup without a metallic shield. Because there is no shield layer, non shielded cable is usually smaller in diameter, lighter in weight, and easier to bend, strip, and terminate. In practice, that improves tray fill, reduces conduit difficulty, and makes field termination more consistent.
Why is unshielded cable still widely used
Unshielded cable remains widely used because many projects do not require shielding to perform reliably. In low-noise environments, with sensible cable separation and routing, unshielded cable can operate very well for years. ZW points out that UTP is easier to install, less expensive, and often entirely sufficient where EMI is limited. That is why unshielded designs remain common in commercial buildings, internal equipment wiring, general control circuits, and many network installations.
Difference Between Shielded and Unshielded Cable
The difference between shielded and unshielded cable is not limited to one construction feature. It affects electrical performance, installation practice, flexibility, routing difficulty, and total installed cost.
Difference in construction
The most direct difference is the presence of a conductive shield. Cable shielding includes foil, braid, or both. Unshielded cable does not. That additional layer changes cable diameter, weight, bend behaviour, and sometimes the accessories needed to preserve performance. In large projects, these factors can affect gland size, pulling effort, tray fill, and panel layout.
Difference in EMI protection
Shielded wire cable provides more protection in electrically noisy environments because the shield helps control how external electromagnetic energy interacts with the conductors inside. Unshielded cable relies more heavily on balanced construction, twisting, and routing discipline. In a clean environment, that can be fully adequate. In a plant area with strong interference sources or long parallel runs beside power conductors, the available margin is smaller.
Difference in installation requirements
Shielded cable is less forgiving during installation. The shield must remain continuous, and the system has to be treated as a complete electrical path rather than only a cable length. ZW states that shielded cable will only be grounded properly if shielded jacks and couplers are also used.
Difference in cost and flexibility
Shielding for cables normally cost more because it uses more material and usually requires more installation care. ZW notes that shielded cable is stiffer, less flexible, and larger in diameter. Unshielded cable is generally easier to pull, easier to terminate, and more economical.
How Shielding Affects EMI and Signal Performance
Wire Shielding matters because EMI is a real installation problem, not a theoretical one. The effect of interference depends on both the electrical environment and the vulnerability of the signal being transmitted. Understanding where that interference comes from and how the shield works is essential for selecting the right cable.
Common sources of EMI in real projects
In practice, EMI problems often do not appear as total failure. More often, they show up as drift, intermittent communication loss, false triggering, erratic feedback, or control issues that are difficult to trace. That is why cable selection should be tied to the actual installation environment, not only to the nominal voltage or signal type named on the drawing.
How a shielded electric cable works
Electrical wire shielding works by creating a conductive barrier around the internal conductors and helping control how external noise interacts with the signal path. It can reduce the coupling of unwanted electrical noise into the circuit, especially in installations where nearby equipment generates persistent interference.
However, its real effectiveness depends on the cable design, the quality of the shield termination, the routing path, and the consistency of installation. A shielded wire installed poorly may not perform as expected. That is why shielding should be selected for a defined reason, not used as a default substitute for proper layout and installation discipline.
When to choose shielded cable?
Choose shielded cable when the installation has real exposure to interference or when signal stability is critical to the application. That includes high-EMI industrial areas, long runs near power circuits, and sensitive circuits such as instrumentation, thermocouple extension, analogue measurement, encoder feedback, and certain communication systems.
High-EMI industrial environments
Shielded cable is recommended in factories, process plants, motor control areas, drive systems, and equipment installations where power devices generate persistent electrical noise. It is also strongly justified when signal or control wiring must run near power cables, drives, or switching equipment for long distances.
Sensitive signal applications
Wire shielding is also the safer choice for circuits that are sensitive to interference, such as instrumentation, analogue measurement, encoder feedback, and certain communication systems.
When Is Unshielded Cable the Better Choice?
Unshielded cable is the better choice when the environment is clean enough that shielding adds cost and complexity without adding meaningful technical value. This decision is often correct in projects where routing is controlled, EMI exposure is limited, and installation efficiency matters more than additional noise protection.
Low-Noise Installations
In office networks, commercial buildings, and internal machine wiring with limited EMI exposure, unshielded cable often provides the required performance without the added installation burden of shielding.
Projects That Need Lower Cost and Easier Installation
Where the electrical environment allows it, unshielded cable is often the more efficient and commercially sound choice because it reduces material cost, termination time, and routing difficulty.
Conclusion
The difference between shielded and unshielded cable is a practical engineering decision based on EMI exposure, signal sensitivity, routing conditions, installation quality, and total project cost. In noisy environments or in circuits that cannot tolerate unstable signal conditions, shielded cable is often the safer specification. In cleaner installations, unshielded cable is often the more efficient choice because it simplifies routing, termination, and cost control without sacrificing performance.
For OEMs, distributors, contractors, and industrial buyers, the best decision comes from matching the cable construction to the real installation environment rather than defaulting to a higher-cost option. ZW Cable supports customers with application-based cable selection so the chosen cable is not only suitable on paper, but also practical to install and reliable in service.
FAQ
Q: How do I know whether my application really needs a shielded cable?
A: Use shielded cable when the route is close to VFDs, motors, switchgear, relays, or power cables, or when the circuit carries low-level or noise-sensitive signals such as instrumentation, encoder feedback, or analog signals. In cleaner environments, unshielded cable is often enough.
Q: Can unshielded cable work in industrial environments?
A: Yes, if EMI is limited, routing is controlled, and the signal is not highly sensitive. It becomes a weaker choice when the cable must pass through noisy plant areas or run close to major interference sources.
Q: What is the difference between foil and braid shielding?
A: Foil shielding gives high coverage and is common in signal and data cables. Braid shielding is mechanically stronger and better suited to applications where durability or repeated movement matters.
Q: What problems can happen if I use unshielded cable in a high-EMI environment?
A: Typical problems include unstable readings, intermittent communication loss, false triggering, erratic feedback, and harder troubleshooting during commissioning.
Q: Can unshielded cable be used near motors, VFDs, or power cables?
A: It can in some cases, but it is usually not the preferred option for long runs near strong noise sources. The closer the cable is to motors, drives, or power conductors, the stronger the case for shielding.
