When it’s time to replace a vehicle’s battery cable, you’ll likely run into options like SGT and SGX. Although their names are similar, they perform very differently when faced with the constant heat, vibration, and oil inside an engine bay. Understanding what sets them apart is crucial for picking the right one for your vehicle, whether you’re working on a daily driver, a high-performance machine, or a heavy-duty truck.
What SGT and SGX Actually Mean
Both SGT and SGX are part of the SAE J1127 battery cable standard. They’re designed for low-voltage DC power circuits such as starters, alternators, ground leads, and battery interconnects. The main difference lies in the insulation material and its performance under stress.
SGT Cable: It uses Polyvinyl Chloride (PVC) insulation, a thermoplastic material that is economical and flexible at room temperature.
SGX Cable: This is the heavy-duty option. It features Cross-Linked Polyethylene (XLPE) insulation, a thermoset material engineered for superior durability.
In practice, the decision often comes when someone says:
“Standard cable worked fine, but this engine bay runs hot,” or “The PVC jacket hardened near the turbo.” That’s when SGX enters the picture.

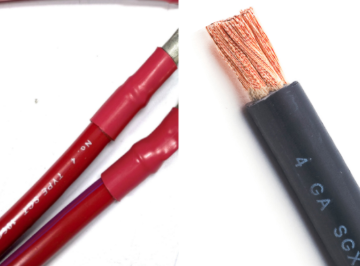

SGT vs SGX: Specs, Size, and Performance
The real-world difference between these cables comes down to how their insulation handles heat, chemicals, and physical abuse over time.
SGT cable is the most common and economical type of battery cable you’ll find. Its PVC insulation is a thermoplastic, which means it softens when heated and hardens when cooled.
- Temperature Rating: Typically rated up to 80°C or 105°C.
- Performance: SGT cable is perfectly adequate for standard passenger vehicles where the cables are routed away from extreme heat sources like the exhaust manifold. It’s easy to work with and provides reliable performance in moderate conditions.
- The Downside: In a high-heat engine bay, repeated thermal cycles can cause the PVC insulation to harden and become brittle over time, leading to cracks and potential failure. It is also less resistant to abrasion and chemical damage compared to its thermoset counterparts.
SGX cable is a significant upgrade, designed for vehicles that run hotter or work harder. Its XLPE insulation is a thermoset, meaning its molecular structure is permanently set (or “cross-linked”). When exposed to extreme heat, it won’t melt or drip like PVC; instead, it will char while maintaining its insulating properties, offering a critical safety advantage.
- Temperature Rating: Rated up to 125°C (257°F).
- Performance: It offers superior resistance to heat, abrasion, and automotive fluids. This makes it the preferred choice for high-performance engines, heavy-duty trucks, and any engine compartment where cables are routed near turbos or exhaust components. Its robust nature means a longer service life in harsh conditions.
- The Trade-Offs: SGX is more expensive and its insulation is slightly stiffer and thicker than SGT for the same gauge size. This means you may need to double-check that your terminal lugs and grommets can accommodate its slightly larger outer diameter.
SGR cable fills a unique niche where maximum flexibility is the top priority. Its EPDM rubber insulation gives it a supple, easy-to-bend quality.
- Temperature Rating: Typically rated to 105°C.
- Performance: SGR is prized for its exceptional flexibility, making it incredibly easy to route in tight, complex spaces or on applications with high vibration. It also offers excellent moisture resistance, making it a popular choice for marine applications, RVs, and welding leads.
- The Limitations: While more flexible, SGR’s EPDM insulation doesn’t offer the same level of abrasion or peak heat resistance as SGX’s XLPE. Prolonged exposure to certain oils can also cause EPDM to swell or degrade more quickly than XLPE.
Quick rules of thumb:
Max heat and fluid resistance → SGX
Maximum flexibility in damp/mobile assemblies → SGR
Cost-effective performance in standard bays → SGT
How to Choose—And When to Go Custom
Buyers often have the right instinct but lack a structured checklist. Use the following to lock in the correct selection the first time and decide whether you need Custom battery cables.
Where will the cable live?
- High Heat: Is the cable routed near the exhaust manifold, a turbocharger, or in a cramped, modern engine bay with poor airflow? If so, the heat will quickly degrade standard SGT insulation. This is SGX territory. Its 125°C rating is designed for exactly these conditions.
- Chemical Exposure: Will the cable be exposed to frequent oil, diesel fuel, or coolant spray? While all three types offer some resistance, XLPE insulation (SGX) provides the best long-term protection against chemical degradation.
- Vibration and Tight Bends: Does the cable need to snake through a complex route with sharp turns? Is it for a high-vibration diesel engine? Here, SGR is an excellent choice due to its superior flexibility, which makes installation easier and reduces strain on the connections.
Balance Cost vs. Uptime
- For a personal daily driver where the cable is in a cool, protected location, the economical SGT cable is often a perfectly sensible choice. It meets the required standards and will get the job done without over-engineering the solution.
- However, for commercial or mission-critical vehicles, the math changes. For a fleet truck, a piece of construction equipment, or a commercial fishing boat, the cost of unplanned downtime caused by a failed battery cable far exceeds the price difference of upgrading to a more durable cable. In these scenarios, investing in SGX is a smart financial decision. Paying a little more upfront for a cable that resists heat and abrasion better means preventing a costly breakdown and repair down the road.
Consider the Application—Especially for Marine Use
While SGT, SGX, and SGR are primarily automotive cables, their properties make them suitable for other applications, with one major caveat: marine environments. The combination of saltwater, moisture, and vibration is uniquely corrosive.
For boats, you should always use a marine-grade battery cable that meets UL 1426, ABYC, and USCG standards. The key feature of these cables is the use of tinned copper conductors. Each copper strand is coated in tin, which provides excellent protection against corrosion in saltwater environments—something that standard bare copper cables lack.
Decide on Terminations—and When to Specify Custom battery cables
Once you’ve chosen the right type of cable, the final step is connecting it. Pre-terminated assemblies reduce installation error and compress build time. Consider Custom battery cables when you need:
- Crimped lugs with controlled pull-out values and heat-shrink strain relief
- Precise lengths to trim voltage drop and eliminate slack that rubs on metalwork
- Labeling and color coding (e.g., red/black sets, serial tags for maintenance)
- Mixed constructions within one system (SGX near heat, SGT/SGR on cooler segments)
- Tinned copper for marine corrosion resistance
Custom builds also help when switching families (SGT → SGX): the slightly larger OD and jacket hardness can change lug selection and die settings. A supplier who builds daily will select the correct barrels, dies, and crimp geometry so your install is plug-and-play.
FAQs
1) Can I replace SGT with SGX without re-engineering the circuit?
Yes—electrically, both live in the same low-voltage battery domain. The key checks are outer diameter (for grommets and lugs) and bend radius/route. Expect SGX to be slightly larger in the same AWG due to thicker insulation.
2) Which lasts longer in hot engine bays—SGT or SGX?
SGX. The XLPE jacket keeps its properties at 125 °C, resists oil, and handles abrasion better. In repeated heat-soak scenarios, SGX typically extends service life and reduces unplanned maintenance.
3) Is SGR a direct substitute for SGX?
Not exactly. SGR Cable (EPDM) excels in flexibility and moisture resistance at around 105 °C, while SGX pushes higher heat tolerance (125 °C) and chemical/abrasion resistance. Choose based on the dominant risk: tight routing and motion (SGR) vs sustained heat and fluids (SGX).
By taking a moment to assess your vehicle’s specific needs, you can select a cable that not only restores power but also provides lasting peace of mind.
